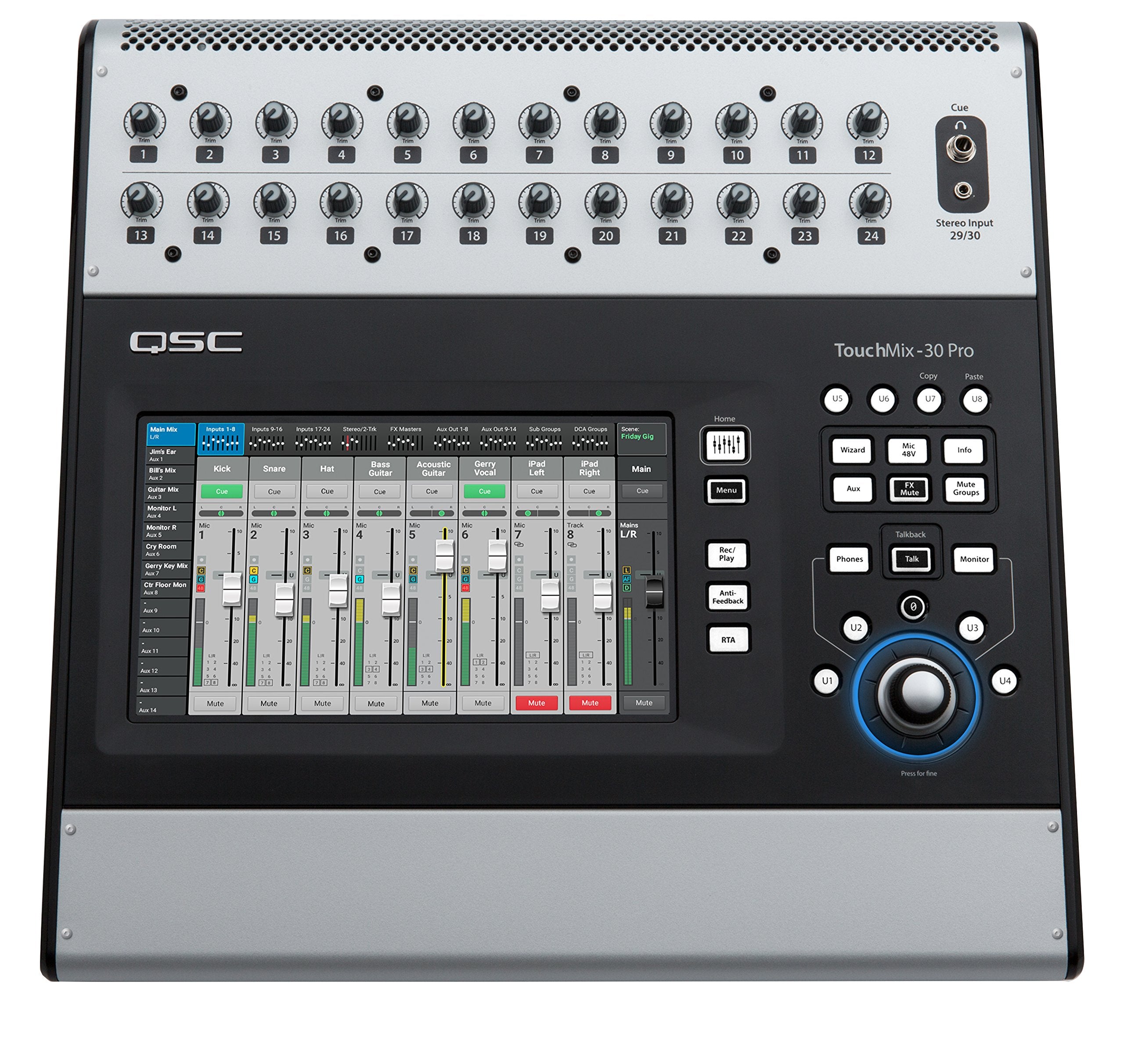

QSC TouchMix-30 Pro | 32 Channel Professional Digital Mixer

The QSC TouchMix-30 Pro sets a new benchmark for superior performance and flexibility in a compact digital mixer. Designed to cater to the needs of experienced professionals, musicians, bands, and live performance venues, this impressive mixer boasts 32 mixing channels, including 24 Mic/Line inputs, 6 Line inputs, and a Stereo USB input. Its 16 outputs provide immense signal management versatility, making it a comprehensive solution for a range of audio mixing scenarios.

At the heart of the TouchMix-30 Pro is a user-friendly 10-inch multi-touch touchscreen that facilitates an intuitive workflow, allowing users at any experience level to achieve great results quickly and effortlessly. The integrated Anti-Feedback and Room Tuning Wizards streamline complex equalization tasks, while the dual real-time analyzers (RTA) offer instantaneous channel tonal balance and room response feedback. The mixer’s capabilities are further extended with features such as a touch-and-route Patch Matrix, eight sub-groups with extensive EQ and limiter options, and a powerful 32-channel direct-to-hard drive recording and playback system.

The TouchMix-30 Pro is also equipped with a 32-Channel DAW interface for seamless integration with Mac computers, enabling bidirectional I/O with popular workstation software. It supports MP3 playback directly from USB and comes with over 120 live instrument, microphone, and audio source presets, ensuring mix-ready channel settings. With the added benefits of studio-quality effects, pristine audio from 24 class-A microphone preamps, and comprehensive output processing, the TouchMix-30 Pro is a powerhouse of innovation and functionality in a compact design.

Key Features

• Large 10-inch multi-touch touchscreen
• Anti-Feedback and Room Tuning Wizards
• Two real-time analyzers (RTA) for channel tonal balance and room response
• 32-channel direct-to-hard drive recording and playback
• 32-Channel DAW interface with Mac computers
• MP3 playback direct from USB
• 24 class-A microphone preamps
• Over 120 live instrument, microphone, and audio source presets
• Extensive output processing including graphic and parametric EQ, limiters, delay, and notch filters
• Eight sub-groups with adjustable EQ and limiter options
• Six stereo effects processors plus pitch-correct
• Touch-and-route Patch Matrix

Specifications

• Display: 10″ diagonal, 1024 x 600 pixel, color TFT, capacitive multi-touch
• Inputs: 32 Total (24 Mic/Line, 6 Line, 2 Stereo USB/MP3 playback)
• Outputs: Main L/R (XLR line-level), 14 Aux (XLR line-level), Stereo In-Ear Monitor (TRS), Stereo Cue (TRS), Monitor L/R (XLR line-level)
• Digital Connections: 2 USB A, 1 USB B, 1 RJ-45
• Mic and Line Input Channel Processing: 4-band Parametric EQ, Gate, Compressor, Delay
• Output Channel Processing: 1/3 octave GEQ, 6-band Parametric EQ, Limiter, Delay
• Recording/Playback: 32 x 32 tracks direct to hard drive or DAW
• Effects: 6 Simultaneous Professional Effects, 1 Pitch Correct
• Wi-Fi: Requires user-supplied USB Wi-Fi dongle or external Ethernet Wi-Fi router
• Dimensions: Mixer only: 7.5 in X 16.9 in X 18.1 in; Shipping: 12 in X 23.7 in X 19.5 in
• Weight: Mixer: 17.5 lb; Shipping: 25.2 lb
• Line Voltage/Input Power Requirements: 85 W, 100-240 VAC, 50-60 Hz
• Sampling Frequency: Selectable 44.1 kHz or 48 kHz
• THD: < 0.005%
• Frequency Response: 20 Hz-20 kHz +/- 0.5 dB
• Dynamic Range: 105 dB
• Phantom Power: 48 v, innavidually switchable per input

Package Contents

• QSC TouchMix-30 Pro Digital Mixer
• Power Cable
• User Manual
