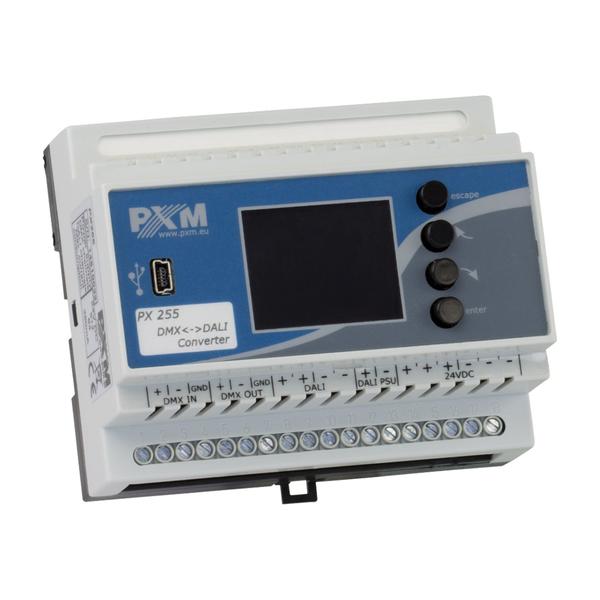

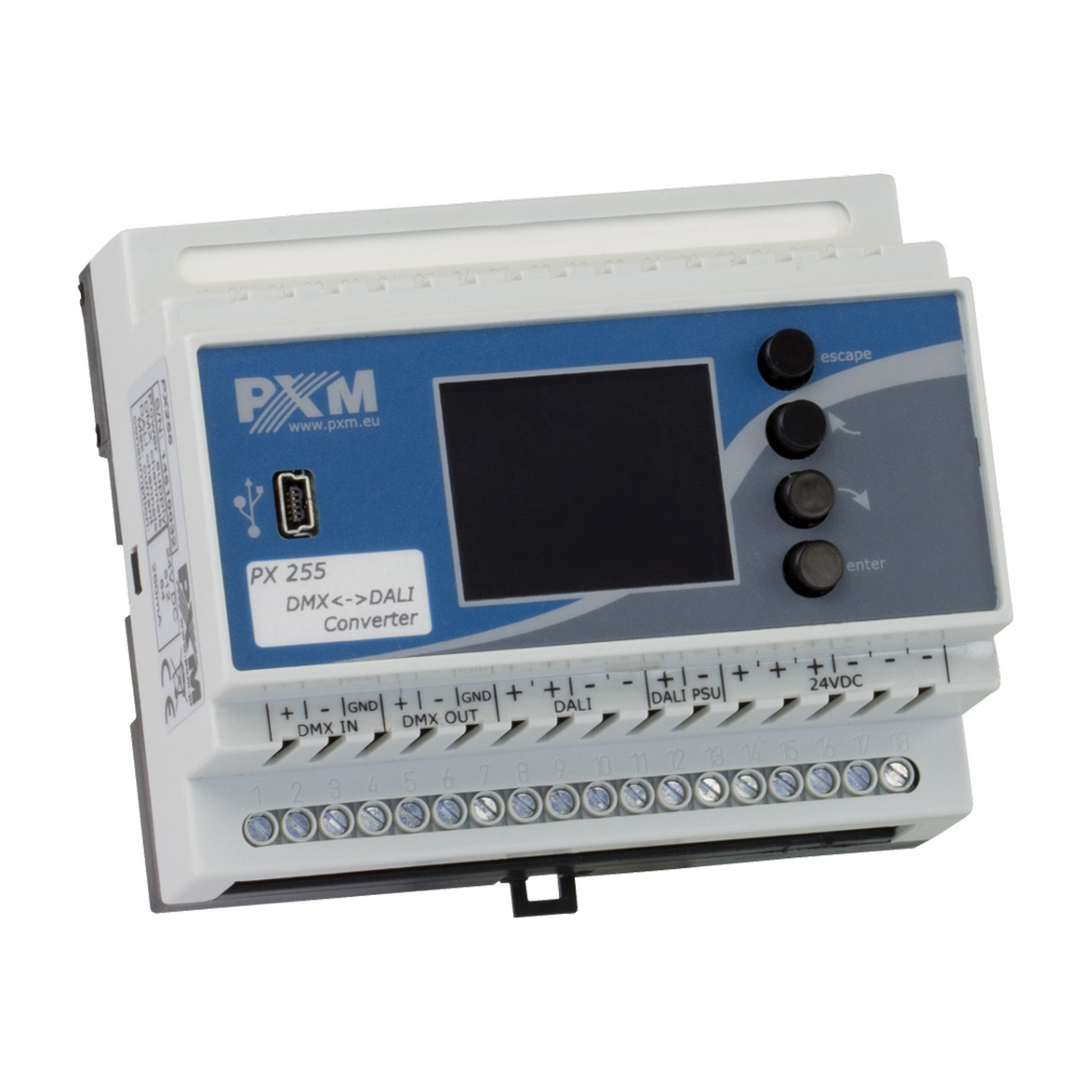

PXM PX255 1-Channel Bidirectional DMX/DALI Converter

Exploring the Powerful Features of the DMX-DALI-DMX Interface
The DMX-DALI-DMX Interface is a powerful tool that enables users to combine dynamic light systems that operate on the DALI protocol with those that use DMX-512 control. With this interface, you can connect DMX-512 devices to the DALI protocol, or connect DALI devices to DMX-512 standard controllers. As per the DALI specification, the PX255 can control up to 64 DALI devices, including ballasts. The device menu allows users to address innavidual lamps or groups of devices, and create up to 16 groups.

In addition, the interface provides a range of customizable parameters for each lamp. These parameters include the minimum and maximum brightness of the lamp, the time required for the lamp brightness to reach its maximum value (‘fade time’), the number of steps required to achieve maximum brightness (‘fade rate’), or the brightness of each lamp in the event of a control system failure.

The device is powered with 24V DC and comes in a housing of six innavidual rail modules width, suitable for mounting on 35 mm wide DIN rails.

Key Features

• Bidirectional DMX / DALI converter named PX255.
• Fuses dynamic light systems based on DALI protocol with DMX-512 control systems.
• Allows connection of DMX-512 devices in the DALI protocol and vice versa.
• Controls up to 64 DALI devices such as ballasts per DALI specification.
• Features a device menu for innavidual device or grouped device addressing.
• Supports creation of up to 16 groups.

Technical Specifications

DMX IN/OUT lines
1/1
DMX IN/OUT channels
512/512
DALI IN/OUT channels
64/64
Power Supply
24 V DC
Power Consumption
max. 7 W
Weight
0.19 kg
Dimensions
105 (6 DIN rail modules) x 85 x 58 mm
