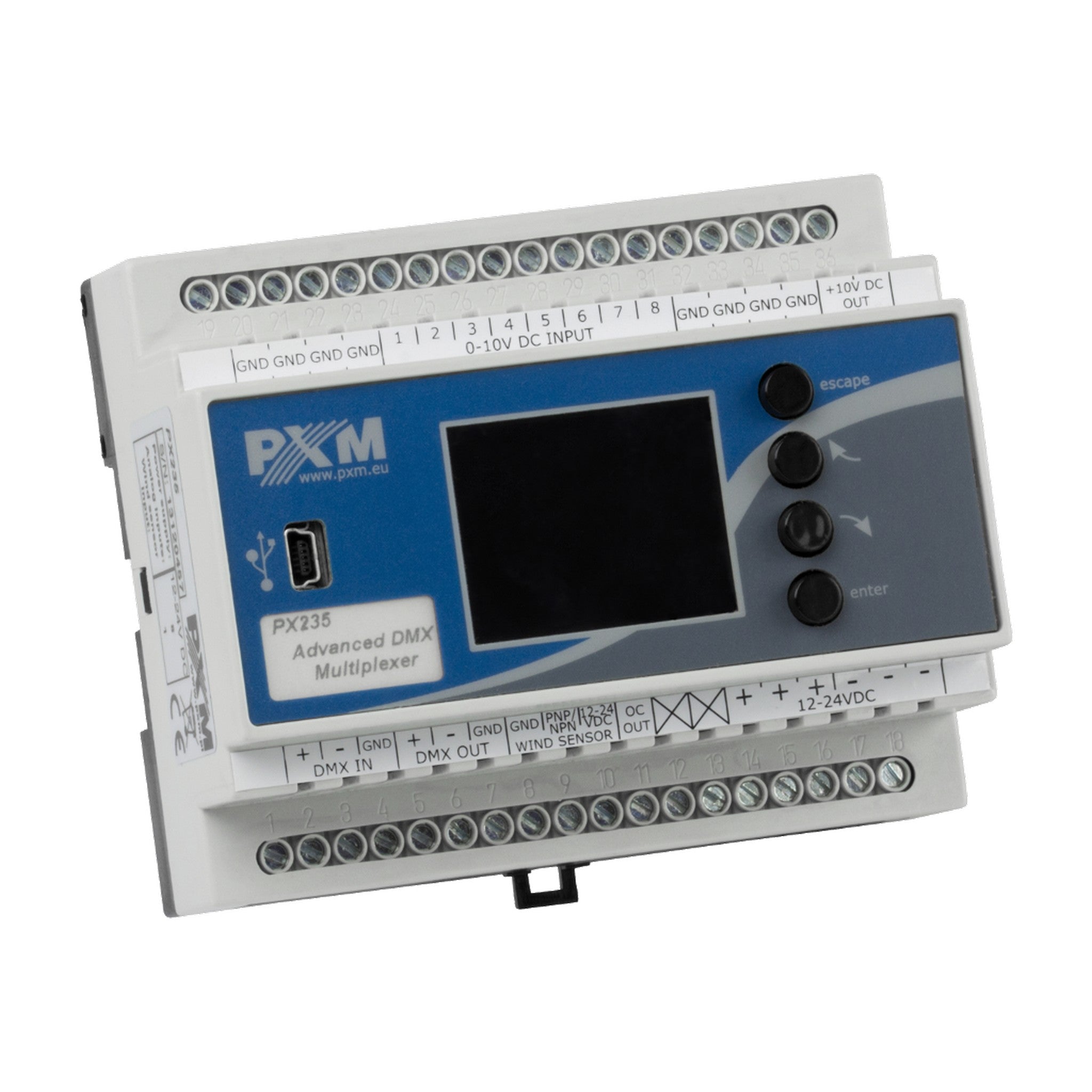

PXM PX235 1/1 Advanced DMX Multiplexer

Introducing the Advanced DMX Multiplexer
The Advanced DMX Multiplexer is a device that is designed to convert analog signal 0-10V to DMX-512 signal. It is a professional device that receives input analog signals and converts them into digital form, which is then sent as a standard DMX-512 signal. The PX235 supports up to 8 analog inputs 0-10V, and enables you to select a channel from the DMX512 package, where the processed signal is inserted.

The PX235 features a single input and output of the DMX signal, and a built-in color display that makes it easy to navigate and provides basic information on the state of the signal. Additionally, the device has a built-in support for wind sensors, which allows the conversion of pulse signal to digital values of the DMX512 signal. The Advanced DMX Multiplexer also has an OC output (Open Collector) that enables the signaling of states such as changes in wind speed in the form of alarms. For example, it can be used to reduce the amount of water flow (in collaboration with the PX140 controller).

The device also has a built-in 10V output that can supply analog sensors such as potentiometers and photometers. Furthermore, the USB connector allows you to update the software installed on the PX235 and communicate with the computer.

Key Features

• The PX235 is an advanced DMX Multiplexer, notable for converting analog 0-10V signals into the DMX-512 format.
• Converts received input analog signals into digital, dispatching as standard DMX-512 signal.
• Equipped for data reception from 8 analog inputs 0-10V, converting to DMX signal.
• Provides channel selection from the DMX512 package for signal processing.
• Features a single input and output of the DMX signal.
• User-friendly with a built-in color display, facilitating operation and providing signal status.
• Supports wind sensors, enabling the conversion of pulse signal into digital DMX512 values.

Technical Specifications

DMX IN/OUT lines
1/1
0-10V IN/OUT ports
8/1
0-10V input resistance
100 kΩ
0-10V output load capacity
50 mA
OC outputs
1
OC output load capacity
0.5 A
Output Connectors
screw terminals, USB
Power Supply
12 – 24V DC
Maximum Current Consumption
150 mA for 12V DC
90 mA for 24V DC
Power Consumption
max. 3 W
Dimensions
105 (6 DIN rail modules) x 85 x 60 mm
