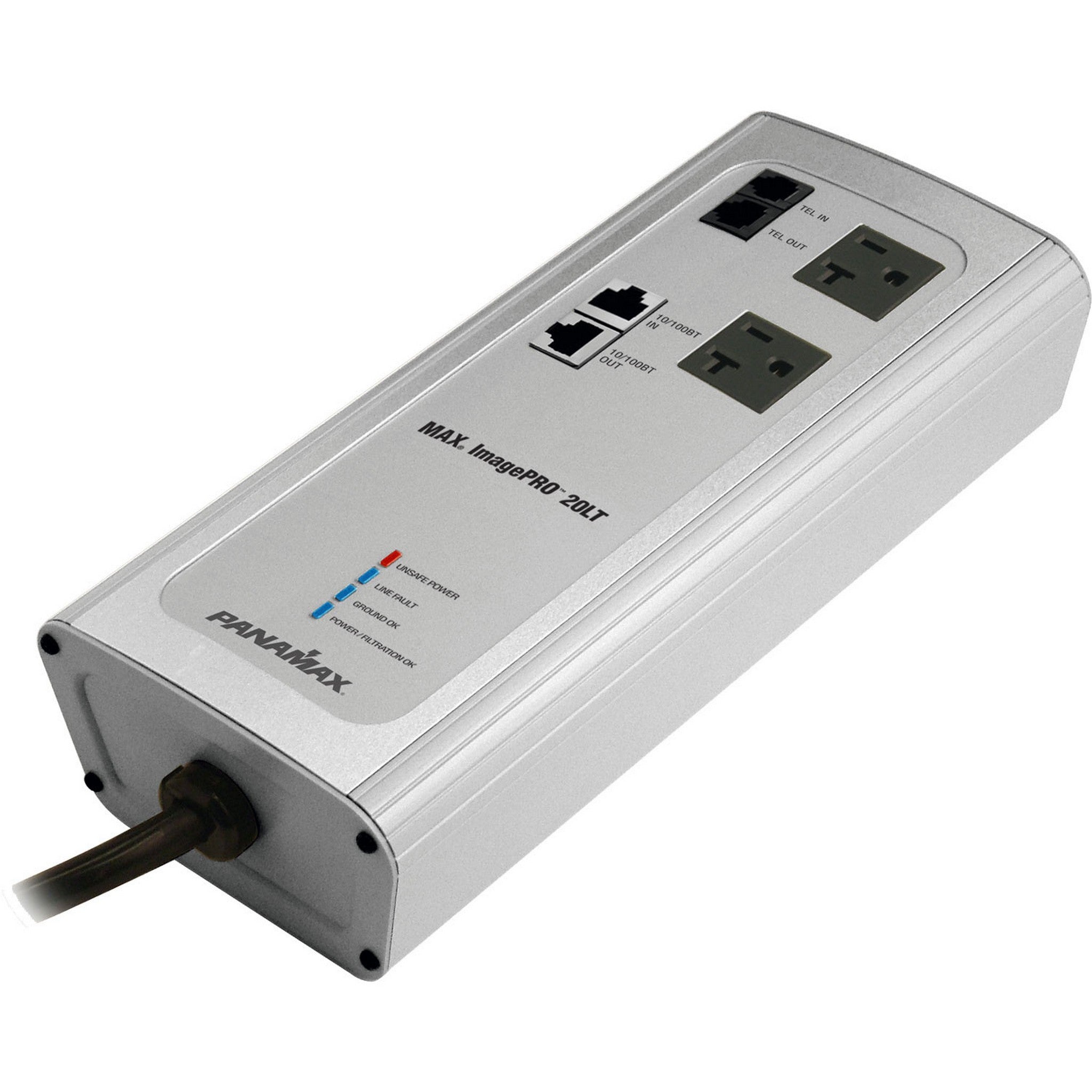

Panamax MAX Image Pro LT 20 Amp Power Conditioner

The Panamax MAX Image Pro LT 20 Amp (MIP-20LT) is a premium power conditioner designed to safeguard your sensitive electronic equipment from harmful electrical surges and interference. Engineered with advanced surge protection, noise filtration, and automatic voltage monitoring, this unit ensures that your valuable gear operates at peak performance while remaining safe from power-related hazards. Whether you are a home theater enthusiast or rely on professional audio-visual equipment, the MIP-20LT provides a reliable and powerful solution for protecting your devices.

With its unique Protect or Disconnect™ circuitry, the MIP-20LT ensures total protection during severe electrical surges, including lightning strikes. This innovative technology disconnects AC power entirely in the event of a catastrophic surge, preventing potential damage to your equipment. Additionally, the unit features a FireWall for Noise™ that filters out EMI/RFI interference, enhancing the quality of your digital signals and ensuring clean, clear performance without disruptions.

For added convenience, the MIP-20LT offers integrated telephone line protection and Ethernet protection. The unit supports both RJ-11 and RJ-45 connectors to protect against voltage spikes from your phone lines and network cables. The Automatic Voltage Monitoring (AVM) system automatically detects unsafe voltage levels, cutting power when necessary and reconnecting once the voltage is safe. This makes the MIP-20LT a crucial addition to any setup that demands consistent, reliable power for all connected devices.

Key Features

• AVM (Automatic Voltage Monitoring): Protects against over and under voltage conditions.
• FireWall for Noise™: Enhanced Neutral-to-Ground Noise Filtration for digital equipment.
• Protect or Disconnect™ Circuitry: Disconnects power in the event of catastrophic surges.
• Telephone Protection: RJ-11 connectors for phone line surge protection with optimized circuitry.
• Ethernet Protection: Protects 10/100/1000BASE-T network connections via RJ-45 connectors.
• GFCI Compatibility: Designed to be compatible with GFCI circuits per NEC article 250.6.
• Filtration: Provides high levels of EMI/RFI noise filtration for enhanced signal quality.
• Indicators: Shows the status of power, filtration, wiring fault, and ground connection.
• Security Lock: Prevents theft with included security feature.

Technical Specifications

Dimensions: 13.25″ x 8.625″ x 3.125″
Weight: 5.25 lbs
Line Voltage: 120VAC, 50/60Hz
Maximum Current Rating: MIP-15LT – 15A, MIP-20LT – 20A
EMI/RFI Noise Filtration: 65 dB (100KHz – 1 MHz)
Thermal Fusing: Yes
AVM (Automatic Voltage Monitoring): Yes
Overvoltage Shutoff: 138V ± 8V
Undervoltage Shutoff: 86V ± 6V
Protect or Disconnect™ Circuitry: Yes
Single Pulse Energy Dissipation: 1650 Joules
Peak Impulse Current: 52,000 Amps
UL 1449 3rd Edition Protection Rating: 400V
Protection Modes: L-N, L-G, N-G
Initial Clamping Level: 200 Volts
Surge Response Time: <1 nanosecond
Telephone Protection: RJ-11/45, pins 4,5
Clamping Level (Telephone): 260V
Capacitance (Telephone): 30pf (approx.)
LAN Protection: RJ-45, pins 1-8
Clamping Level (LAN): 62V
TIA-568-C.2 Performance: CAT5e
Wiring Fault Safety Shutoff: Yes

What’s Included

• Panamax MIP-20LT Power Conditioner
• Two Telco cables
• Security lock
• Eight foot power cord
