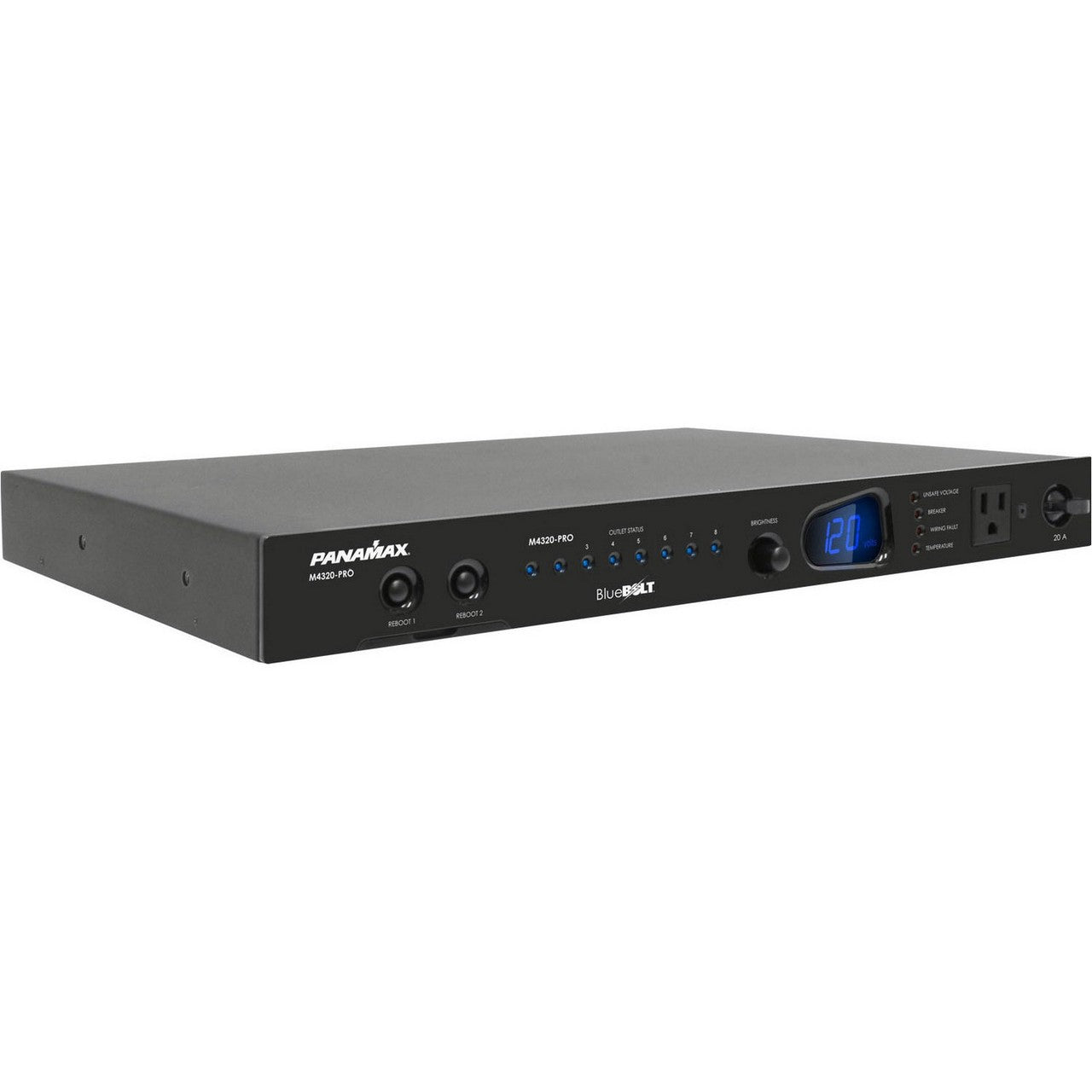

Panamax M4320-PRO 8 Outlet 20 Amp BlueBOLT Programmable Power Conditioner

The M4320-PRO features Panamax revolutionary AVM (Automatic Voltage Monitoring) circuit, and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our customers have come to expect from Panamax: uncompromised AC protection and purification. Outlets: all rear panel outlets are separately controlled. They are grouped into four (4) filter-isolated banks. BlueBOLT is included, providing secure, hosted IP system control and monitoring for the M4320-PRO.

Key Features

• 20 Amp Capacity M4320-PRO
• 8 Innavidually Controllable Rear Panel Outlets
• Fully Programmable
• TCP/IP (BlueBOLT) Installed
• RS-232 Card (Included, not installed)
• Linear Filtration with 3 Isolated LiFT Filter Banks, 76db (5 kHz – 250 kHz), 46 db (250 kHz – 1 MHz)
• One Isolated Filter Bank for High Current Devices, 60db (5 kHz – 450 kHz), 46 db (450 kHz – 1 MHz)
• Front Panel Circuit Breaker
• Removable Front Rack Ears
• 12 Volt Input Triggering
• Detachable 10 ft. Power Cord – 20A plug
• AVM & Protect-or-Disconnect Circuitry

Technical Specifications

Family
Pro Series
Line Voltage
120 (Volts)
Number of Outlets
9
Number of Isolated Banks
4
Outlet Descriptions
1 (always on, linearly filtered outlet, front panel)
6 (innavidually switchable, linearly filtered outlets)
2 (innavidually switchable, high current outlets)
Rack Mountable
Yes
Rack Ears Included
Yes
Front Panel Meter(s)
Volts/Amps Combo Meter
Front Media Light(s)
No
Control
Full outlet control using BlueBOLT or Telnet commands. Limited outlet control through front panel buttons or rear panel DC trigger.
Voltage Regulation
No
Compliancec
CSAus
USB Charging
N/A
Low Voltage Trigger
12V In
AC Power Cord
10 ft. detachable cord with 20 amp plug
Dimensions
19″ W (17″ without rack ears) x 12.25″ D x 1.75″ H
Weight
12 lbs
AC Protection
AC Protection Technology
Protect or Disconnect
Automatic Voltage Monitoring
L-N, L-G, N-G Protection Modes
Thermal Fusing
Under-Voltage Shutoff
100 VAC – 2 VAC
Over-Voltage Shutoff
134 VAC – 2 VAC
Maximum Current Rating
20 (Amps)
Initial Clamping Level
200V Peak
Filtration
Filtration Technology
LiFT
Filtration Rating
Banks 1, 2, 3: 76db, 5KHz – 250 kHz
Bank 4 High Current Outlets: 46 db, 250 KHz – 1 Mhz
Signal Line Protection
1 LAN
1 Tel
2 Cable/Satellite
Shipping Info
Length
19.6 (Inches)
Width
4.9 (Inches)
Height
21.4 (Inches)
Weight
17.55 (Lbs)
Unit of Measure
Each
UPC
050616008600
Master Pack Qty
2
