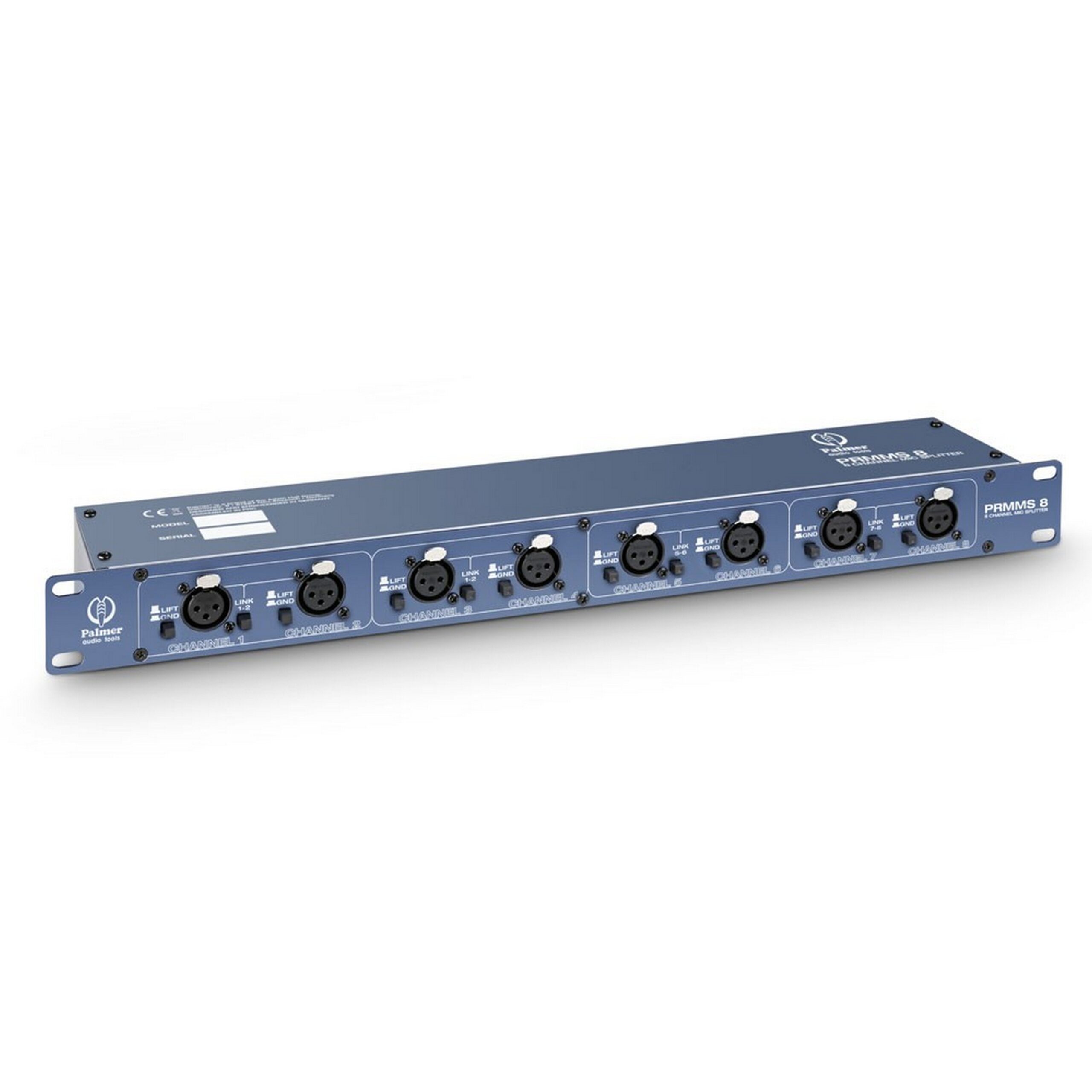

Palmer RMMS 8 8-Channel Microphone Splitter

The PRMMS8 is an ultra low noise 8-channel microphone splitter providing a direct output and a transformer isolated output for each balanced XLR input. For extra flexibility, four front panel switches enable channel linking which permits routing a single input signal to multiple outputs feeding FOH, monitor, recording and broadcast mixing consoles, or merging two input signals into a single output. For use with condenser microphones, the direct outputs serve as a path for phantom power. Each channel includes a ground lift switch to eliminate hum and interference caused by ground loops between electronic equipment connected to the PRMMS8.

Key Features

• Single space 8-channel rackmount microphone splitter
• Transformer isolated and direct outputs
• Channel pair link switches for doubling outputs or merging inputs
• Innavidual ground lift on each channel
• Suitable for phantom powered condenser microphones and DI boxes

Technical Specifications

Product type
Splitters
Type
mic split
Split type
1 in 1 +1
Channels
8
Inputs
1
Input connectors
XLR
Max. input level
+5 dBu
Number of split-outputs per canal
1
THRU outputs/channel
1
Max Output Level
+5 dBu
Output connectors
XLR
Transformer isolated outputs
Yes
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
483 mm
Width
19 “
Depth
73 mm
Height
44.5 mm
Height
1 U
Weight
1,3 kg
