Palmer PWT 12 MK 2 Universal 12-Outlet Pedalboard Power Supply

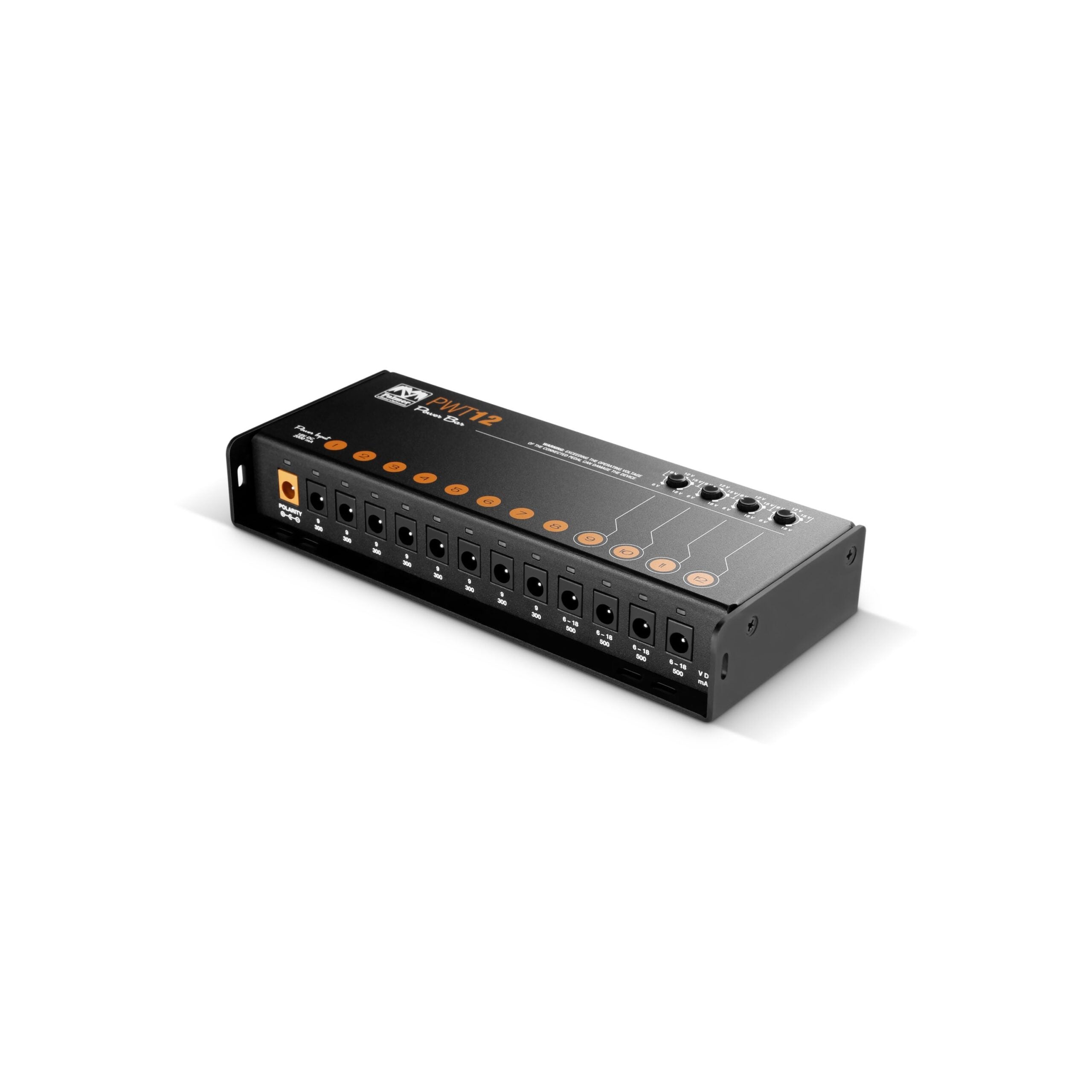

The PWT 12 is a heavy duty (2000 mA) universal pedal board power supply with 12 isolated 9 V DC, centre-negative female pin-connector outputs. Four of the outputs feature adjustable voltage from 9 to 18 volts. The variable outputs enable the simulation of voltage drop or ‘battery sag’ in old batteries. The power supply is regulated for constant voltage supply and protected against short circuit and overloading. The PWT 12 is equipped with a power LED and a two-color LED output status indicator. It is supplied with an AC adapter and a set of DC cables. The PWT 12 is the ideal solution for power-hungry foot pedals or 9-volt effects units that can be operated at higher voltages for increased dynamics and stability.

Key Features

• Fully regulated universal pedal board power supply
• 12 standard centre negative outlets with 2,000 mA output total
• 8 x 9 V outlets (300 mA each)
• 4 variable voltage outlets 6 to 18 V (500 mA each)
• Short circuit and overload protection for each outlet
• DC cables and mains adapter included

Technical Specifications

Product type
Power Supplies
Input voltage
100 – 250 V
Outputs
12
Output connectors
2.1 x 5.5 mm
Output voltage
12 V , 18 V , 9 V
Max. output current
2000 mA A
Isolated outputs
Yes
Polarity
Center negative
Cord length
25 – 50 cm
Indicators
fault , Power
Controls
Output voltage selector
Width
193 mm
Depth
70 mm
Height
30 mm
Weight
0,4 kg
