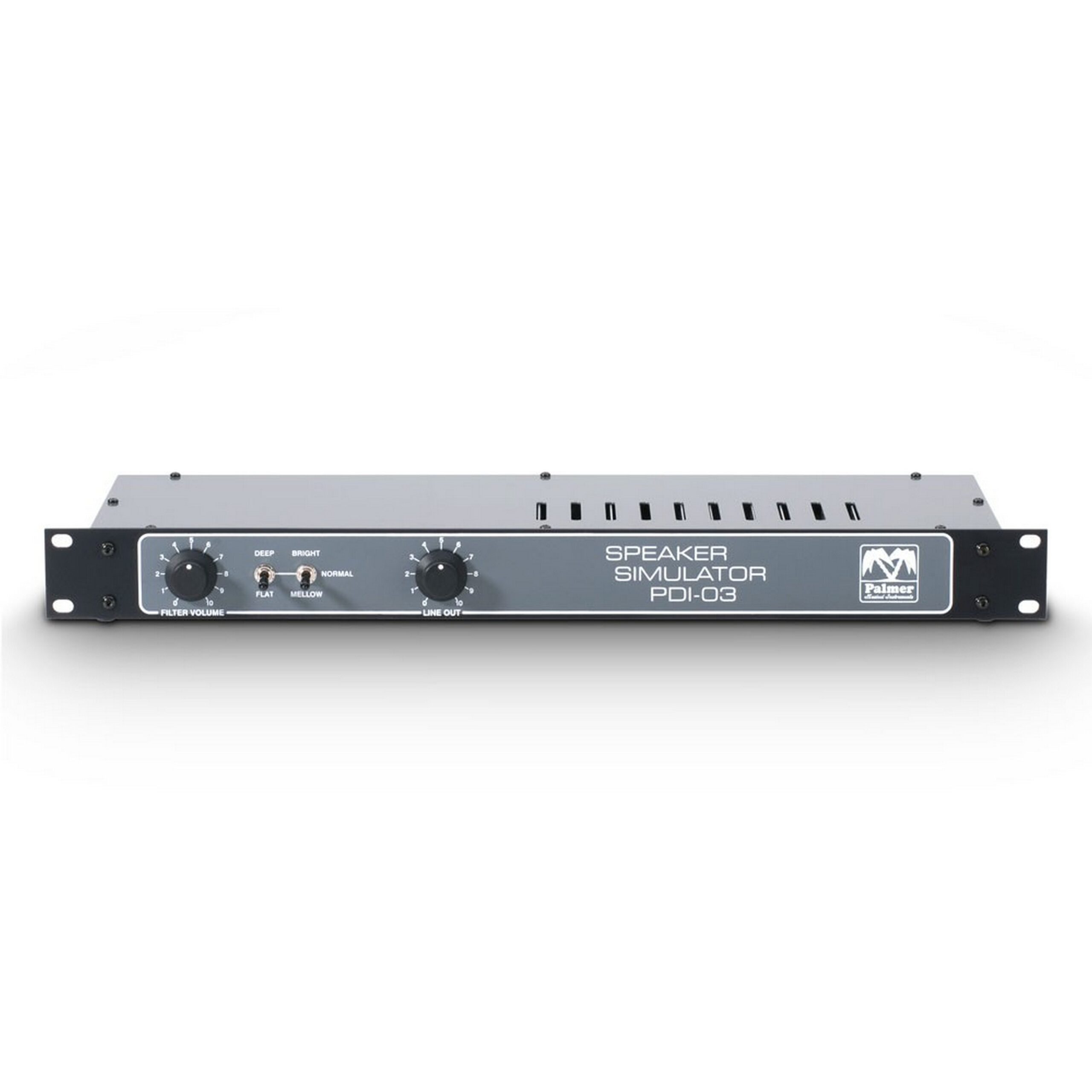

Palmer PDI03L04 Speaker Simulator with Loadbox, 4 Ohms

The PDI03 Palmer speaker simulator combines load impedance, a signal splitter and DI box especially designed for guitars. All functions are optimized for live and recording applications. Instead of being connected to a loudspeaker, the PDI03 is connected directly to the amplifier output. The signal is no longer picked up by a microphone, but after passing through a special filter section is fed directly into a mixing console, tape recorder, etc. This permits power amplifiers to be operated to saturation without troublesome volume problems.

Technical Specifications

Product type
Speaker Simulators
Channels
1
Input type
unbalanced
Inputs
1
Input connectors
6.3 mm jack
Output type
balanced , unbalanced
Outputs
2
Output connectors
6.3 mm jack , XLR
Output impedance
10 k (6.3 mm Jack) Ohm(s) , 600 (XLR) Ohm(s)
Controls
filter volume , line out , voicing
Dummy load
Yes
Dummy load impedance
4 Ohm(s)
Max. load
100 W
Voicing filter
Yes
Power attenuator
no
Transformer isolated outputs
Yes
Cabinet material
sheet steel/aluminum
Cabinet surface
powder coated/anodized
Width
480 mm
Width
19”
Depth
180 mm
Height
44.5 mm
Height
1 U
Weight
3 kg
