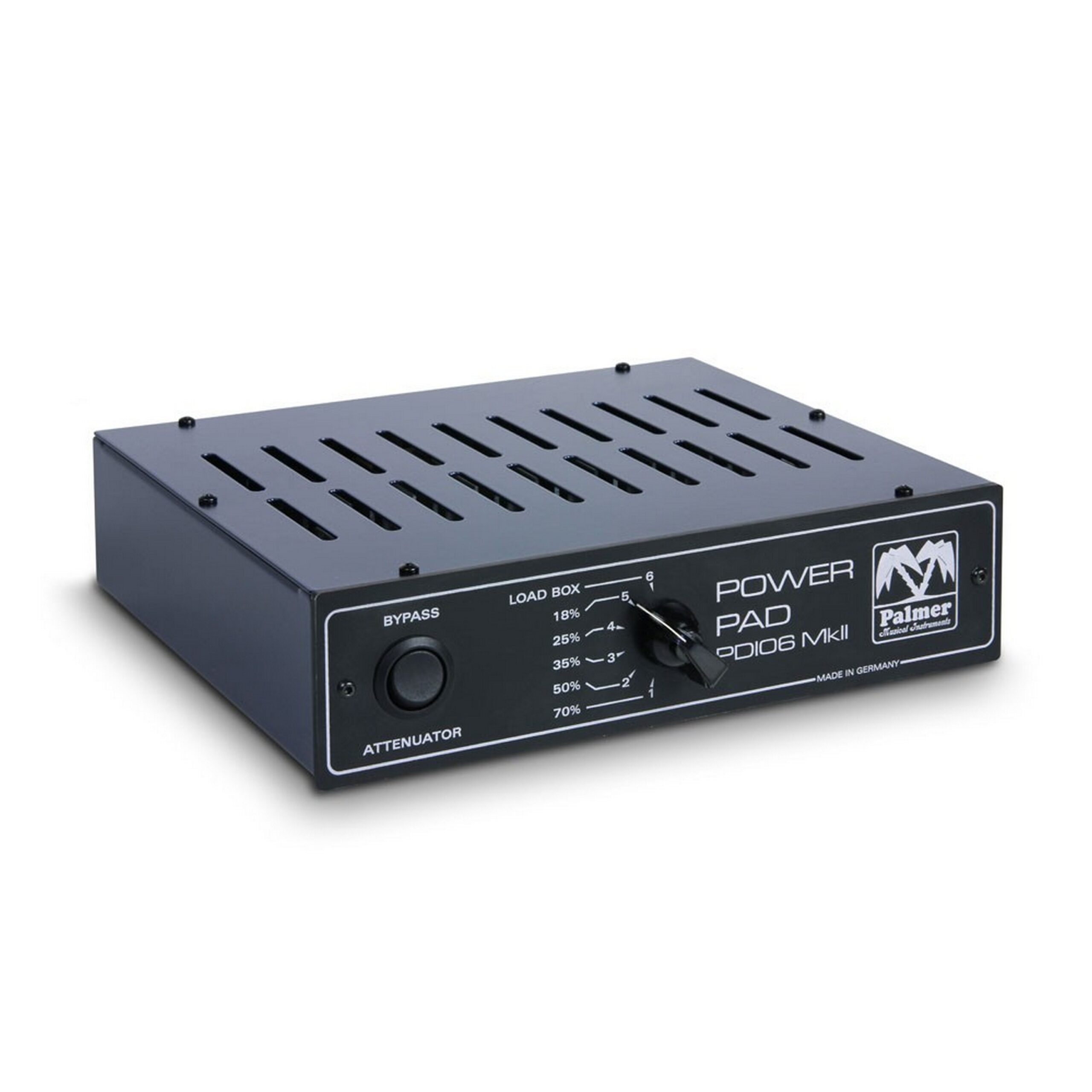

Palmer PDI 06 L16 Power Attenuator, 16 Ohms

The PDI06 is a power attenuator for live applications. The device is connected between the amplifier output and the speaker cabinet. It makes it possible to use the popular power stage distortion of tube amplifiers while reducing the associated high volume level. This permits practical volume reduction in five increments from 100% to 18% for stage and practice room situations. An additional level makes the speaker completely mute; the PDI06 then functions as a LOAD BOX and absorbs the entire output power of the amplifier.

Technical Specifications

Product type
Speaker Simulators
Channels
1
Input type
unbalanced
Inputs
1
Input connectors
6.3 mm jack
Output type
unbalanced
Outputs
2
Output connectors
6.3 mm jack
Output impedance
16 Ohm(s)
Controls
bypass, rotary attenuation switch
Dummy load
Yes
Dummy load impedance
16 Ohm(s)
Max. load
120 W
Voicing filter
no
Power attenuator
Yes
Transformer isolated outputs
no
Cabinet material
sheet steel/aluminum
Cabinet surface
powder coated/anodized
Width
220 mm
Depth
220 mm
Height
50 mm
Weight
2,4 kg
