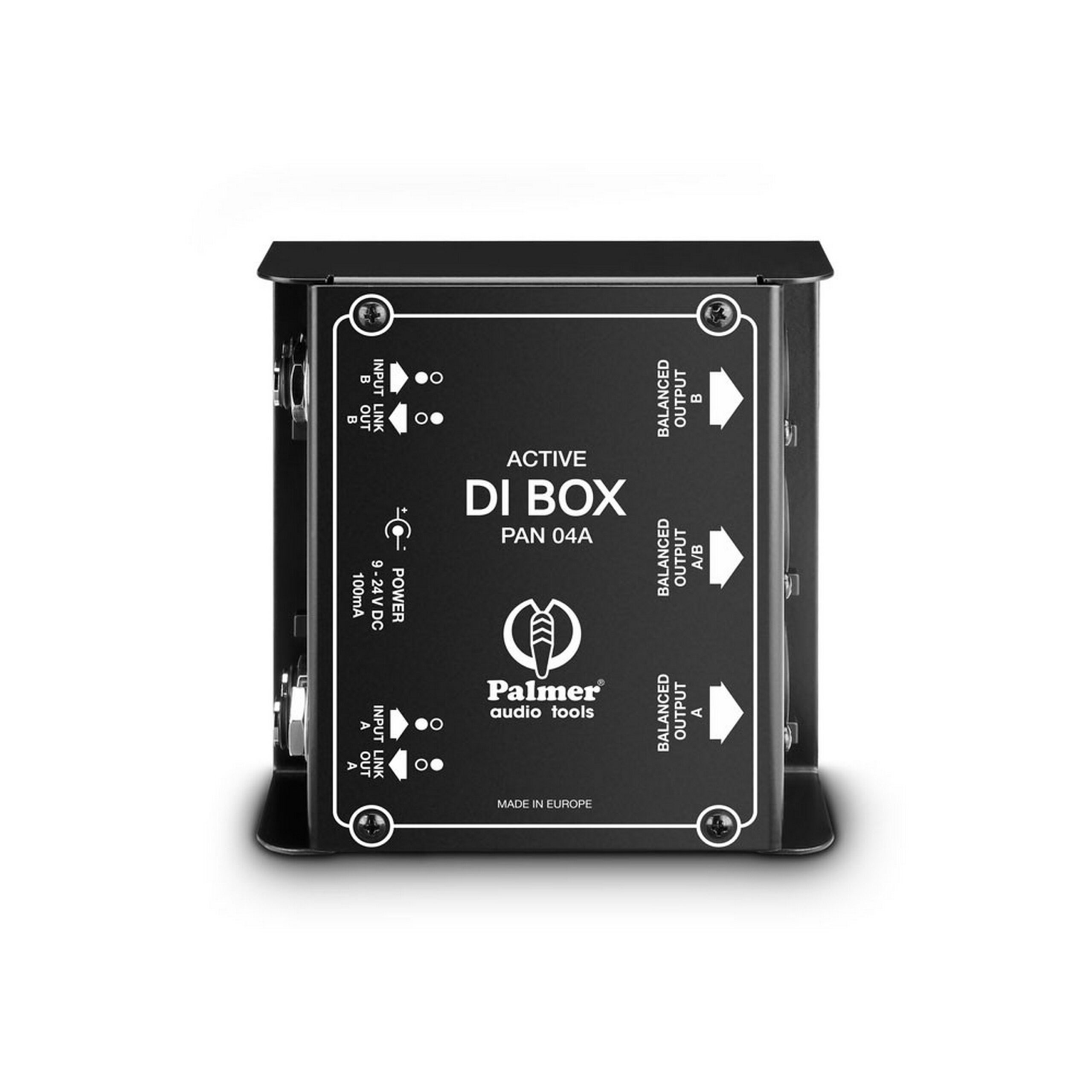

Palmer PAN 04 A 2-Channel Active DI Box

The Palmer PAN04A is 2-channel DI box for feeding asymmetrical and high impedance electric instrument signals into a mixing desk’s microphone inputs. It delivers a transformer balanced, low impedance signal to the outputs and eliminates mains hum and interference caused by ground loops. The active switch leaves the frequency response unaffected and achieves a high dynamic range. In addition to 6.35 mm direct outputs and -30 dB switchable input attenuation, the DI box also features a mono output that sums both channels. The PAN04A is designed to be exceptionally robust and is suitable for both stage and studio. It can be powered with 9 to 24 V DC mains adapters or phantom power when two outputs are connected to a mixer.

Technical Specifications

Product type
DI Boxes
Type
active
Channels
2
Inputs
2
Input connectors
6.3 mm jack
Max. input level
+ 45 dBu
Input impedance
1M Ohm(s)
Outputs
3
THRU outputs/channel
1
Output connectors
6.3 mm jack , XLR
Max. output level
+ 11 dBu
Output impedance
200 Ohm(s)
Frequency response
10 – 40000 Hz
Transformer balanced
Yes
Ratio
1 : 1
Controls
attenuation , ground lift
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
116 mm
Depth
110 mm
Height
45 mm
Weight
0,47 kg
