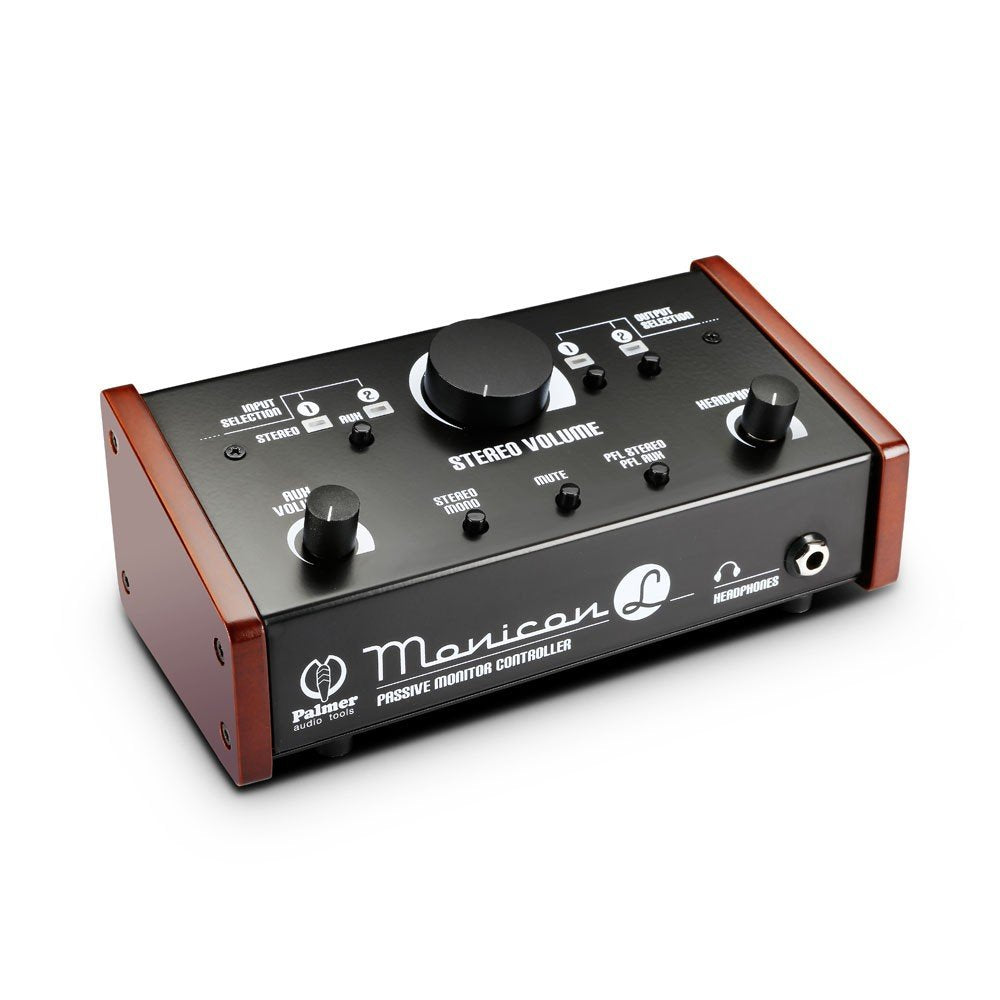

Palmer MONICON L Passive Monitor Controller

The Palmer Monicon L is a precise, analogue volume control that connects between a computer or audio interface and active monitor speakers. The switch is completely passive and distortion-free, the LED displays and built-in headphone amplifier are powered via the included power supply.

Symmetric combo sockets serve as stereo input. The Monicon L’s AUX input features RCA sockets and a 3.5 mm stereo jack. The compact console offers outputs for two monitor pairs and a mono summed output via XLR sockets. The stereo or AUX input can be selected alternately, the two outputs innavidually and together. In addition to its large volume controller, the Monicon L is also equipped with mono, mute and PFL switches, a 6.35 mm headphone output, and separate AUX and headphone controllers for convenient operation.

Key Features

• All-passive volume control circuit
• Stereo and AUX inputs
• Dual outputs
• Additional mono output
• Balanced and unbalanced connection
• Integrated high quality headphone amplifier
• Mono, mute and PFL switches
• Stereo volume, AUX and headphone level controls
• Elegant design with solid wood side panels
• Built to last

Technical Specifications

Product type
Other Studio and Recording Equipment
Channels
2
Inputs
2
Input connectors
3.5 mm TRS , RCA , XLR
Input type
balanced/unbalanced (depending on TS/TRS connection)
Max. input level
20 dBu
Input impedance
(balanced) 10k Ohm(s) , (unbalanced) 5k Ohm(s)
Outputs
3
Output connectors
XLR
Output type
balanced/unbalanced (depending on TS/TRS connection)
Max. output level
20 dBu
Output impedance
600 Ohm(s)
Frequency response
10 – 40000 Hz
Total Harmonic Distortion (THD)
0.001 %
Max. attenuation
(Attenuator + Mute) 112 dB , (Attenuator) 85 dB
Controls
attenuation , input selector , mono , mute , output selector , PFL source
Cabinet material
sheet steel , wood
Cabinet surface
Powder coated
Width
218 mm
Height
77 mm
Depth
100 mm
Weight
1,14 kg
