Palmer LI 04 Media DI Box 2-Channel for PC and Laptop Free Shipping Genuine

Palmer LI 04 Media DI Box 2-Channel for PC and Laptop

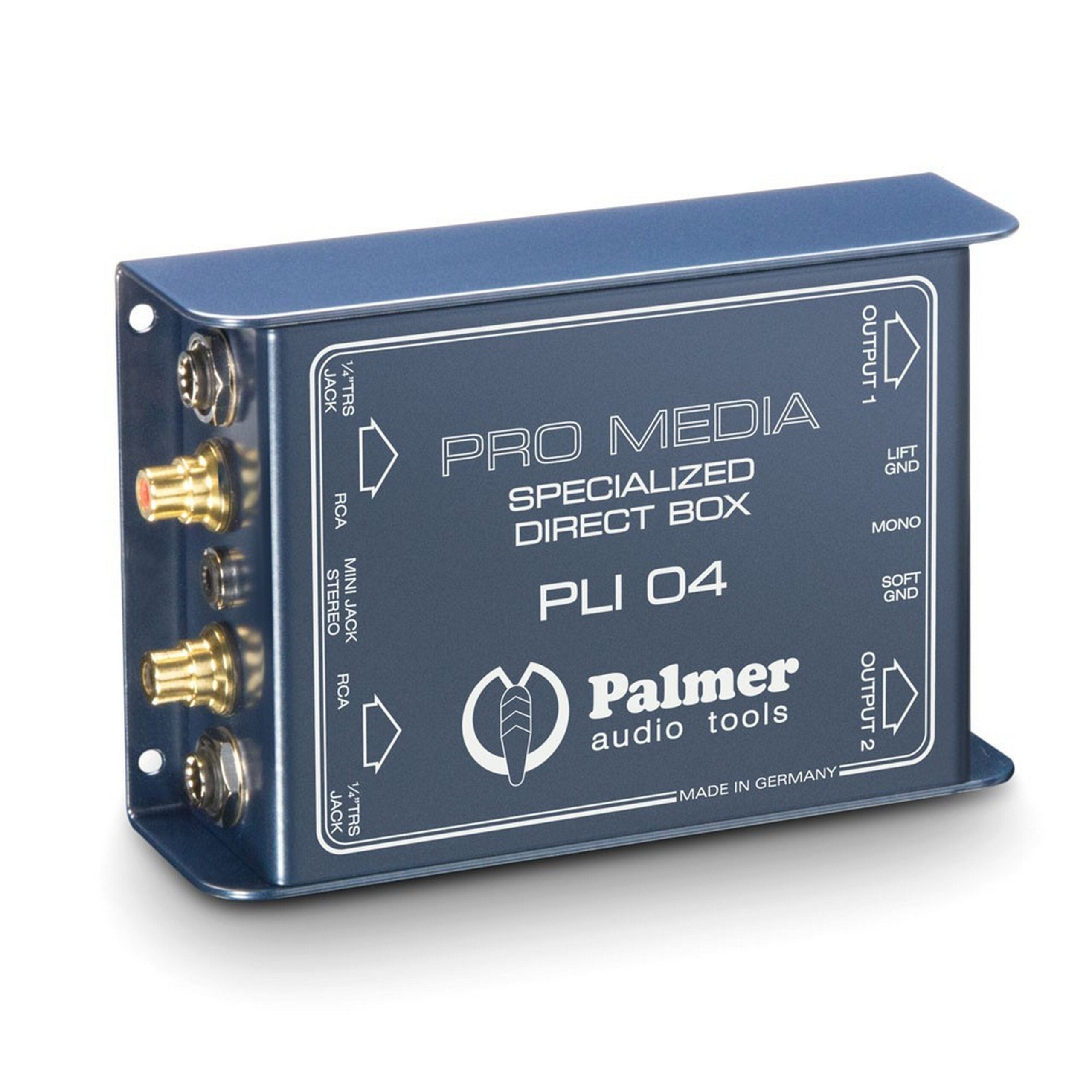

PRO MEDIA DI/ PLI-04. With the new PRO MEDIA DI/ PLI-04, Palmer introduces a DI-box, produced with the discerning needs of the computer-age media in mind. Using this uncomplicated method, personal computers and other consumer equipment with unbalanced outputs can be converted to balanced, in order to carry out, e.g., a presentation over a professional PA system. The PLI-04 accommodates all the common input types, TRS jacks accepting mono or stereo plugs, RCA phono sockets and a 3.5mm stereo jack input for use with the headphone output of a Laptop or similar device. The outputs are conventional transformer balanced XLR sockets, as used in professional PA systems, guaranteeing an electrically decoupled signal, a prerequisite to ensure noise-free operation. One other special feature which should not be forgotten! Although the PLI-04 is primarily a stereo unit, it can be switched to mono, with the two stereo signals summed and fed to both XLR outputs. The PLI-04 manifests a mechanically robust unit combined with outstanding technical specifications, adding to the list of high quality products that have come to be expected from Palmer.

Technical Specifications

Product type
Line Isolators
Channels
2
Inputs
5
Input connectors
3.5 mm TRS , 6.3 mm jack , RCA
Input type
unbalanced
Input impedance
(at 600 ohms load) 6 k Ohm(s)
Max. input level
+ 6 dBu
Outputs
2
Output connectors
XLR
Output type
balanced
Output impedance
600 Ohm(s)
Max. output level
+ 6 dBu
Transformer balanced
Yes
Ratio
3.16 : 1
Frequency response
20 – 20.000 Hz
Controls
ground lift , mono/stereo
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
140 mm
Depth
95 mm
Height
35 mm
Weight
0,699 kg
