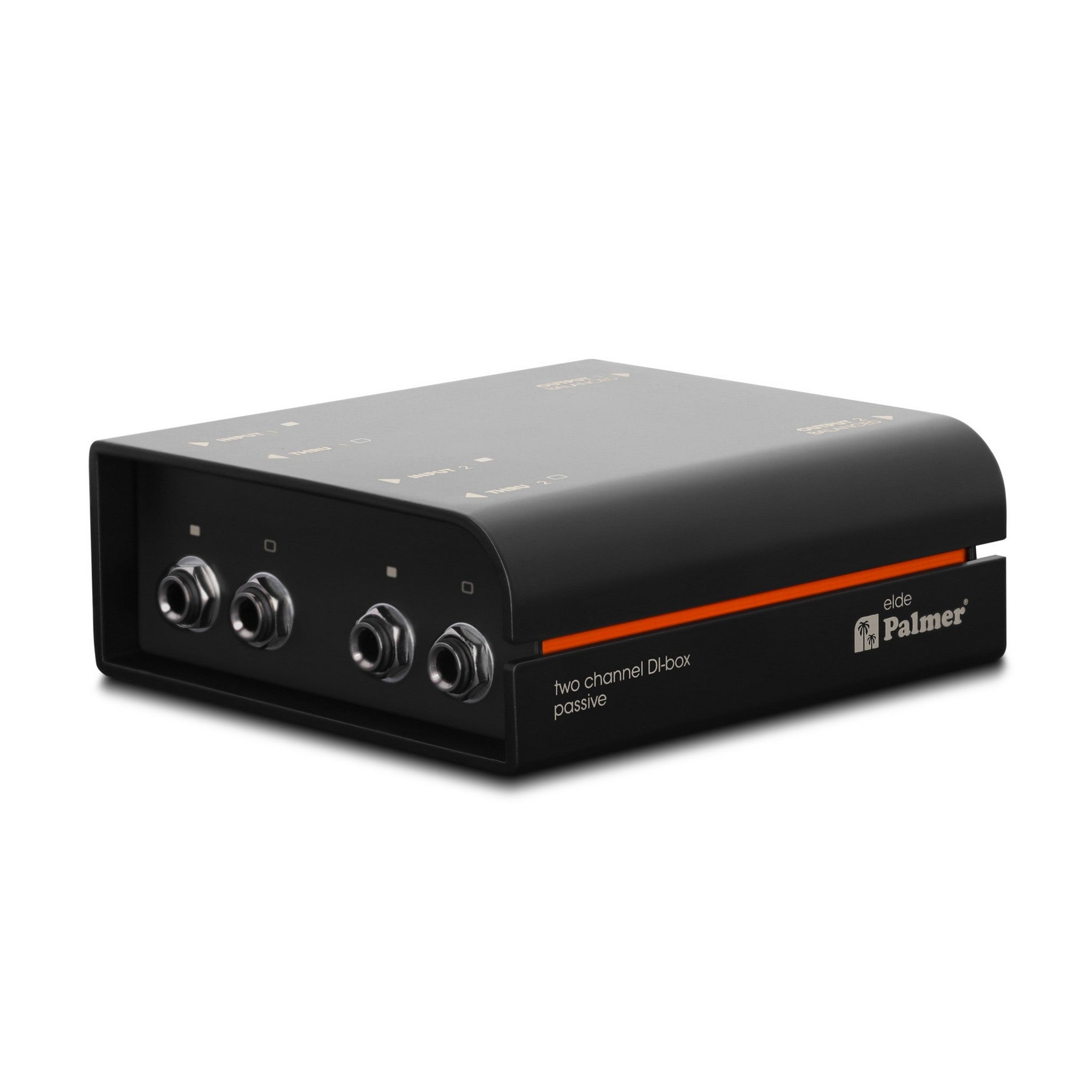

Palmer elde Passive 2-Channel DI Box

Are you looking to pick up the raw signal from a guitar, bass or keyboard without noise and tonal loss, even over long cable runs? That’s exactly what the Palmer elde does – simply and reliably. Especially since the elde is a classic passive DI box, and it even has a dual-channel design. This means you can use it for stereo signals as well as for two different instruments.

The inputs are each looped to a Thru Out, allowing the signal to be passed on to the guitar/bass amplifier. For very high level signals, each channel has its own pad switch (-30 dB), so you can also insert the elde between the amplifier output and the loudspeaker. The output signals are balanced and with low impedance, so that they can withstand even longer cable runs without damage. Impedance conversion and balancing is done passively via a transformer, which also provides galvanic isolation. Each channel has its own ground lift switch to eliminate ground loops.

The Palmer elde is a high-quality two-channel di-box that is extremely easy to use. Due to its passive design, it requires neither batteries nor phantom power. This makes it extremely reliable and failure-proof. With its robust aluminium/steel housing, the Palmer elde easily withstands rough everyday use on stage, and with its clean, unaltered sound, it also excels perfectly in the recording studio.

Key Features

• Balancing and impedance matching for guitar/bass/keyboard synthesisers
• Two-channel model for stereo signals or two instruments
• Eliminates ground loop hum thanks to galvanic transformer isolation
• Extremely fail-safe, no power supply required
• Thru-out for routing input signals to amplifiers
• Pure and unaltered low-noise audio
• Handles even high-level inputs without distortion
• Switchable 30 dB pad for extremely high input levels (e.g. amplifier output)
• Solid casing made of aluminium and steel
• Incl. rewritable tour label for attachment onto the back of the elde
• Engineered in Germany

Technical Specifications

Product type
DI box
Channels
2
Type
passive
Transformer isolated
Yes
Inputs
2
input type
unbalanced
Input connectors
6.3 mm jack
Outputs
2
Output type
balanced
Output connectors
XLR
THRU outputs per channel
1
Input attenuation (Pad)
0 dB / 30 dB
Ground lift switch
Yes
Housing
Aluminium continuous casting
Dimension (H/W/D)
140 x 50 x 128 mm
Weight
0,66 kg
Ambient temperature during operation
-20 – 70 °C
Relative Humidity
< 80 %, not condensing
Accessories (included)
Inscription label (tour label), rubber feet
Max. input level (< 1% THD, 20 Hz)
+20 dBu
Max. input level (< 1% THD, 1 kHz)
+32 dBu
Frequency response (±0,2dB, relative 1kHz)
5 Hz – 80 kHz
Input impedance (1 kHz)
38.5 kOhm
Output impedance (1 kHz)
25 Ohm(s)
THD (30 Hz, +4 dBu, unity, unweighted)
< 0,03 %
THD (1 kHz, +4 dBu, unity, unweighted)
< 0,002 %
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)
< 0,002 %
Transformer ratio
10 : 1
