Palmer DI-REVERSE Reversed DI Box Reliable Online

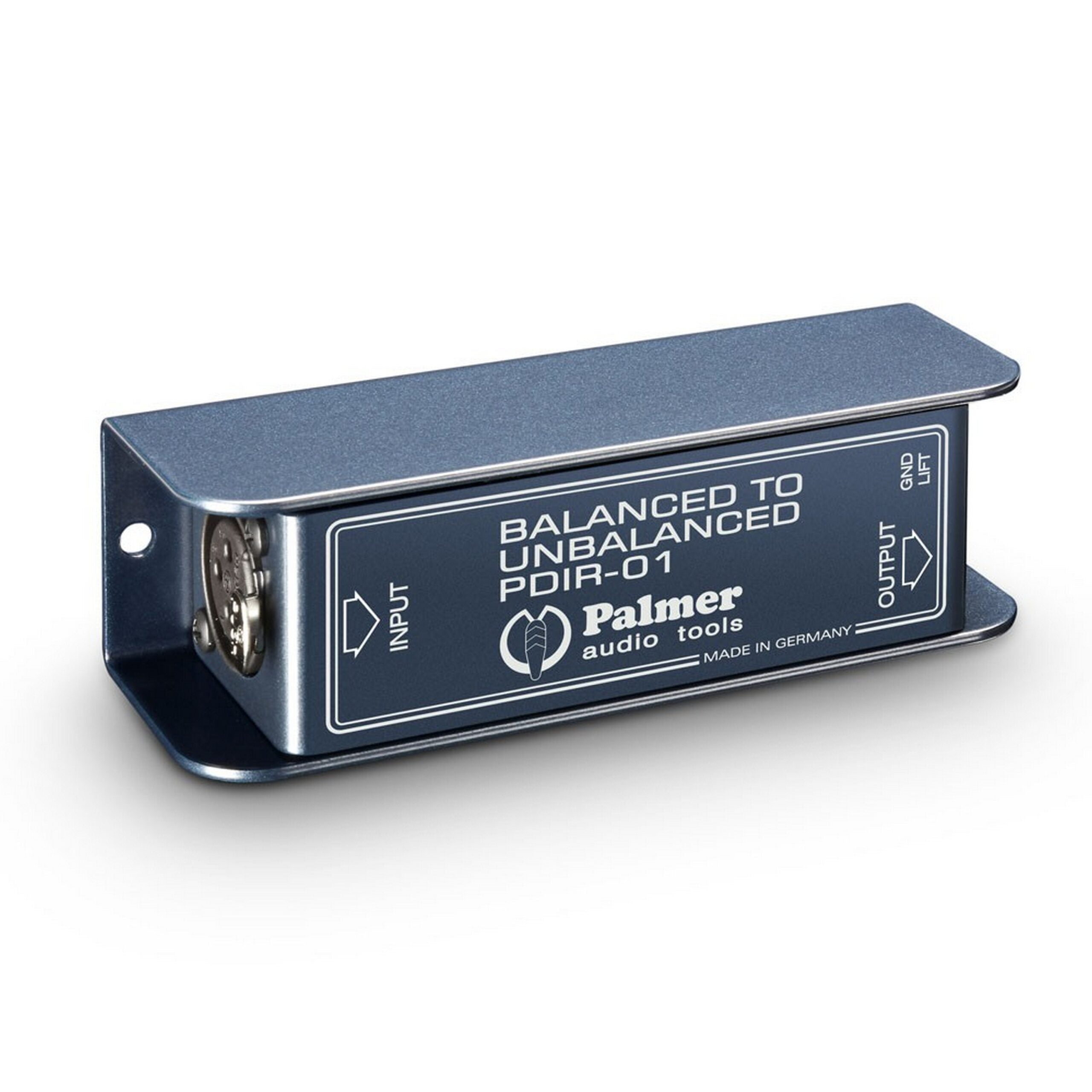

Palmer DI-REVERSE Reversed DI Box

Many try using a DI-Box “backwards” in order to convert a balanced signal to unbalanced. The resulting mismatch generally leads to disappointing results. The PDIR (DI-Reverse) offers a clean and reliable solution whilst additionally isolating the two connected devices via transformer.

Technical Specifications

Product type
DI Boxes
Channels
1
Inputs
1
Input connectors
XLR
Max. input level
+6 dBu
Input impedance
2 k Ohm(s)
Outputs
1
Output connectors
6.3 mm jack
Max. output level
+6 dBu
Output impedance
2 k Ohm(s)
Frequency response
20 – 20000 Hz
Transformer balanced
Yes
Ratio
1:1
Controls
ground lift
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
110 mm
Depth
35 mm
Height
39 mm
Weight
0,17 kg
