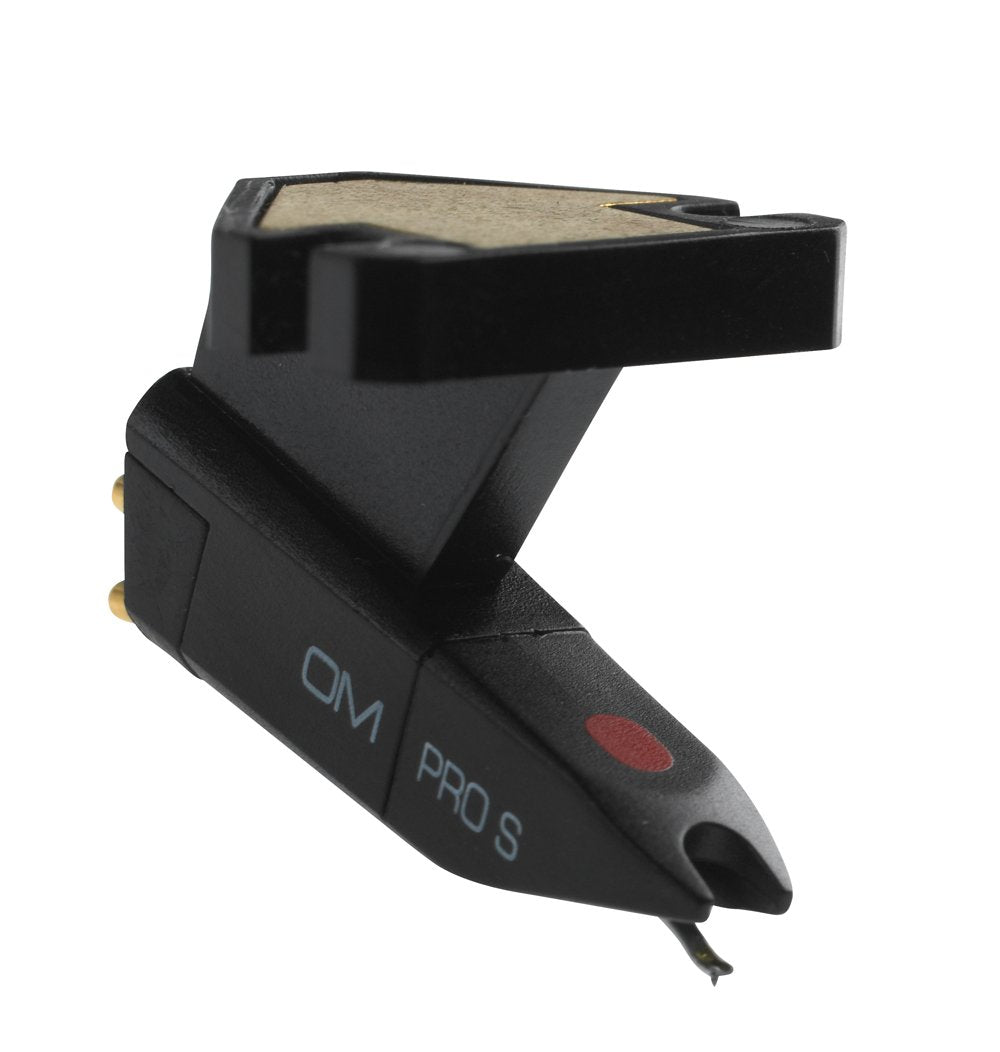

Ortofon Pro S OM Single | Single Concorde Spherical Cartridge for DJ Turntables

The Ortofon Pro S OM Single is the ultimate choice for DJs who demand precision, durability, and high-quality sound performance in their turntables. Crafted with an advanced spherical diamond stylus, this cartridge minimizes scratching while delivering outstanding audio clarity and reliability. Its robust cantilever is designed to withstand the rigor of active DJ settings, making it ideal for both professional and enthusiast use. Regardless of the environment, the Ortofon Pro S OM Single provides unparalleled versatility, ensuring that your music always sounds its best.

Engineered to offer optimal performance under various conditions, the Pro S OM Single excels in multiple applications, from club settings to home studios. The spherical needle design provides a high output voltage of 5 mV, ensuring your tracks are heard with remarkable fidelity. Furthermore, the solid build of the Pro S OM Single guarantees that it can handle the demands of high-energy performances, making it a reliable partner for DJs everywhere.

Key Features

• Single OM Cartridge Model
• Plastic Tray Included
• Spherical Needle
• 5 mV Output Voltage

Specifications

• Output voltage at 1000 Hz, 5 cm/sec: 5 mV
• Channel balance at 1 kHz: 2 dB
• Channel separation at 1 kHz: 20 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3 dB: 20-18,000 Hz
• Frequency response: 20-18,000 Hz +/-2 dB
• Tracking ability at 315 Hz at recommended tracking force: 70 μm
• Compliance, dynamic lateral: 7 μm/m N
• Stylus type: Spherical
• Stylus tip radius: R 18 μm
• Tracking force range: 3.0-5.0 g (30-50 mN)
• Tracking force recommended: 4.0 g (40 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF
• Concorde weight: 18.5 g
• OM cartridge weight: 5.0 g

Package Contents

• Ortofon Pro S OM Single Concorde Spherical Cartridge
• Plastic Tray
