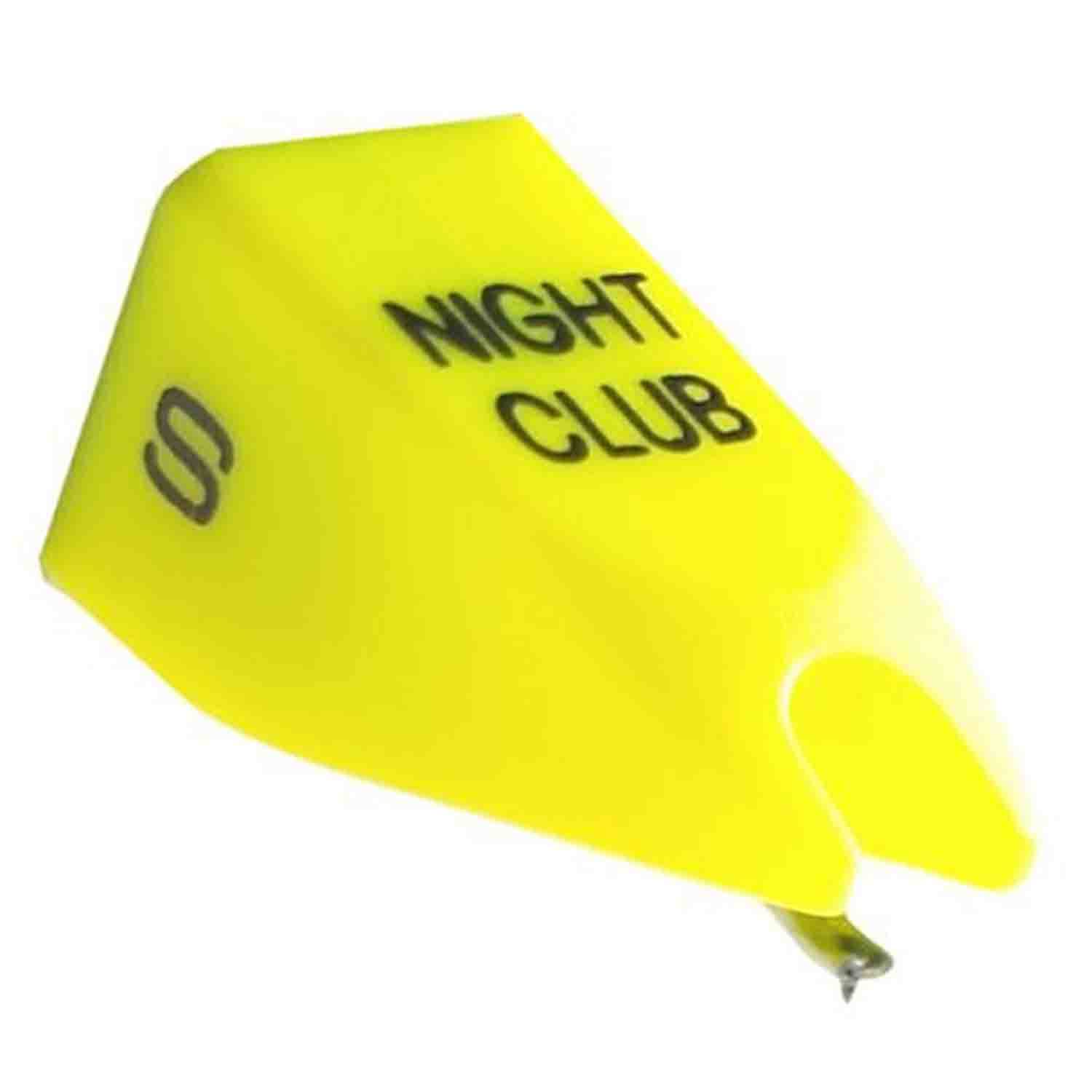

Ortofon Nightclub S | Styli for Nightclub Original DJ Cartridges

The Ortofon Nightclub S stylus is renowned for its exceptional performance in both scratch and mix applications. Featuring a spherical diamond and a customized design, it stands as a top contender in the DJ cartridge market. With its unmatched reliability, the Nightclub S stylus remains steadfastly in the groove even during the most intense scratching and back-cueing sessions. This makes it an invaluable asset for any DJ looking to deliver night-long performances without compromising on sound quality or stability.

For DJs who demand both precision and consistency, the Ortofon Nightclub S is engineered to deliver an unparalleled audio experience. The high output voltage of 6 mV and a dynamic lateral compliance of 7 um/mN ensure that even the most nuanced sounds are captured with immaculate clarity. Additionally, the styli’s robust build and supreme tracking capabilities make it a reliable choice for professional DJs around the globe.

Choosing the Ortofon Nightclub S means investing in a product that not only meets but exceeds the stringent expectations of the modern DJ. Its superior channel separation and wide frequency range offer a transparent, distortion-free sound that truly enlivens any music set.

Key Features

• Spherical diamond stylus for superior performance
• Custom design enhances durability and stability
• Unmatched reliability for night-long performances
• High output voltage of 6 mV at 1000Hz, 5cm/sec
• Exceptional channel balance and separation
• Wide frequency range from 20 to 22,000 Hz
• Recommended tracking force of 3.0 g (30 mN)

Specifications

• Output voltage at 1000Hz, 5cm/sec: 6 mV
• Channel balance at 1kHz: 1.5 dB
• Channel separation at 1kHz: 23 dB
• Channel separation at 15kHz: 15 dB
• Frequency range at -3dB: 20-22,000 Hz
• Frequency response: 20-18,000 Hz +3 / – 2 dB
• Tracking ability at 315 Hz at recommended tracking force: 80 um
• Compliance, dynamic lateral: 7 um/m N
• Stylus type: Spherical
• Stylus tip radius: R 18 um
• Tracking force range: 2.0-5.0 g (20-50 mN)
• Tracking force recommended: 3.0 g (30 mN)
• Tracking angle: 20 degrees
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF

Package Contents

• Ortofon Nightclub S Stylus
• User Manual
