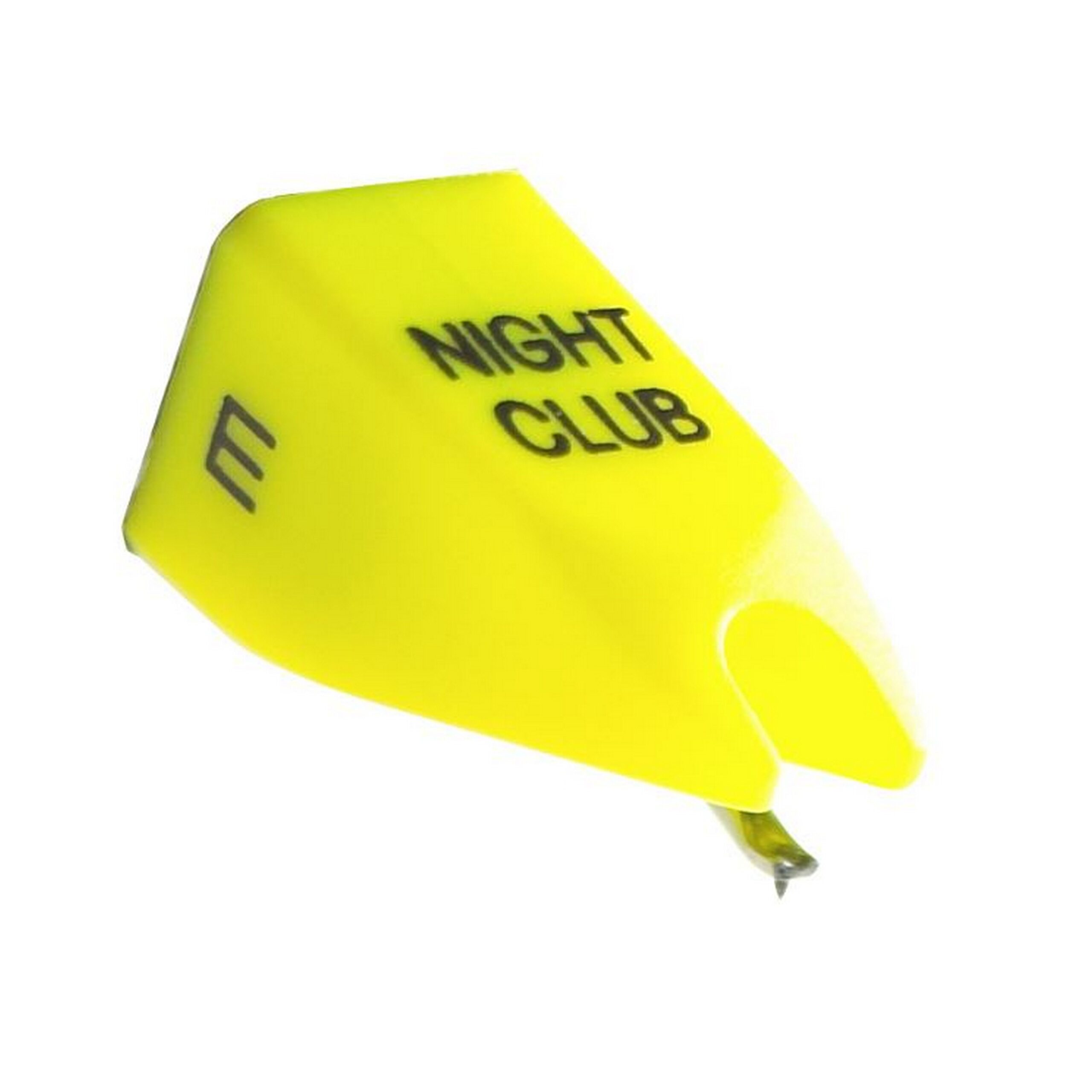

Ortofon Nightclub E Elliptical Stylus for Nightclub 1, Yellow

Nightclub E is equipped with Special Elliptical diamond. Perfect for usage in clubs. Superb sound quality. Club DJs and studio workers believe the Nightclub E to be an absolute high-end cartridge. It is indeed a no-nonsence performer with fascinating musical resources. It’s output is superb with a frequency responce rating high enough to compare the Nightclub E to any audiophile cartridge.

Technical Specifications

Output voltage at 1000Hz, 5cm/sec.
8 mV
Channel balance at 1kHz
1,5 dB
Channel separation at 1kHz
23 dB
Channel separation at 15 kHz
15 dB
Frequency range at -3dB
20-22.000 Hz
Frequency response
20-20.000 Hz +/- 1.5 dB
Tracking ability at 315 Hz at recommended tracking force
65 m
Compliance, dynamic lateral
20 m/m N
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 m
Tracking force range
2.0-5.0 g (20-50 mN)
Tracking force recommended
3.0 g (30 mN)
Tracking angle
20
Internal impedance, DC resistance
1000 Ohm
Internal inductance
580 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-600 pF
Concorde cartridge weight
18.5 g
