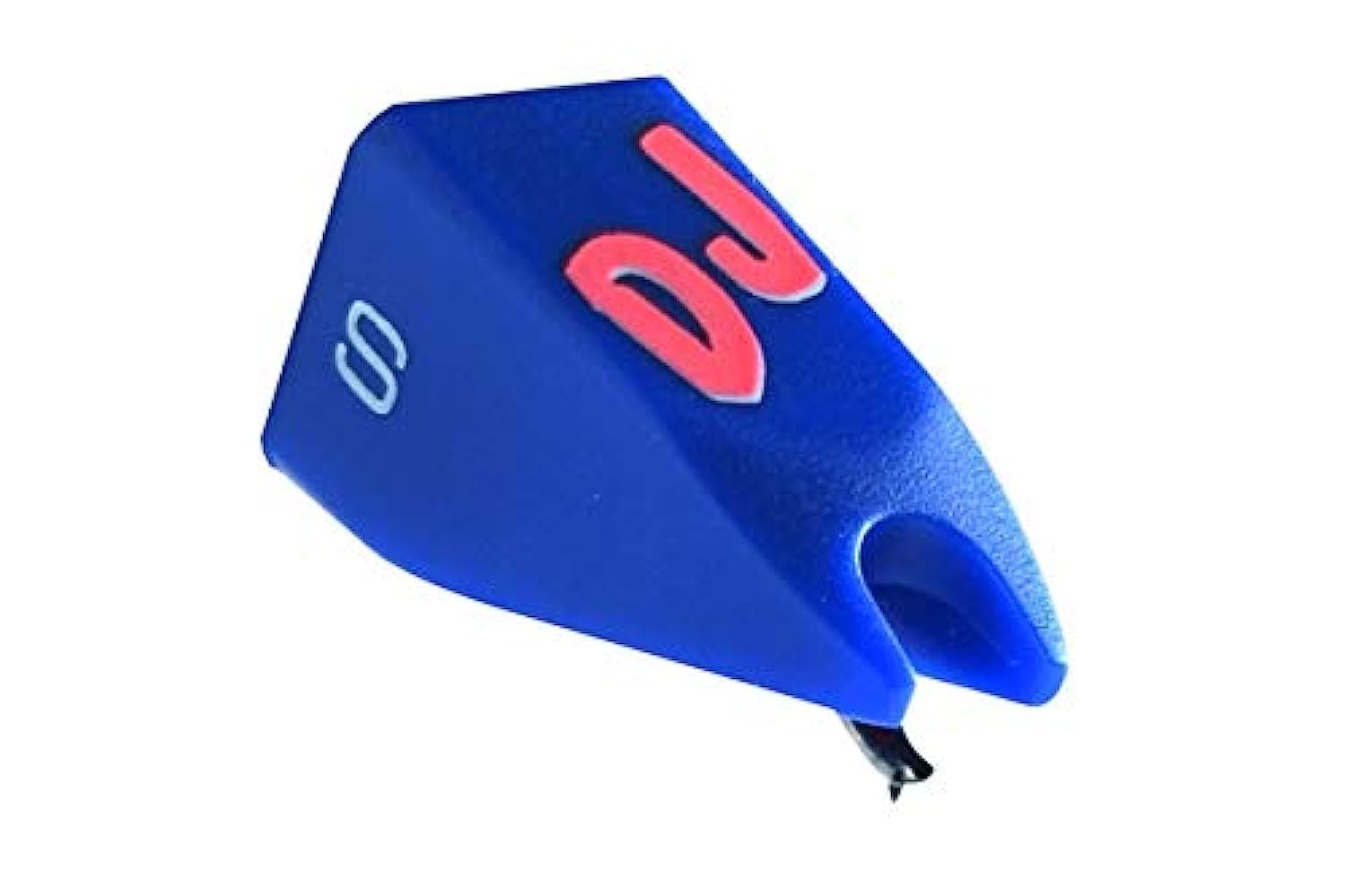

Ortofon DJS Spherical Stylus for DJ MK1 Cartridge, Blue

The Ortofon DJS Spherical Stylus for DJ MK1 Cartridge in Blue is your ultimate companion for DJing and turntablism. Designed for professional DJs and audiophiles alike, this stylus is built to endure the rigorous demands of high-energy performances while delivering exceptional audio quality. Crafted from robust blue nylon material and featuring a fine spherical stylus, this cartridge offers a unique combination of durability and precision. Whether you’re scratching, mixing, or just spinning records, the DJS Spherical Stylus provides reliable performance you can count on.

One of the standout features of the Ortofon DJS is its specially developed, extremely balanced cantilever, which ensures outstanding rigidity. This critical design element not only provides superior tracking ability but also makes the stylus nearly unbreakable, meeting the needs of even the busiest DJs. With low record wear, you can trust this stylus to handle numerous sessions without compromising your vinyl collection. The versatile DJ series has long been hailed as the ‘jack of all trades,’ offering improved tracking and accurate sound reproduction. Its low wear stylus design ensures excellent groove handling, even with reduced applied weight, making it a valuable addition to any DJ’s toolkit.

Key Features

• Robust blue nylon construction for enhanced durability
• Fine spherical stylus for superior audio quality
• Extremely balanced cantilever for outstanding rigidity
• High tracking ability to keep up with any DJ performance
• Low record wear for long-term use
• Low wear stylus design for excellent groove handling

Specifications

• Output voltage at 1000Hz, 5cm/sec.: 6 mV
• Channel balance at 1kHz: 2 dB
• Channel separation at 1kHz: 23 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3dB: 20-20,000 Hz
• Frequency response: 20-18,000 Hz (3dB/-2dB)
• Tracking ability at 315 Hz at recommended tracking force: 80 m
• Compliance, dynamic lateral: 9 m/m N
• Stylus type: Spherical
• Stylus tip radius: R 18 m
• Tracking force range: 2.0-4.0 g (20-40 mN)
• Recommended tracking force: 3.0 g (30 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF
• Concorde cartridge weight: 18.5 g

Package Contents

• Ortofon DJS Spherical Stylus
• Instruction manual
