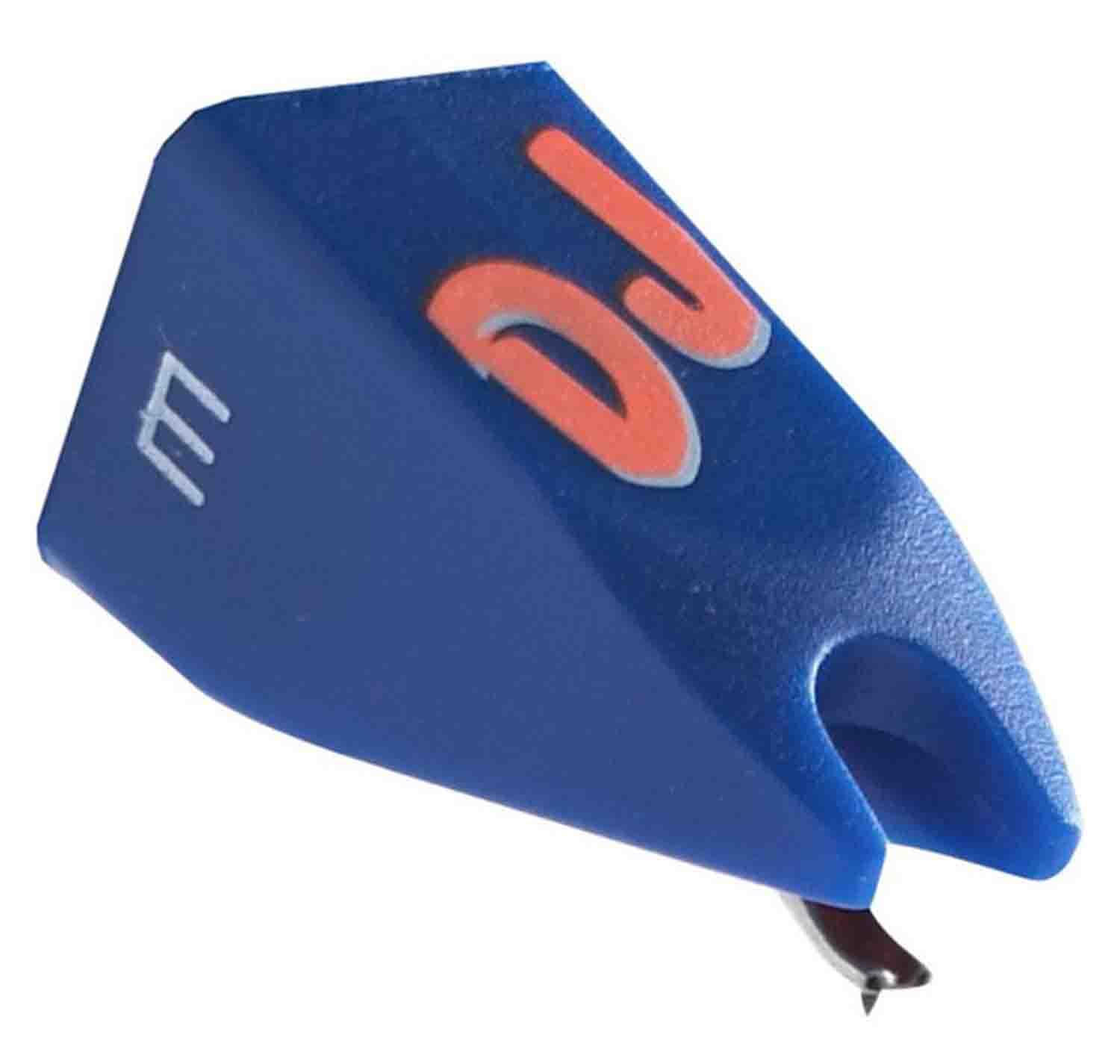

Ortofon DJE | Replacement Stylus for DJ Series Cartridge

The Ortofon DJE Replacement Stylus is the ultimate accessory for DJs who demand superior performance and longevity from their equipment. Designed to be a robust and reliable solution for scratch and back-cueing, this stylus offers outstanding rigidity thanks to its extra-strengthened cantilever. Whether you are a seasoned professional or an aspiring DJ, the Ortofon DJE stylus ensures that your tracks will play with exceptional clarity and durability, making it an essential part of your DJ setup.

Featuring a specially developed elliptical stylus and an extremely balanced cantilever, the Ortofon DJE stylus provides excellent tracking ability, making it nearly unbreakable. With this stylus, you can enjoy precise and accurate sound reproduction, reduced record wear, and enhanced groove handling, even with minimal tracking force. This makes it ideal for busy DJs who need equipment that can withstand constant use without compromising on performance.

The DJ series has built a reputation as the “jack of all trades” in the DJ community. With improved tracking and accurate sound reproduction, the Ortofon DJE stylus is designed to meet the rigorous demands of modern DJing. It is compatible with the DJ S/n cartridges and offers a low wear stylus design that ensures longevity and durability. Whether you are performing at a live event or practicing at home, this replacement stylus will help you achieve the best possible sound quality.

Key Features

• Special Elliptical stylus for accurate sound reproduction
• Extra-strengthened cantilever for outstanding rigidity
• Excellent tracking ability, nearly unbreakable design
• Reduced record wear for busy DJs
• Enhanced groove handling with minimal tracking force
• Compatible with DJ S/n cartridges

Specifications

• Output voltage at 1000Hz, 5cm/sec: 6 mV
• Channel balance at 1kHz: 2 dB
• Channel separation at 1kHz: 23 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3dB: 20-22,000 Hz
• Frequency response: 20-20,000 Hz +/- 2 dB
• Tracking ability at 315 Hz at recommended tracking force: 80 um
• Compliance, dynamic lateral: 9 um/m N
• Stylus type: Special Elliptical
• Stylus tip radius: r/R 13/25 um
• Tracking force range: 2.0-4.0 g (20-40 mN)
• Tracking force recommended: 3.0 g (30 mN)
• Tracking angle: 20 degrees
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF
• Cartridge weight: 18.5 g

Package Contents

• Ortofon DJE Replacement Stylus
• User manual
