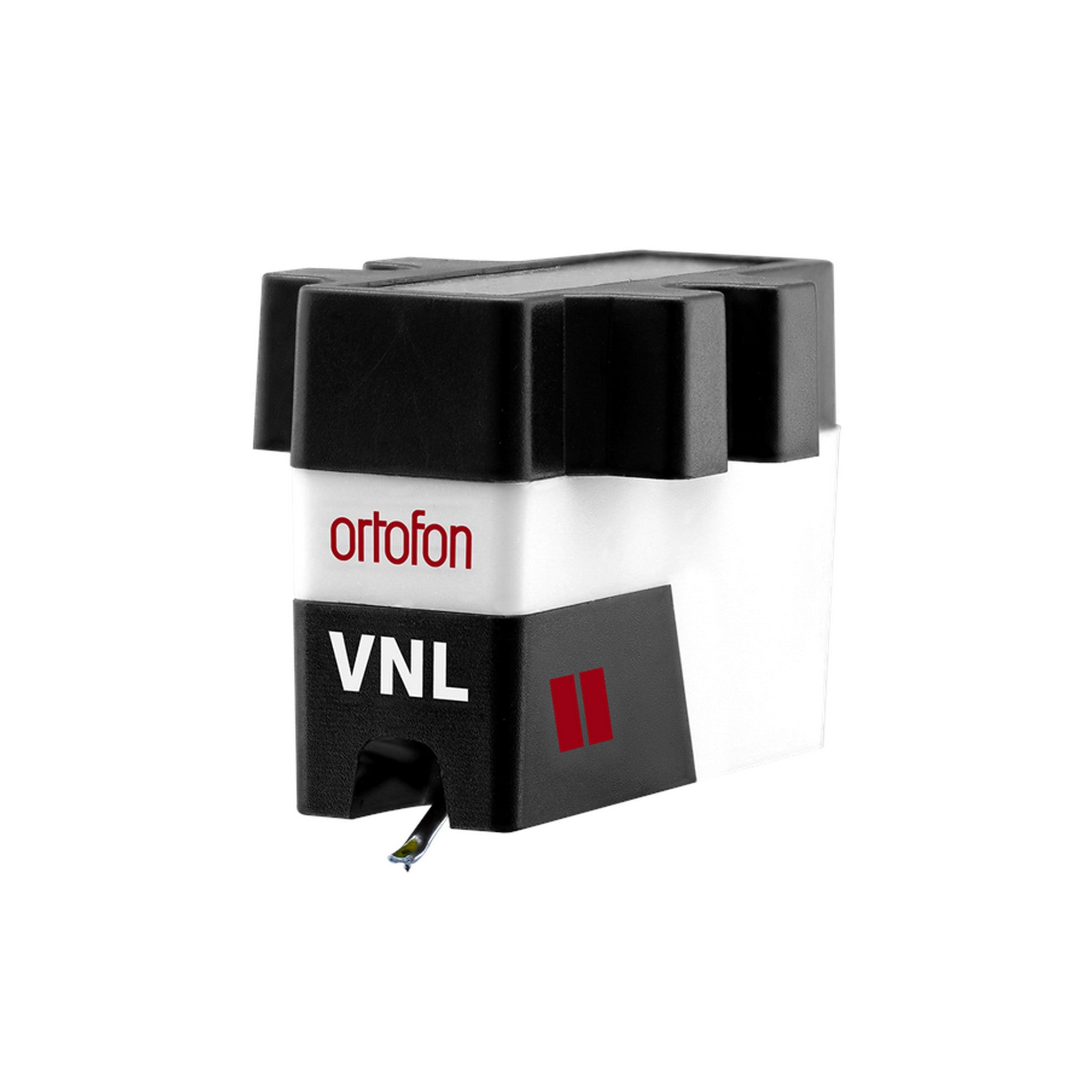

Ortofon DJ VNL Single Headshell-Mount Cartridge

The Ortofon DJ VNL Single Headshell-Mount Cartridge is your ultimate solution for precision sound and durability. With a design tailored for DJs, this cartridge features a spherical stylus specifically engineered for seamless groove tracking. Whether you’re scratching or back-cueing, the VNL minimizes record wear, ensuring the longevity of your vinyl collection. Solid and robust, its broad stance exhibits Ortofon’s signature design elements, with a cartridge body that allows for easy mounting and alignment across various headshells.

Designed to endure the most demanding conditions, the VNL offers exceptional compatibility with a wide range of playback systems. This means it will stay in the groove regardless of the rigorous use typical in DJ environments. Its aesthetic appeal, combined with top-notch functionality, makes the Ortofon DJ VNL a standout in the world of DJ cartridges. Coupled with Ortofon’s renowned quality, this cartridge provides superior tracking performance, whether using Digital Vinyl Systems (DVS) or real vinyl.

Key Features

• Stylus Type: Spherical
• Tracking Force: 4.0 g
• Output Voltage: 6 mV
• Frequency Range: 20-20,000 Hz
• Extra resistance to hardcore scratching and back spinning
• High tracking performance for both DVS usage and real vinyl
• Optimal balance of output and sound quality

Specifications

• Output voltage at 1000Hz, 5cm/sec.: 6 mV
• Channel separation at 1kHz: 20 dB
• Frequency response: 20 Hz – 20 kHz -2/+4 dB
• Tracking force range: 3 – 5 g
• Tracking force recommended: 4 g
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF
• Cartridge weight: 6.5 g
• Replacement stylus units: VNL I, VNL II, VNL III
• Antiskating: For best back cueing performance use “0”

Package Contents

• Ortofon DJ VNL Single Headshell-Mount Cartridge
• Stylus: VNL I
• Protective Case
• Mounting Hardware
• User Manual
