Ortofon Concorde ELITE Single Moving Magnet DJ Cartridge (Used) For Cheap Sale Online

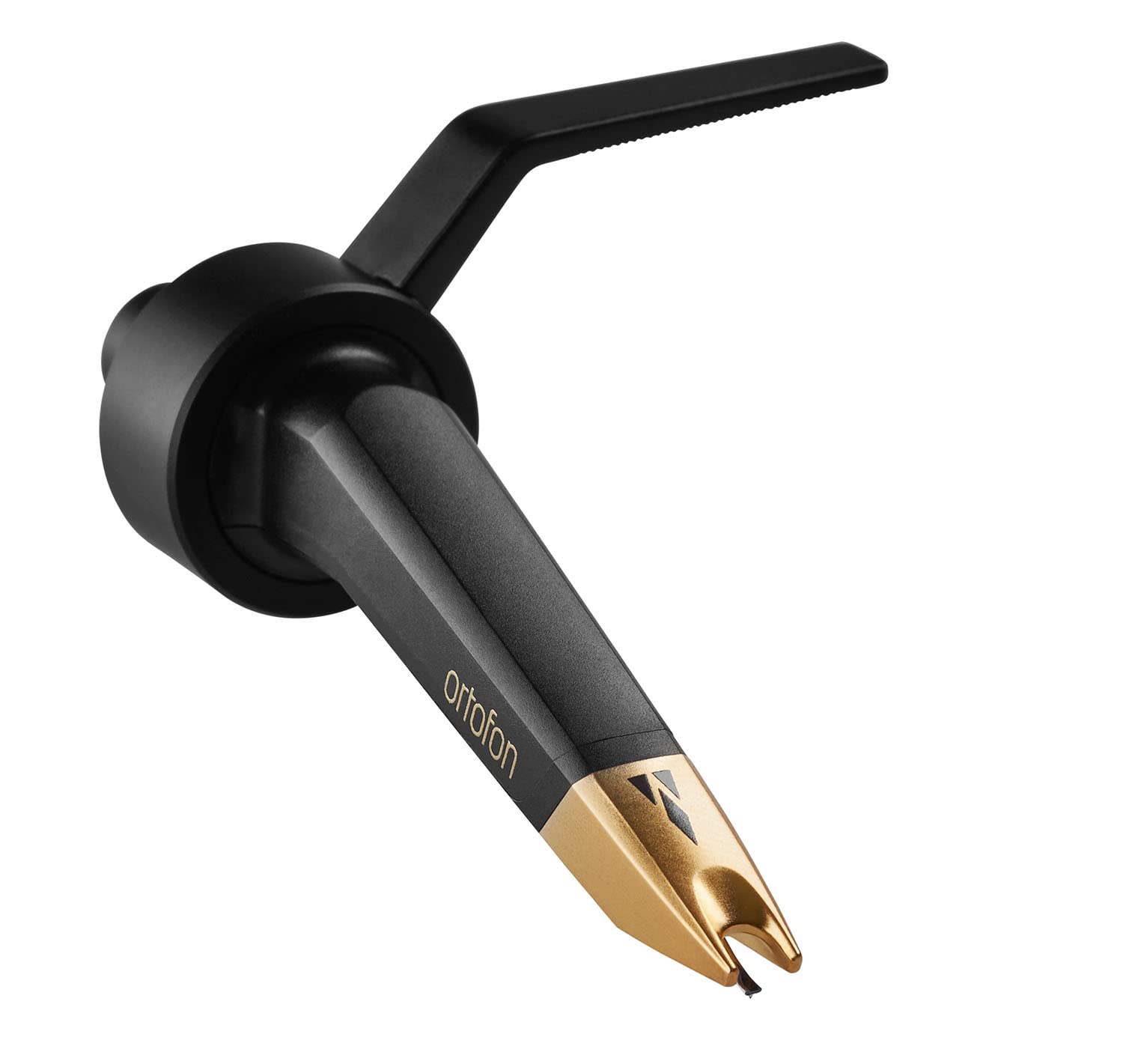

Ortofon Concorde ELITE Single Moving Magnet DJ Cartridge (Like New, Open Box)

The Ortofon Concorde ELITE Single Moving Magnet DJ Cartridge is a premium product that builds upon the esteemed legacy of the Ortofon Concorde MkII Series. This high-performance cartridge, featuring a like-new, open box condition with no signs of use, is meticulously engineered to deliver unparalleled sound quality for DJs and audiophiles alike. The number of component upgrades incorporated into the ELITE achieves acoustic excellence previously unheard of in DJ-specific cartridges, ensuring a top-tier auditory experience that sets a new benchmark in the industry.

With its sophisticated Nude Elliptical stylus and an array of meticulously designed components, the Ortofon Concorde ELITE provides an exquisite balance between audio fidelity and durability. Whether you are spinning vinyl in a high-energy club or curating music at a personal studio, this cartridge ensures unmatched auditory clarity and precision. The ELITE delivers a robust output voltage of 8.5 mV, a comprehensive frequency range from 20 Hz to 20,000 Hz, and unbeatable tracking performance, making it the go-to choice for professional DJs and discerning vinyl enthusiasts.

Key Features

• Stylus Type: Nude Elliptical
• Tracking Force: 3.0 g
• Output Voltage: 8.5 mV
• Frequency Range: 20-20,000 Hz

Specifications

• Output voltage at 1000 Hz, 5 cm/sec.: 8.5 mV
• Channel balance at 1 kHz: 1 dB
• Channel separation at 1 kHz: 25 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3 dB: 20-20,000 Hz
• Tracking ability at 315 Hz at recommended tracking force: 100 μm
• Compliance, dynamic lateral: 13 μm/mN
• Stylus tip radius: r/R 8/18 μm
• Tracking force range: 2.0-4.0 g
• Recommended tracking force: 3.0 g
• Tracking angle: 20 degrees
• Internal impedance, DC resistance: 1.2 kOhm
• Internal inductance: 800 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 150-400 pF
• Cartridge weight excluding screws: 18.5 g
• Cartridge color (body/stylus): Black/Gold
• Replacement stylus unit: ELITE/n

Package Contents

• Ortofon Concorde ELITE Single Moving Magnet DJ Cartridge
• User Manual
• Protective Stylus Guard
• Spare Screws
