Obsidian Control EN12 12 x 5-Pin XLR Port Ethercon to DMX Node Outlet For You

Obsidian Control EN12 12 x 5-Pin XLR Port Ethercon to DMX Node

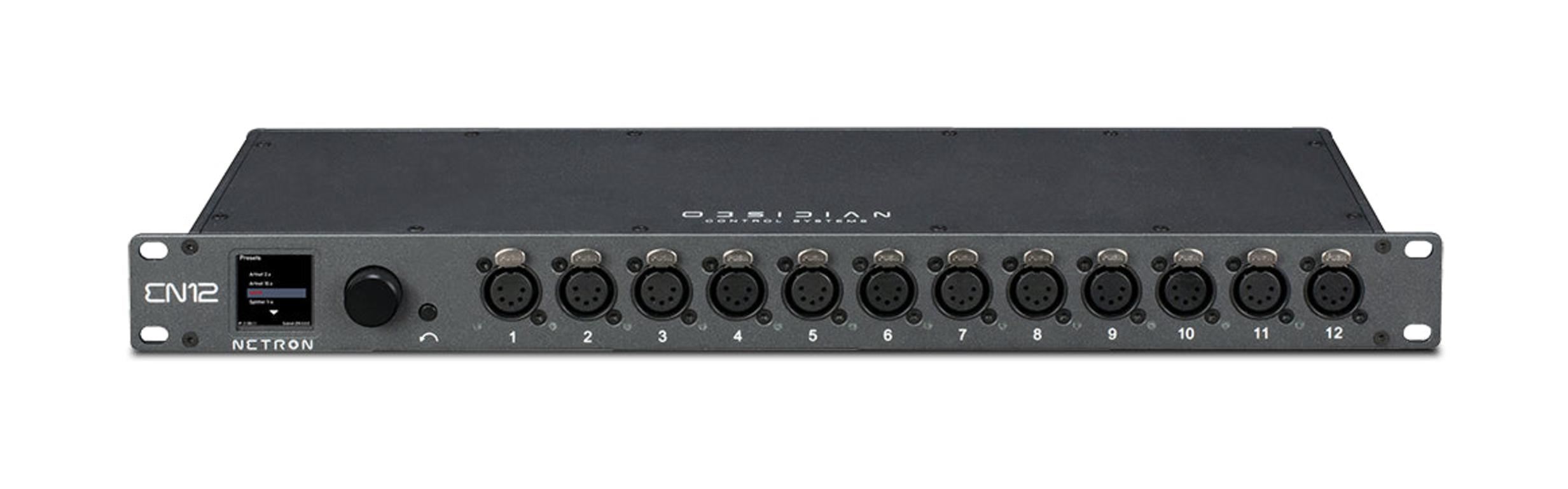

The Netron EN12 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.

Key Features

• RDM, Artnet and sACN support
• Factory and user presets for plug and play setups
• Line Voltage or POE powered
• 1.8” OLED Display with rotary knob
• 99 Internal cues with fade and delay time
• Customizable routing and merging options
• Remote configuration via internal webpage
• Contact closures for cue or preset recall
• Powder-coated aluminum rackmount housing

Technical Specifications

Physical
Length
482.5 mm (19 in.)
Width
161 mm {6.3 in.)
Height
44 mm (1.7 in.)
Weight
1.54 kg (3.4lbs)
