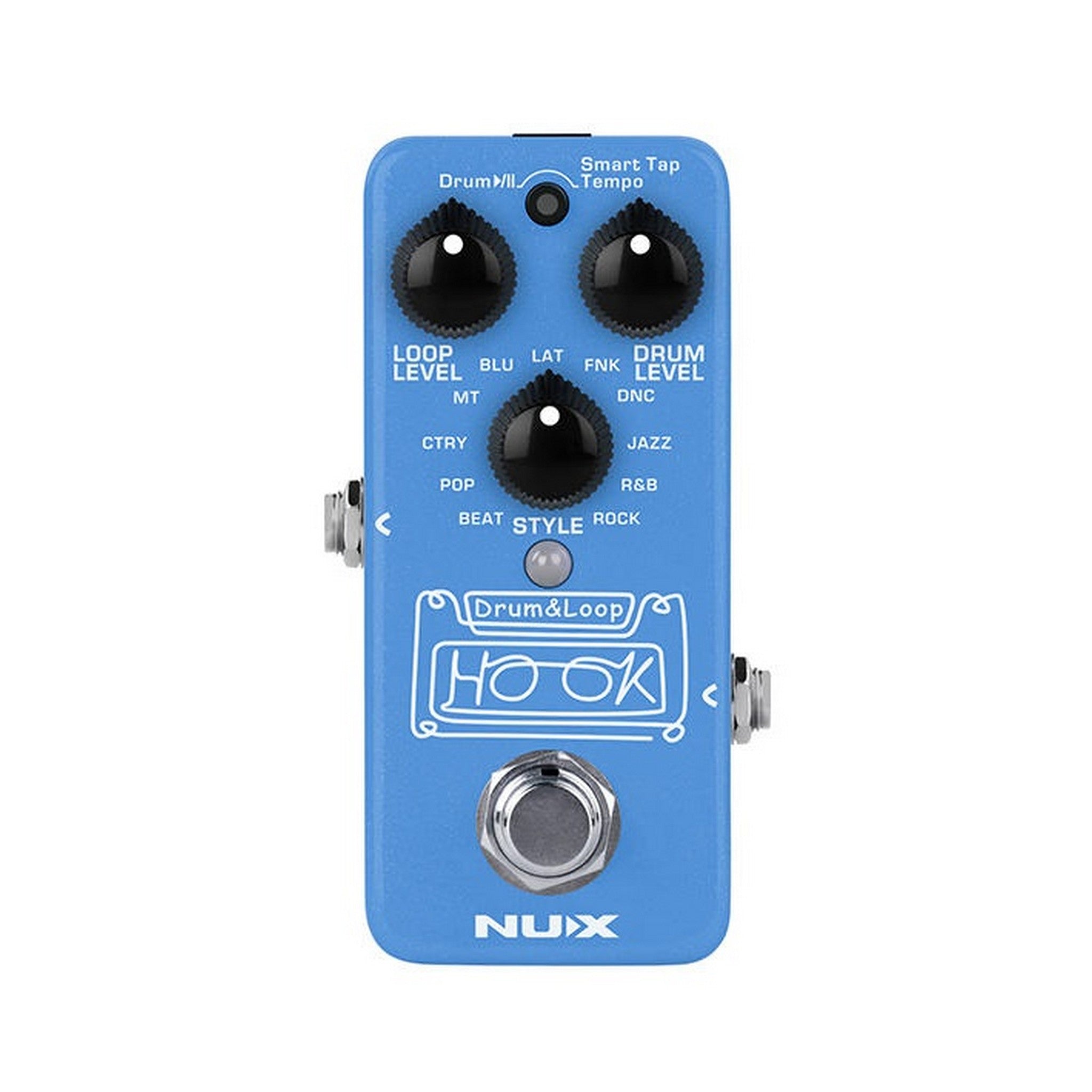

NUX NDL-3 Hook Drum and Loop Guitar Effects Pedal

The HOOK Drum & Loop (NDL-3) is a mini looper pedal with auto tempo detection. Simply record a phrase loop, then add a synchronized drum beat. Or you can use the included Smart Tap Tempo and play the drum beat, then start to record the phrase loop. The HOOK is intelligent and simple to operate.

When recording your phrase loop, you can choose Normal Recording or Auto Recording. Normal Recording (NR) is like regular looper pedal, while you press the footswitch, it starts to record immediately.

When in Auto Recording (AR) mode, press the footswitch to record arm the looper. HOOK will start recording once it detects your guitar signal. This is convenient while you put the HOOK on the desk, and you can use your hand instead of your foot to operate it.

Note: To switch between NR/AR, hold the footswitch while plugging in the AC adapter to bootup the pedal. NR: Drum Tap indicator flashes BLUE 3 times. AR: Drum Tap indicator flashes RED 3 times.

Even without the phrase loop, the HOOK can be used as a drum beat with Smart Tap Tempo. It offers 11 drum beat styles with high quality sound samples, and useful rhythms for practice.

The HOOK features 24-bit/44.1kHz recording resolution and 6 minutes recording time with unlimited overdubs. It is true-bypass and analog dry-through. The drum beats and loop playback are independent, which means that you can stop the loop and keep the drum beat playing. Re-play the phrase loop as you want.

The HOOK also includes a PHONES out jack! We know lots of musicians love to use pedals, and they sometimes need silent practice! And finally, you can export your phrase loop WAV file through HOOK APP, please download it from the HOOK product page.

Note: Plugging in the AC adapter when you Press & Hold Drum Tap switch to bootup the pedal will enter into Alt tweaking mode. The Drum Tap indicator and footswitch indicator will flash RED. Now the DRUM LEVEL knob can adjust the phones volume. You can play guitar into the pedal and tweak the DRUM LEVEL knob to adjust the phone volume. Press the footswitch to quit Alt tweaking.

The USB-C port is for firmware updates. Connect USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software.

The USB-C port supports PHRASE LOOP export. (WAV 44.1 kHz / 24-bits mono format) Connect USB cable to a PC, and open HOOK APP, then you can export or import the file.

Key Features

• 24-bit phrase loop with auto tempo detection rhythm in a mini enclosure.
• 11 rhythm styles with Smart Tap Tempo.
• Up to 6 minutes recording, unlimited overdubs.
• Drum and Loop volumes can be adjusted separately.
• Independent loop & drum playing.
• True-bypass and analog dry-through.
• 1/8” phones out for silent practice.
• Low power consumption. (Less than 100mA)
• USB-C port for firmware update, file import/export.

Technical Specifications

Input Impedance
1MΩ
Output Impedance
10kΩ
Phones Output Impedance
10Ω
Dynamic Range
103 dB
DSP Processing
44.1KHz / 32-bit
A/D D/A Sampling Rate
48KHz / 24-bit
Power
9V DC (Negative tip, Optional ACD-006 adapter)
Current Draw
less than 100mA
Dimensions
94(L)X51(W)X53(H)mm
Weight
175g
