Nux Loop Core Stereo Guitar Effects Pedal (Used) Comfortable

Good: Signs of usage with the possibility of minor dents.

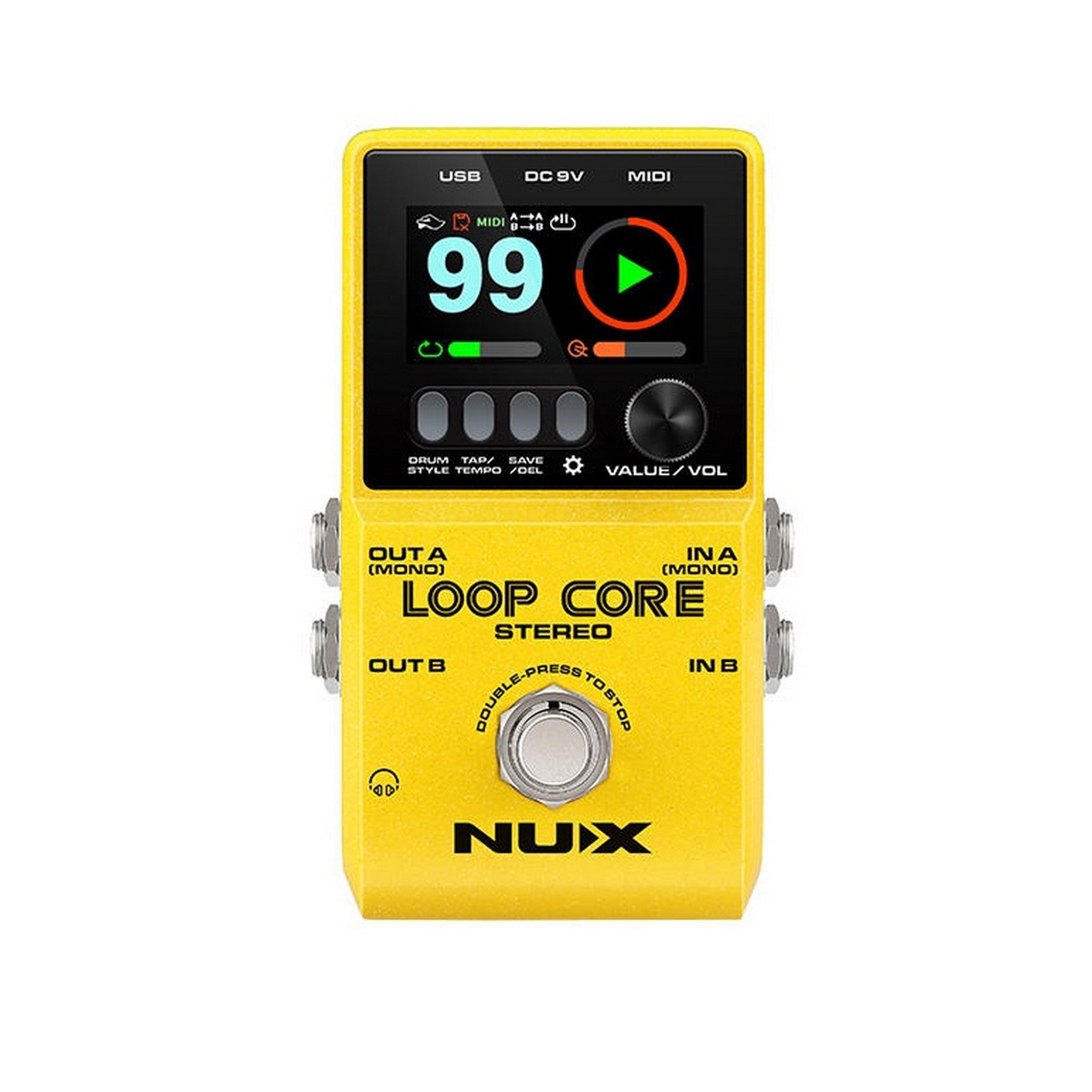

NUX Loop Core Stereo Guitar Effects Pedal (Used)

The NUX Loop Core Stereo is our next generation Looper pedal. Featuring a high-definition color LCD display, stereo inputs/outputs, and a MIDI control input; the Loop Core Stereo allows you to create up to 6 hours of music phrases, save them in one of 99 provided memory slots, and play back as stereo loops! Also included are 50 different drum patterns to complete the looping experience. Whether you practice, compose, or play live gigs, you’ll be inspired from the very first loop!

It’s easy to create loops and practice with the NUX Loop Core Stereo.

Power on the Loop Core Stereo pedal, rotate the VALUE knob to select an empty memory from 01 ~ 99, then you can press the foot switch to record/play/dub your loops. You can also hold the foot switch to UNDO/REDO/CLEAR.

Turn the VALUE knob to select a memory slot between 01~99 or adjust parameters.

When you are working on loops or practicing, press the VALUE knob once/twice to adjust the volume of Loop/Drum.

MIDI Control
Nearly every parameter of the Loop Core Stereo can be controlled by an external MIDI controller, such as tap tempo, stop/start/record, and so much more. The MIDI to 1/8” cable is included to get you started quickly.

The Loop Core Stereo allows users to customize their own boot-up picture with a GIF. – Connect the Loop Core Stereo to your computer and download a GIF picture to the folder: NUX LOOPER > NUX_LOOP > GIF. Disconnect and reboot the Loop Core Stereo, and then enter the DISPLAY setting and set the BOOT-UP PICTURE option to USER. Reboot the Loop Core Stereo again. Enjoy your own customized GIF interface!

Key Features

• All new design with a high-definition color LCD display.
• Up to 6 hours recording time (Stereo).
• 99 User memories.
• Built-in rhythm tracks with 50 patterns.
• Split out for two amplifiers.
• Cab simulation for output to mixer.
• Built-in MIDI control.
• Sampling Rate: 44.1kHz.
• A/D Converter: 24bit.
• Signal Processing: 32bit floating.
• Input: Mono/L/R.
• Outputs: Mono/L/R/Phones

Technical Specifications

Sampling Frequency
44.1KHz
AD converter
24bit
Signal Processing
32bit
Frequency response
20Hz-20KHz
Noise Level
-100dBu
Dynamic Range
108dB
Power Consumption
110mA-120mA
Input
Mono, Stereo
Output
Mono, Stereo, Phones
Display
TFT color LCD display
Power
9V negative tip power adapter
Dimensions
122mm(L)*72mm(W)*48mm(H)
Weight
264g
