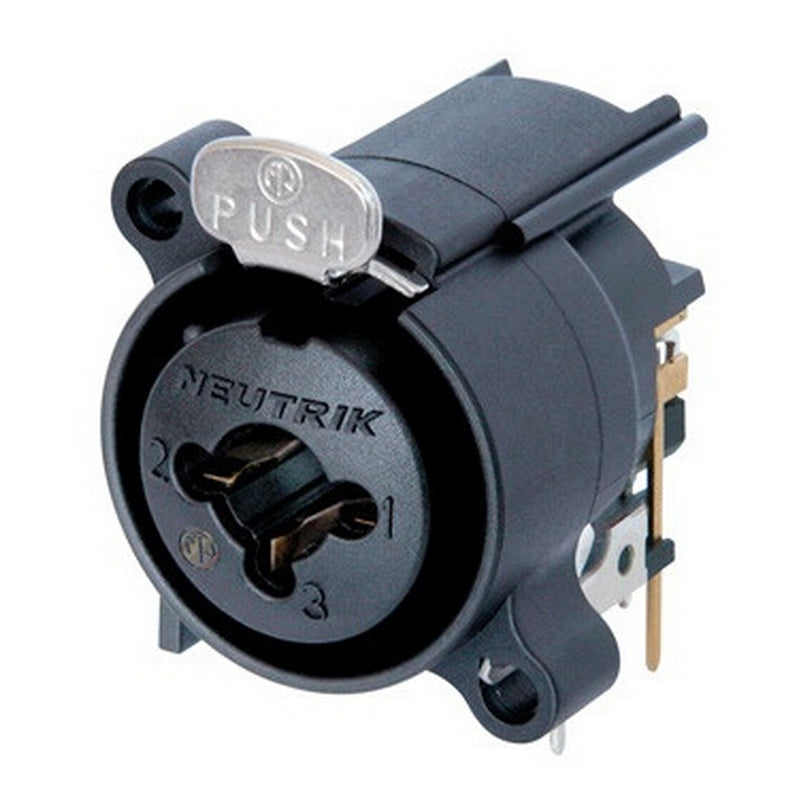

Neutrik NCJ6FA-H 3-Pole XLR Female Receptacle with 1/4 Stereo Jack

The Neutrik NCJ6FA-H is a premium 6.35mm (1/4″) jack plug designed to meet the rigorous demands of professional audio and signal applications. This female jack plug is engineered for exceptional durability and reliability, ensuring top-notch performance even in the most challenging environments. Its robust design provides secure connections with superior signal integrity, making it an ideal choice for both studio and live sound scenarios.

With its sleek and ergonomic design, the NCJ6FA-H facilitates easy handling and quick connections, minimizing setup time and maximizing efficiency. The high-quality construction of this jack plug guarantees long-term dependability and outstanding contact reliability. Neutrik’s dedication to excellence is evident in the NCJ6FA-H, which exemplifies their commitment to providing top-tier audio connectivity solutions.

Key Features

• High-quality 6.35mm (1/4″) female jack plug for reliable audio connections
• Durable construction designed for professional and demanding environments
• Superior contact reliability for consistent signal integrity
• Compact and ergonomic design for ease of use

Technical Specifications

Gender
Female
Electrical
Contact resistance (XLR)
< 10 mΩ
Contact resistance (jack)
< 10 mΩ
Dielectric strength
1.5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact (XLR)
3 A
Rated current per contact (Jack)
3 A
Rated voltage
< 50 V
Mechanical
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Panel thickness
Max. 3 mm (0.12″)
Wiresize
Horizontal PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Mounting screw
A-screw
Material
Contact plating (XLR)
Gal 0.2 µm AuCo
Contact plating (Jack RS)
Gal 0.2 µm Ag
Palladium
0.1 µm Pd over 3 µm NiP
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA66)
Locking element
Steel Ck67
Environmental
Flammability
UL 94 V-0
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
