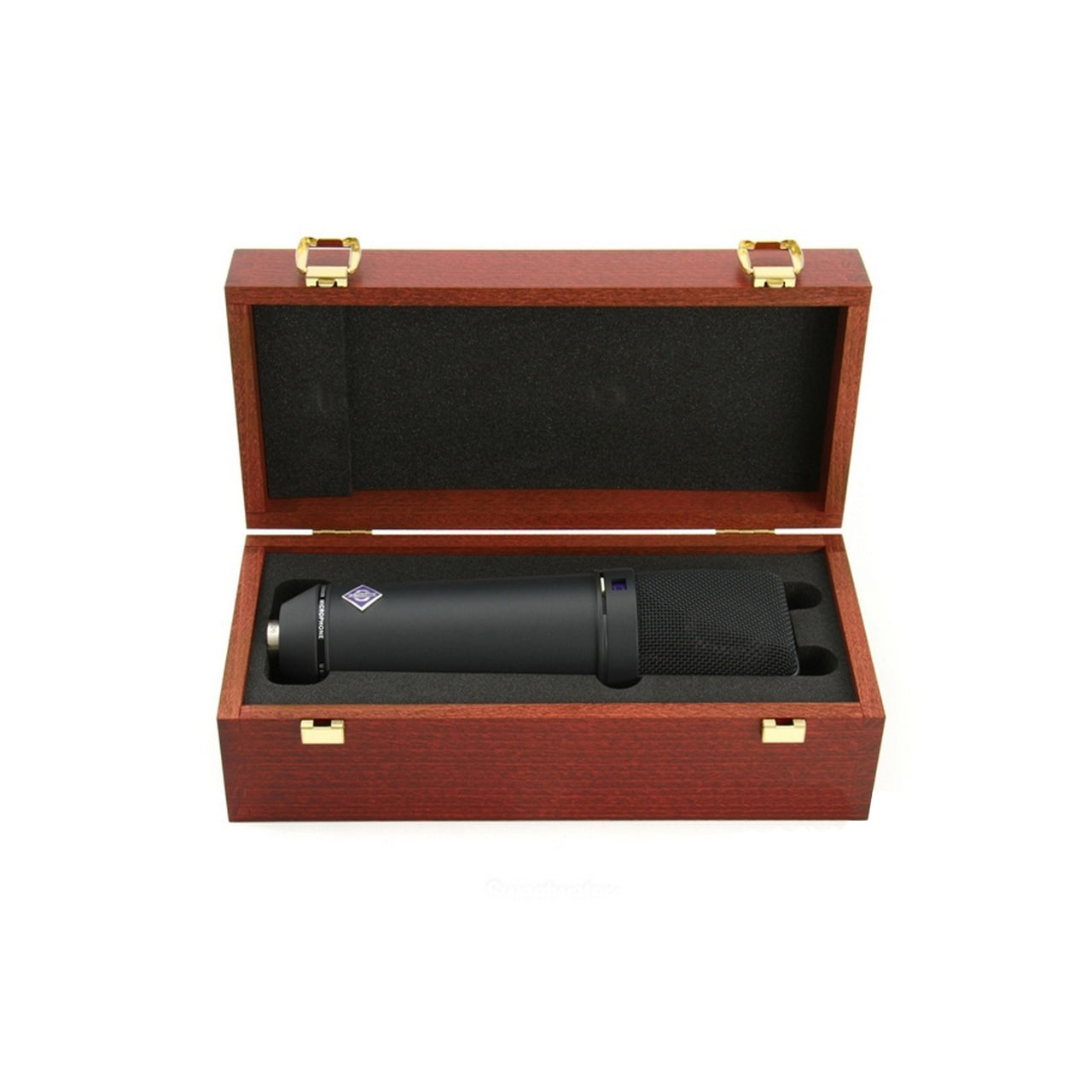

Neumann U 89 I MT Multi-Pattern Mic with K89 Capsule, Five Patterns, Pad, Filter, in Woodbox, Matte Black

The Neumann U89IMT Multi-Pattern Mic with K89 Capsule, Five Patterns, Pad, Filter, in Woodbox | Matte Black is a studio microphone for universal applications. The headgrille protects a dual-diaphragm capsule. A rotary switch below the headgrille selects from five different polar patterns. Therefore the microphone can be adapted easily to large sound sources, and those that are spread wide apart, or to sound sources to be recorded at a greater distance.

Key Features

Variable large diaphragm microphone
Pressure-gradient transducer with double membrane capsule
Five directional characteristics: omni, wide angle cardioid, cardioid, hypercardioid, figure-8
Thereby most versatile in all recording situations
Two-stage roll-off filter
Switchable 6 dB pre-attenuation
Extended frequency range in comparison to U 87 A

Technical Specs

Acoustical operating principle
Pressure gradient transducer
Directional pattern
Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
Frequency range
20 Hz … 20 kHz
Sensitivity at 1 kHz into 1 kohm
8 mV/Pa
Rated impedance
150 ohms
Rated load impedance
1 kohms
Equivalent noise level, CCIR
28 dB
Equivalent noise level, A-weighted
17 dB-A
Signal-to-noise ratio, CCIR (rel. 94 dB SPL)
66 dB
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL)
77 dB-A
Maximum SPL (tube characteristic) for THD < 0.5 %
134 dB
Maximum SPL (tube characteristic) for THD < 5 %
140 dB
Maximum output voltage
800 mV
Dyn. range of the mic. amplifier (A-weighted, 0.5 %)
117 dB
Supply voltage (P48, IEC 61938)
48 V ± 4 V
Matching connector
XLR 3F
Weight
400 g, 0.8 lbs
Diameter
46 mm
Length
185 mm
