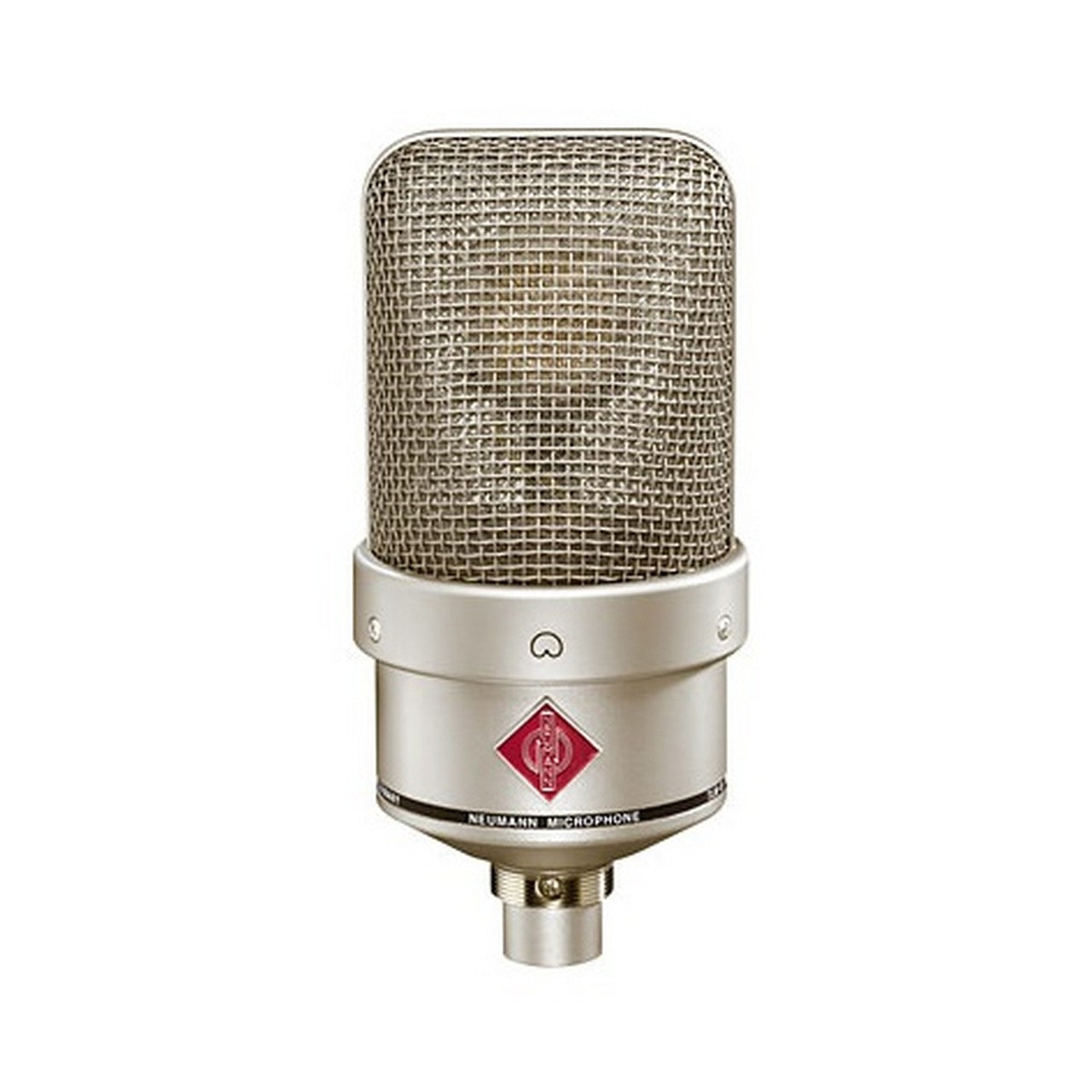

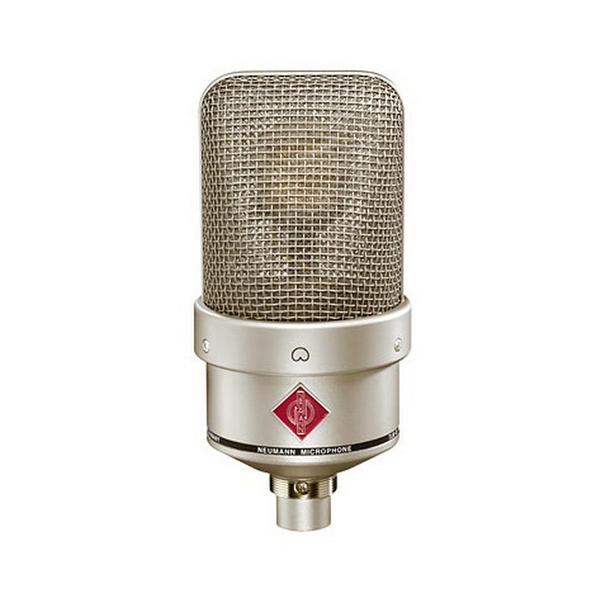

Neumann TLM 49 SET Cardioid Studio Microphone Nickel

Cardioid mic with K 49 capsule and vintage tube charater

Key Features

• Cardioid mic with K 49 capsule and vintage tube charater, includes EA 3 in carton box
• Sound profile optimized for vocal performance
• Pressure gradient transducer with the large-diaphragm capsule of the legendary U 47
• Cardioid characteristic
• Retro design
• Transformerless output circuitry
• Acoustically very open wire mesh headgrille
• Complete set with elastic suspension

Technical Specifications

Acoustical operating principle
Pressure gradient transducer
Directional pattern
Cardioid
Frequency range
20 Hz … 20 kHz
Sensitivity at 1 kHz into 1 kohm
13 mV/Pa
Rated impedance
50 ohms
Rated load impedance
1 kohms
Equivalent noise level, CCIR1)
23 dB
Equivalent noise level, A-weighted1)
12 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)
71 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)
82 dB
Maximum SPL for THD < 0.5 %2)
110 dB
Maximum SPL for THD < 5 %2)
129 dB
Maximum output voltage for THD < 5%2)
-1 dBu
Supply voltage (P48, IEC 61938)
48 V – 4 V
Current consumption (P48, IEC 61938)
3.2 mA
Matching connector
XLR 3F
Weight
825 g
Diameter
78 mm
Length
165 mm
