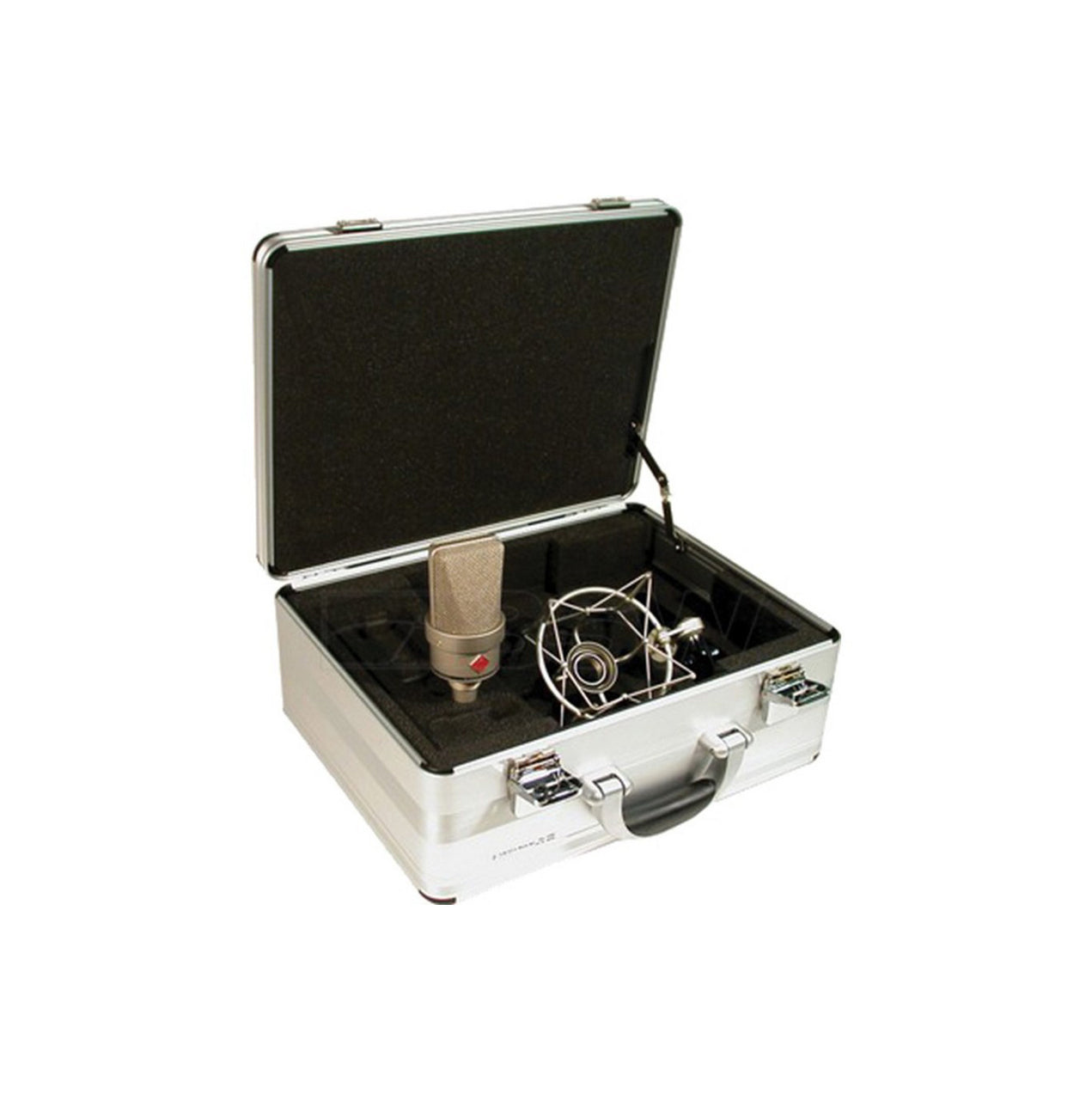

Neumann TLM 103 Set with EA1 and Aluminum Case Nickel

The Neumann TLM103ANNIVERSARY TLM103, EA1 and Aluminum Case | Nickel boasts a capsule drawn from the U 87 and transformerless circuitry – not to mention classic Neumann sound! The TLM 103 Anniversary is a great mic for any pro or project studio use and, due to its minimal self-noise, it’s been used for classical recordings with a wide dynamic range, sampling (especially for very low amplitude sources), and Foley work. This mic is also robust enough for the live stage, as Jack White has employed the TLM 103 to mic amps in live situations.

Key Features

Nickel finish
Large-diaphragm cardioid condenser microphone
Pressure gradient transducer with one-diaphragm capsule
Transformerless circuitry
Extremely low noise
Includes swivel mount
Minimal self-noise

Technical Specs

Acoustical operating principle
Pressure gradient transducer
Directional pattern
Cardioid
Frequency range
20 Hz … 20 kHz
Sensitivity at 1 kHz into 1 kohm
23 mV/Pa
Rated impedance
50 ohms
Rated load impedance
1 kohms
Equivalent noise level, CCIR
17.5 dB
Equivalent noise level, A-weighted
7 dB-A
Signal-to-noise ratio, CCIR (rel. 94 dB SPL)
76.5 dB
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL)
87 dB-A
Maximum SPL for THD 0.5 %
138 dB
Maximum output voltage
13 dBu
Dyn. range of the mic. amplifier (A-weighted, 0.5 %)
131 dB
Supply voltage (P48, IEC 61938)
48 V ± 4 V
Current consumption (P48, IEC 61938)
3 mA
Matching connector
XLR 3F
Weight
450 g, 1 lbs
Diameter
60 mm
Length
132 mm
