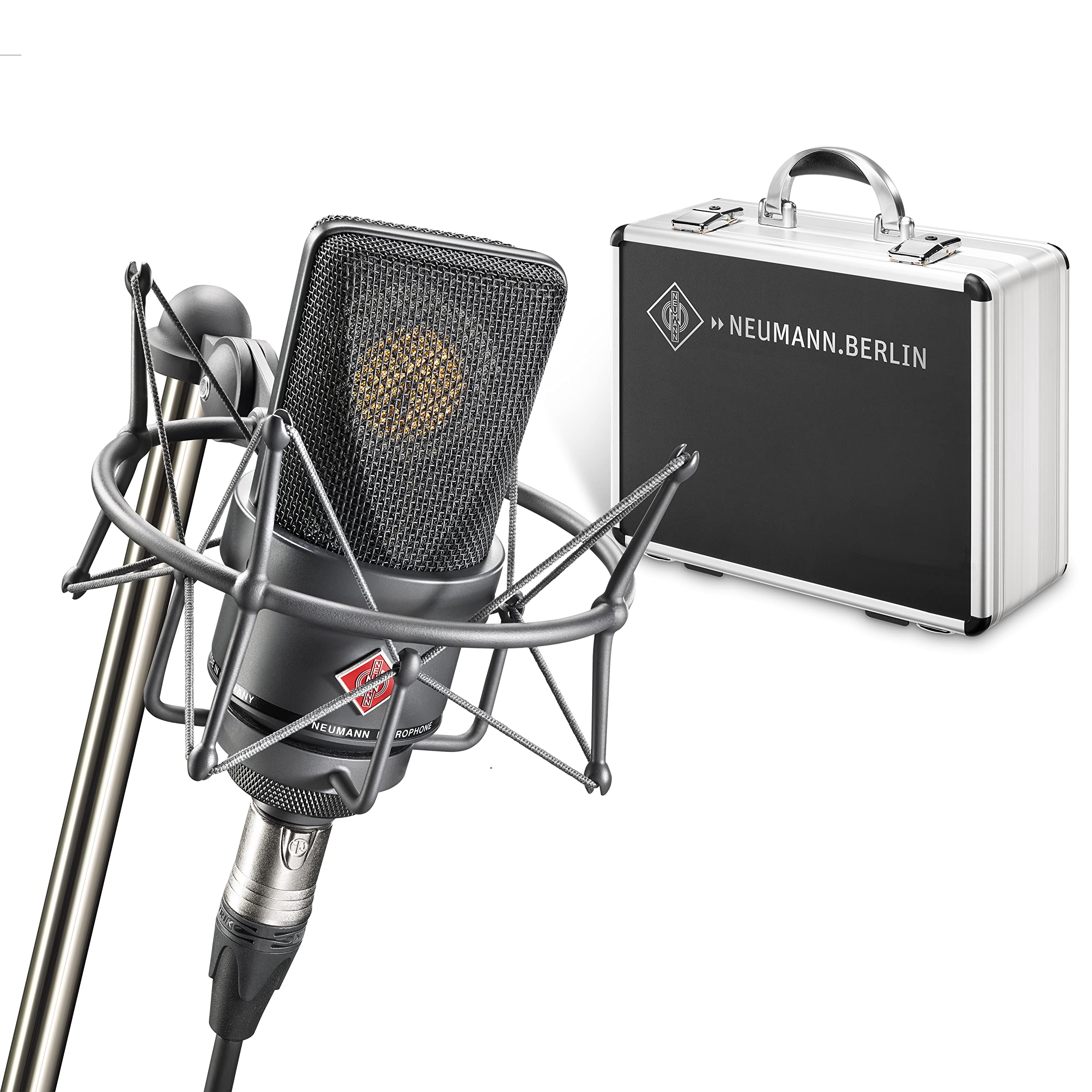

Neumann TLM 103-MT-Set Large Diaphgram Mono Set Condenser Studio Microphone Black

The TLM 103* is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget.

Key Features

• Black
• TLM 103 mt mono set
• Large diaphragm cardioid microphone, EA 1 mt and aluminum case
• Pressure gradient transducer with with one-diaphragm capsule
• Transformerless circuitry
• Extremely low noise: 7 dB-A
• Includes swivel mount
• Straightforward handling for homerecording and professional studios
• High-quality professional equipment for limited budgets

Technical Specifications

Acoustical operating principle
Pressure gradient transducer
Directional pattern
Cardioid
Frequency range
20 Hz … 20 kHz
Sensitivity at 1 kHz into 1 kohm
23 mV/Pa
Rated impedance
50 ohms
Rated load impedance
1 kohms
Equivalent noise level, CCIR1)
17.5 dB
Equivalent noise level, A-weighted1)
7 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)
76.5 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)
87 dB
Maximum SPL for THD 0.5%2)
138 dB
Maximum output voltage
13 dBu
Supply voltage (P48, IEC 61938)
48 V ± 4 V
Current consumption (P48, IEC 61938)
3 mA
Matching connector
XLR3F
Weight
approx. 450 g
Diameter
60 mm
Length
132 mm
