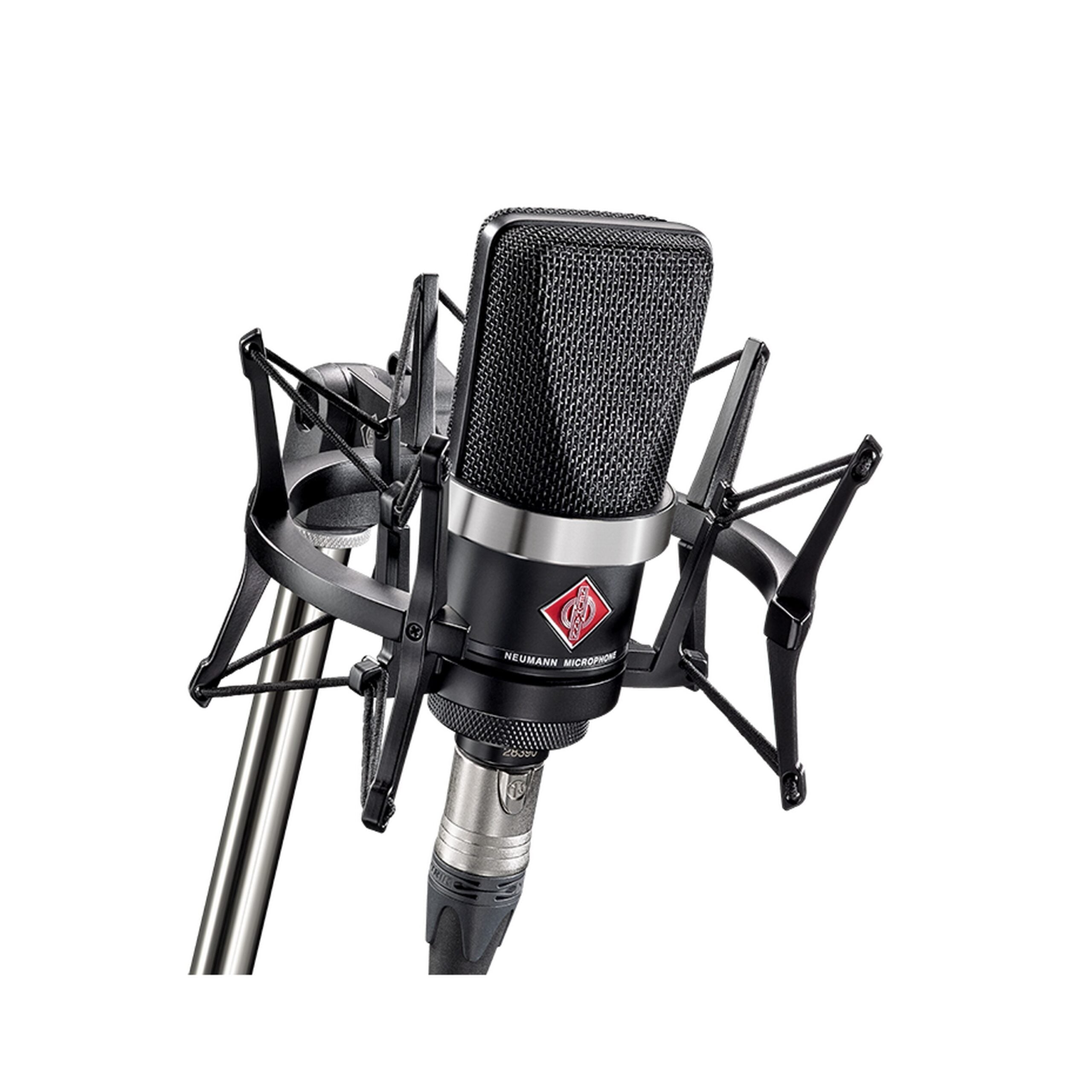

Neumann TLM 102 bk Studio Set Large Diaphragm Condenser Microphone, Black

The TLM 102 is Neumann’s most affordable large diaphragm condenser microphone. And, of course, it is a true Neumann, designed and manufactured in Germany with great attention to every detail. Compared to more expensive Neumann microphones, the TLM 102 is reduced in size and features, but Neumann would never compromise on sound quality. Despite its affordable price, the TLM 102 has a very attractive look with a gleaming chrome ring between a classic tapered headgrille and the famous Neumann diamond.

Key Features

• Compact microphone with genuine Neumann large diaphragm capsule
• Uniform cardioid pattern
• Transformerless circuitry for high SPLs without distortion
• Very low self-noise
• Gentle treble lift for silky highs
• Integrated pop screen

Technical Specifications

Acoustical operating principle
Pressure gradient transducer
Directional Pattern
Cardioid
Frequency Range
20 Hz … 20 kHz
Sensitivity at 1 kHz into 1 kohm
11 mV/Pa
Rated Impedance
50 ohms
Rated load impedance
1 kohms
Equivalent noise level, CCIR 1
21 dB
Equivalent noise level, A-weighted 2
12 dB-A
Maximum SPL for THD 0.5% 3
144 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL) 4
73 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 5
82 dB
Maximum output voltage
13 dBu
Supply voltage (P48, IEC 61938)
48 V ± 4 V
Current consumption (P48, IEC 61938)
3.5 mA
Matching connector
XLR 3 F
Weight approx.
210 g (260 g lt. BA)
Diameter
52 mm
Length
116 mm
