MIPRO MA-505EXP Passive Extension Speaker for MA-505 Free Shipping Fast Delivery

MIPRO MA-505EXP Passive Extension Speaker for MA-505

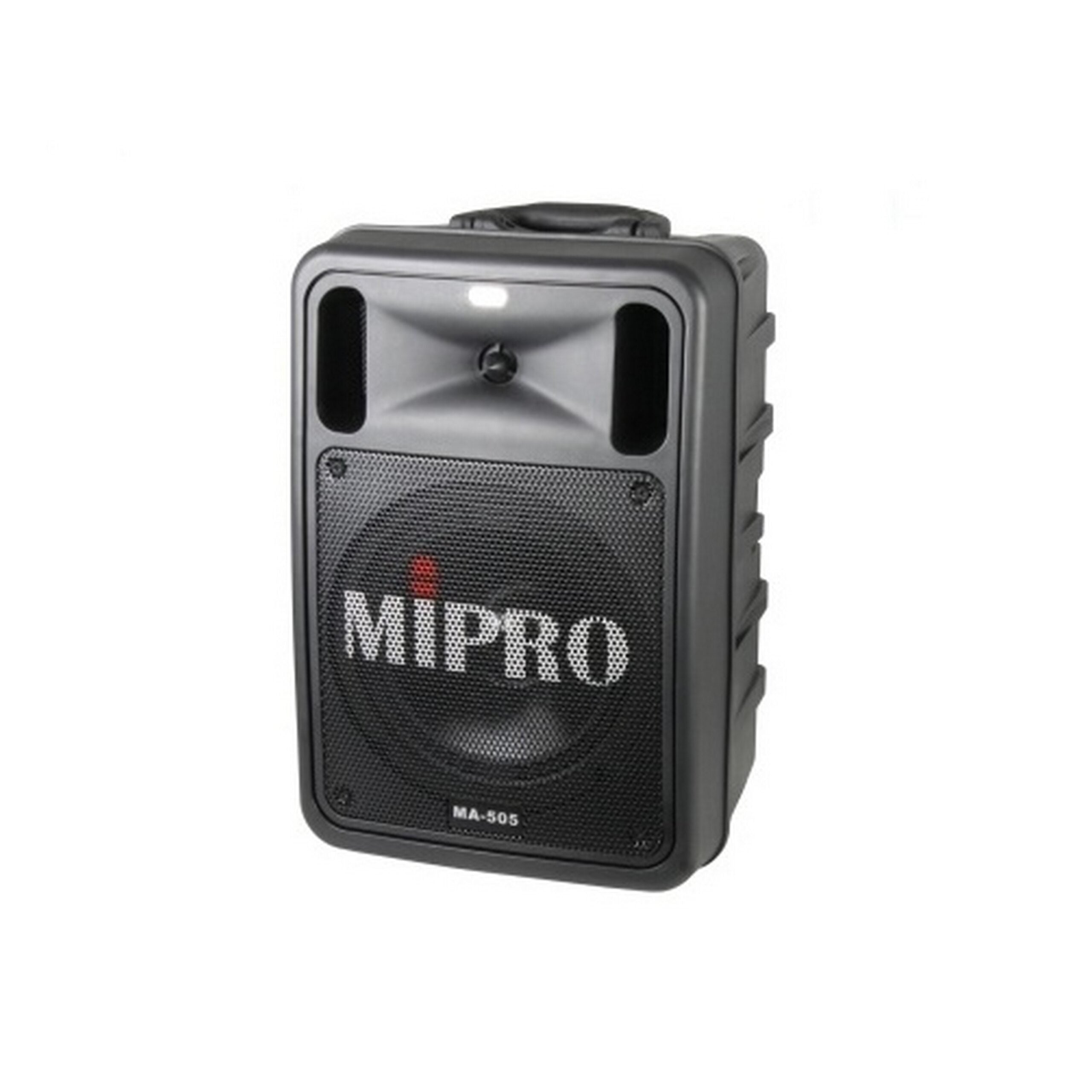

MA-505 delivers unparalleled audio performance and craftsmanship. The rugged one-piece speaker cabinet houses a high efficient class-D amplifier that drives high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound. Built-in digital audio player with optional CD player and interlinking transmitter/receiver package for extended transmission range. It offers an ideal public address solution for medium crowds.

Key Features

• Robust, rugged enclosure, 145-watt portable PA system with 8 ” woofer and 1 ” tweeter
• Up to 4 UHF or ISM band receiver modules and built-in active dual antennas for improved reception distance and stable signal quality
• Built-in active antenna prevents accidental antenna breakage
• CD/MP3 player or MP3 player & recorder, plus certified Bluetooth receiver for music streaming
• Voice Priority mutes music when a wireless mic is used
• Built-in one-button fade-in alarm/siren for warning
• Wirelessly link 2 or more MA-505 systems for more sonic coverage (industry’s only MT-91 transmitter module is required)
• Built-in AC-switching power supply for universal usage and fast battery charge
• Built-in storage compartment for AC power cable
• Can be powered via AC power or lithium rechargeable battery
• Weighs only 8.5 kgs | 18 lbs. fully loaded
• Ideal for medium sized crowds and applications

Technical Specifications

Portable PA
Max. Power Output
100 W (rms) / 4, 145 W (max) / 4
Amplifier
Class D
Sensitivity
Typical: 91 dB | Maximum: 109 dB
T.H.D.
< 1%
Frequency Response
50 Hz – 18 kHz
Speaker
1″ Tweeter & 8″ Woofer
Coverage
H 130° × V 90°
Audio Inputs
Wired: XLR×1 & 6.3 mm (1/4″)×1; Wireless: Up to 4. 2 Built-in & 2
External Detachable; Line-In: 3.5 mm (1/8 “) mini-jack
Bluetooth Connectivity
Yes
Audio Output
3.5 mm (1/8 “) mini-jack
Extension Speaker
Unbalanced 6.3 mm (1/4 “) jack
Volume
Innavidual volume control
Functions
VOP, Tone control or optional Echo control
Alarm Siren
Siren sound with fade-in mode
Storage
For AC power cable
Installation
Hand carry, Flat surface or on a speaker stand.
Power Supply
AC: Built-in 100 – 240 V AC switching power supply (Max. Power
Consumption: 165 W)
DC & Battery: External DC connector. Built-in 22.2V/4.5AH rechargeable
lithium (MB-35 × 1)
Charge Time
4 hours (automatic charging management)
Standby Time
> 8 hours
Battery Indicator
4-level LED indicator (25/50/75/100%)
Color
Black
Dimensions (W × H × D)
275 × 400 × 225 mm / 10.8 × 15.7 × 8.9 “
Weight
Approx. 8.5 kg / 18.7 lbs (MB-35 battery included)
Wireless System
Built-in Fixed Receiver
1 or 2 with Scan & ACT sync
Detachable Module Receiver
1 or 2 MRM-70B | MRM-70W | MRM-80 | MRM-24 | MRM-58
Frequency Range
MRM-70B | MRM-70W | MRM-80: UHF 480 – 934 MHz (country dependent)
MRM-24: 2.4 GHz
MRM-58: 5.8 GHz
Antenna
Built-in proprietary active high efficiency antenna
