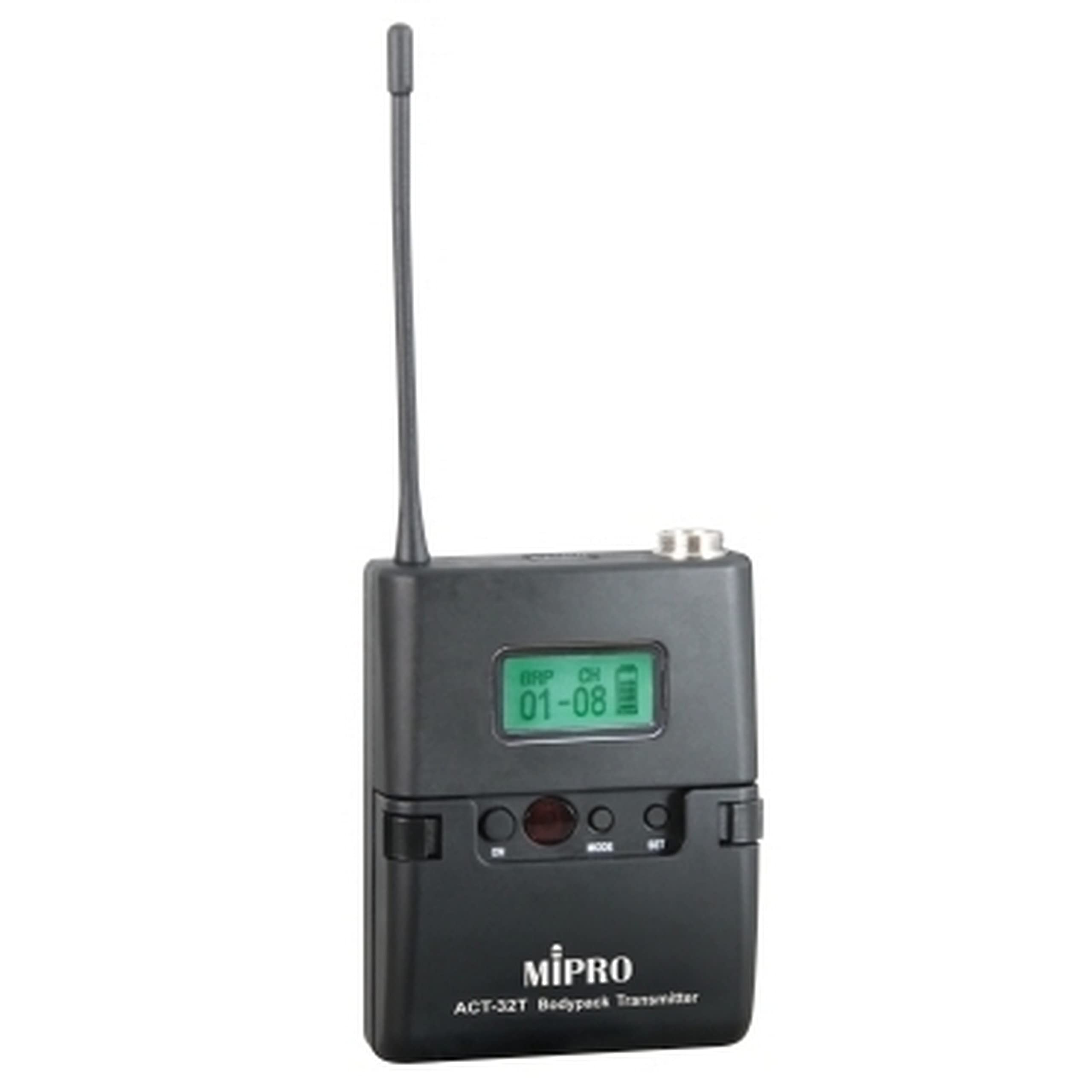

MIPRO ACT-32T UHF Bodypack Transmitter Limited Edition Online

The MIPRO ACT-32T UHF Bodypack Transmitter is a powerful and user-friendly wireless audio solution designed for professional applications. Building on three generations of MIPRO’s ACT technology, the ACT-32T boasts improved RF circuitry, a durable miniature housing, and efficient low-power consumption.

The ACT-32T’s lightweight and compact design with a sturdy plastic housing makes it comfortable for singers, presenters, musicians, and fitness instructors to wear throughout long performances or presentations. A backlit LCD clearly displays settings and status, while the innovative battery cover protects buttons from accidental changes. The mini-XLR input with secure screw lock connector offers flexible connectivity for lavalier, headworn mics, and guitars. A selectable impedance switch ensures a perfect match for your microphone or instrument.

The MIPRO ACT-32T delivers reliable performance with stable PLL circuits and MIPRO’s ACT technology for automatic frequency synchronization. A dedicated mute button with a remote-control jack allows for quick muting, while the silent on/off switch provides discreet operation. An adjustable belt clip lets you wear the transmitter upright or downwards for optimal positioning, ensuring comfort and ease of use throughout your entire performance. With long-lasting battery life of 12-14 hours on 2 AA batteries, the MIPRO ACT-32T UHF Bodypack Transmitter is a perfect choice for professionals who require a reliable and versatile wireless audio solution.

Key Features

• Easy activation of mute function with remote-control jack for the mute button
• Seamless compatibility with both high and low input impedance for microphones or guitars, eliminating the need for switching
• Lavaliere/headworn mics and guitars can be securely connected through the Mini-XLR input with a screw lock connector
• Transmitter can be worn in either an up or down position thanks to the adjustable belt clip
• 2 AA batteries can provide 12~14 hours of operation (battery quality dependent) due to the high-efficiency circuitry design

Technical Specifications

Frequency Range
UHF 480 – 934 MHz
Bandwidth
24 MHz
Oscillation Mode
PLL Synthesized
Channel Set-Up
ACT Sync
RF Output Power
10 mW / 50 mW (switchable)
Deviation
< ± 40 kHz
Spurious Emissions
≦ -55 dBc
LCD Display
Group, Channel, Frequency, AF gain, Frequency band, RF power, Mute mode, Lock status, Battery status and error codes
Max. Input Level
0 dBV
Mute Connector
Optional MJ-70 remote mute switch
Battery Type
2 AA alkaline
Operating Time
Min. 12 hours
Current Consumption
High Power
Approx. 161 mA
Low Power
Approx. 120 mA
Dimensions (W × H × D)
63 × 82 × 22 mm / 2.5 × 3.2 × 0.9”
Net Weight
Approx. 83 g / 2.9 oz
