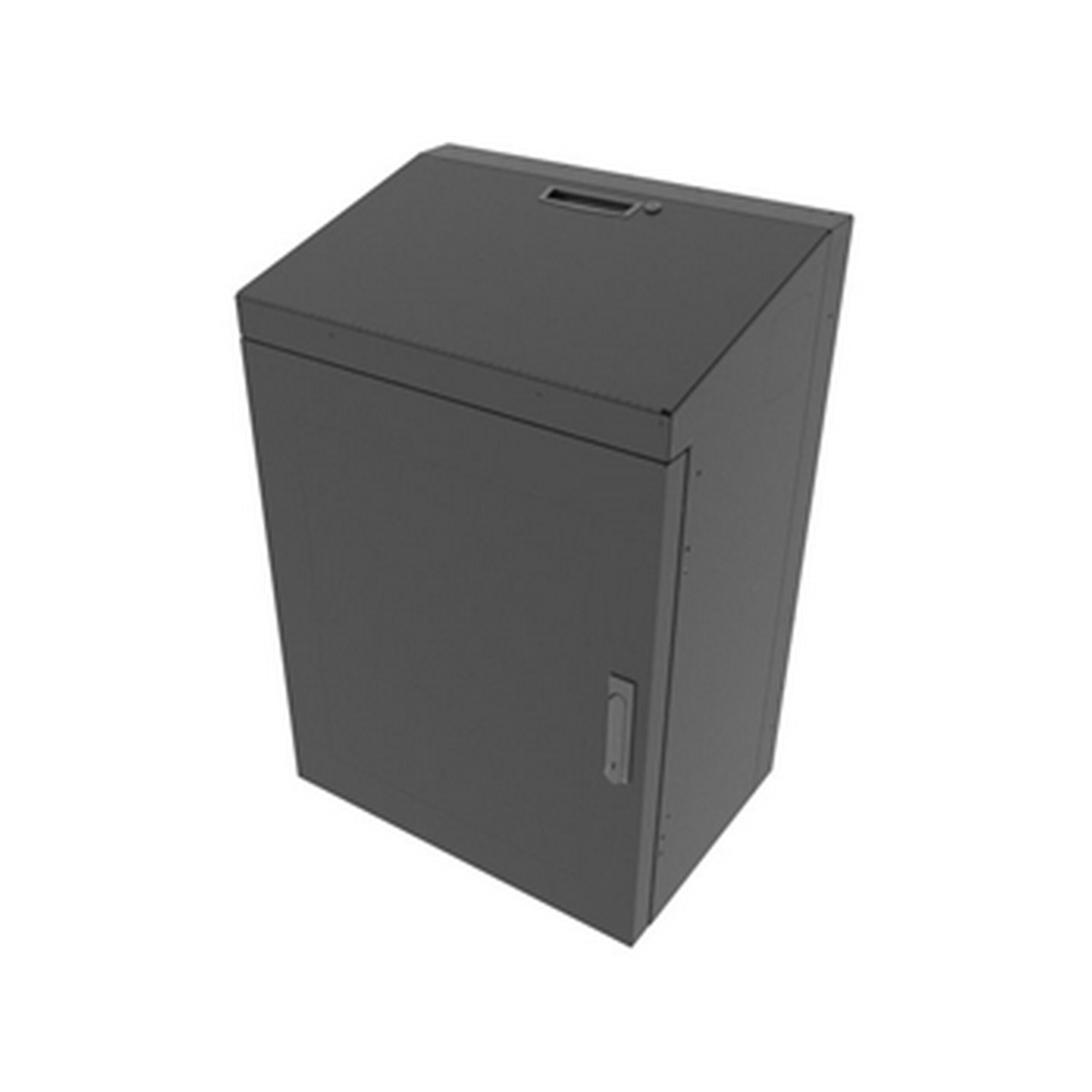

Middle Atlantic VWM-SD-6-36K-BW 6 Space Low Profile Wall Rack, Solid Top, Black Finish Classic

Middle Atlantic VWM-SD-6-36K-BW 6 Space Low Profile Wall Rack, Solid Top, Black Finish

Replaces WRS-6

Pre-Configured, 6 Space, Low Profile Wall Rack with 30” of Useable Depth and Solid Top, Black Finish

With a low-profile, patent-pending design, this pre-configured VWM Series Wall Cabinet is ideal for vertically mounting deeper equipment in a “knobs-up” orientation within 6 spaces and 30” usable depth. It includes everything needed for a simple solution, but also can support additional customization in Lever Lock small device mounting within the cabinet and/or on the door, thermal management, cable management and power distribution for a complete system that ensures uptime and reliability on the wall.

Key Features

• 6 spaces and 30” of usable depth for vertical “knobs up” equipment mounting
• Rackrail features both 10-32 thread and cage nut
• Flexible position spaces to mount the rackrail where it’s needed
• Split door with hinged solid top that enables end-user access to controls but restricted visibility
• Both door and hinged top are lockable and keyed separately for security
• Laser knockouts on the top, bottom and sides for cable entry and thermal management
• Integral electrical box simplifies power distribution
• Finished in a black textured powder coat

Technical Specifications

GENERAL INFO
Finish: Black Powder Coat
UL Standards Tested: UL 2416
LISTING AGENCIES/THIRD PARTY CERTIFICATIONS
RoHS: Yes
Greenguard: Yes
CSA Listing Info: 60950-1
CSA Listed: Yes
UL Listing No: E313734
DIMENSIONS
Usable Depth: 27.8 with J-Box
Capacity Weight (US): 150
Depth (US): 18
Height (US): 36
Width (US): 25
Rack Units: 6
TECHNICAL INFORMATION
Rackrail Type: 10-32 and cage nut
UL Load Capacity: 150
Material: Steel
Mounting: Vertical
