Mackie Onyx16 16-Channel Analog Mixer with Multi-Track USB Clearance Official

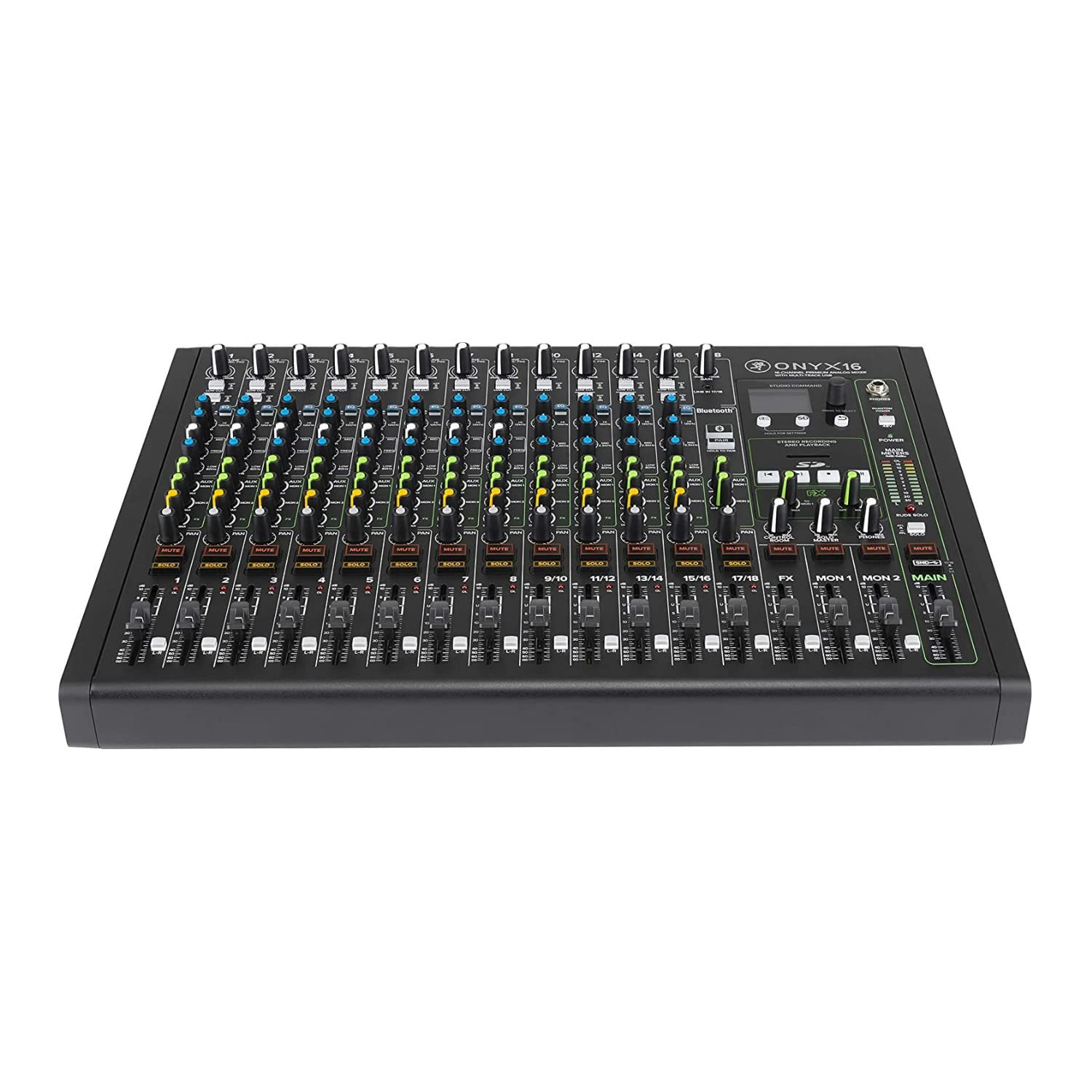

Mackie Onyx16 16-Channel Analog Mixer with Multi-Track USB

The Mackie Onyx16 16-Channel Premium Analog Mixer with USB is the ultimate compact solution for live audio, home recording, and content creation. Designed for professionals seeking high-fidelity sound, this mixer features 24-Bit / 96kHz multitrack recording, award-winning Onyx mic preamps, and an ultra-low-noise design. Whether you’re capturing live performances, crafting studio recordings, or streaming content, the Onyx16 delivers superior sound quality. Packed with powerful DSP effects, a British-style Perkins EQ, a vibrant full-color display, and integrated SD card recording and playback capabilities, the Onyx16 ensures you have the tools you need for any audio project.

The Onyx16 is equipped with 12 award-winning Onyx mic preamps that offer up to 60dB of gain and premium analog circuitry to maintain studio-quality sound with minimal noise. The mixer provides flexible routing options through its analog/USB channel strips, and the Perkins EQ with a sweepable midrange lets you achieve the classic sound of the 60’s and 70’s. Combined with robust digital effects, SD card recording, and Bluetooth streaming options, the Onyx16 caters to all your audio needs. Perfect for musicians, content creators, and audio engineers, this mixer is your go-to tool for capturing every detail with crystal clear precision.

Key Features

• 12 award-winning Onyx mic preamps provide up to 60dB of gain
• Premium analog circuitry delivers studio-quality sound
• Analog/USB channel strips with flexible routing
• Legendary Perkins “British style” EQ with sweepable midrange
• Robust digital effect engine with user-customizable reverbs and delays
• Record and Playback via SD Card or USB
• High-resolution 96kHz / 24-bit multi-track recording to Mac/PC via USB
• Direct to SD card stereo recording and playback
• Channel-assignable 4-track USB return (2 stereo pairs)
• Send your Main Mix to USB via a dedicated switch
• Studio Command – Powerful and Intuitive Full-Color Display
• Dedicated physical buttons for Previous, Next, Record, and Play/Pause
• Store up to 6 user FX presets for easy recall
• Professional High-Resolution FX Processor
• Utilize built-in effects for live performances, streams, and beyond
• Bluetooth Streaming – Go Wireless
• Pair your Bluetooth enabled device and stream audio directly to a channel on the mixer

Specifications

• 3-band Perkins EQ with On/Off hard bypass switch on all channels
• Hi-Z switches for direct connection of instruments
• 100Hz low-cut filter and 48V phantom power on all mic channels
• Stereo 1/8” input and Bluetooth streaming
• Stereo line inputs
• Aux/Monitor outputs with dedicated per-channel send control
• Dedicated Control Room outputs
• Headphone output with dedicated level control
• L/R Assign switch per channel
• 12-segment stereo meters
• Overload indicators on all channels
• PFL/AFL channel solo
• Footswitch input for FX Mute (footswitch not included)
• Backlit Mute and Solo buttons
• Sealed rotary encoder resists dust and grime
• Built-Like-A-Tank heavy steel chassis
• Rugged, QuickGrip side cheeks offer convenient mobility and protection

Package Contents

• Mackie Onyx16 16-Channel Analog Mixer
• Power Supply
• User Manual
