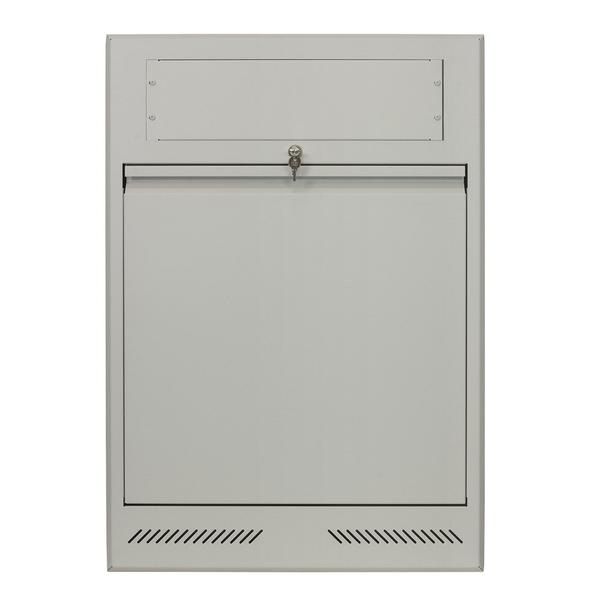

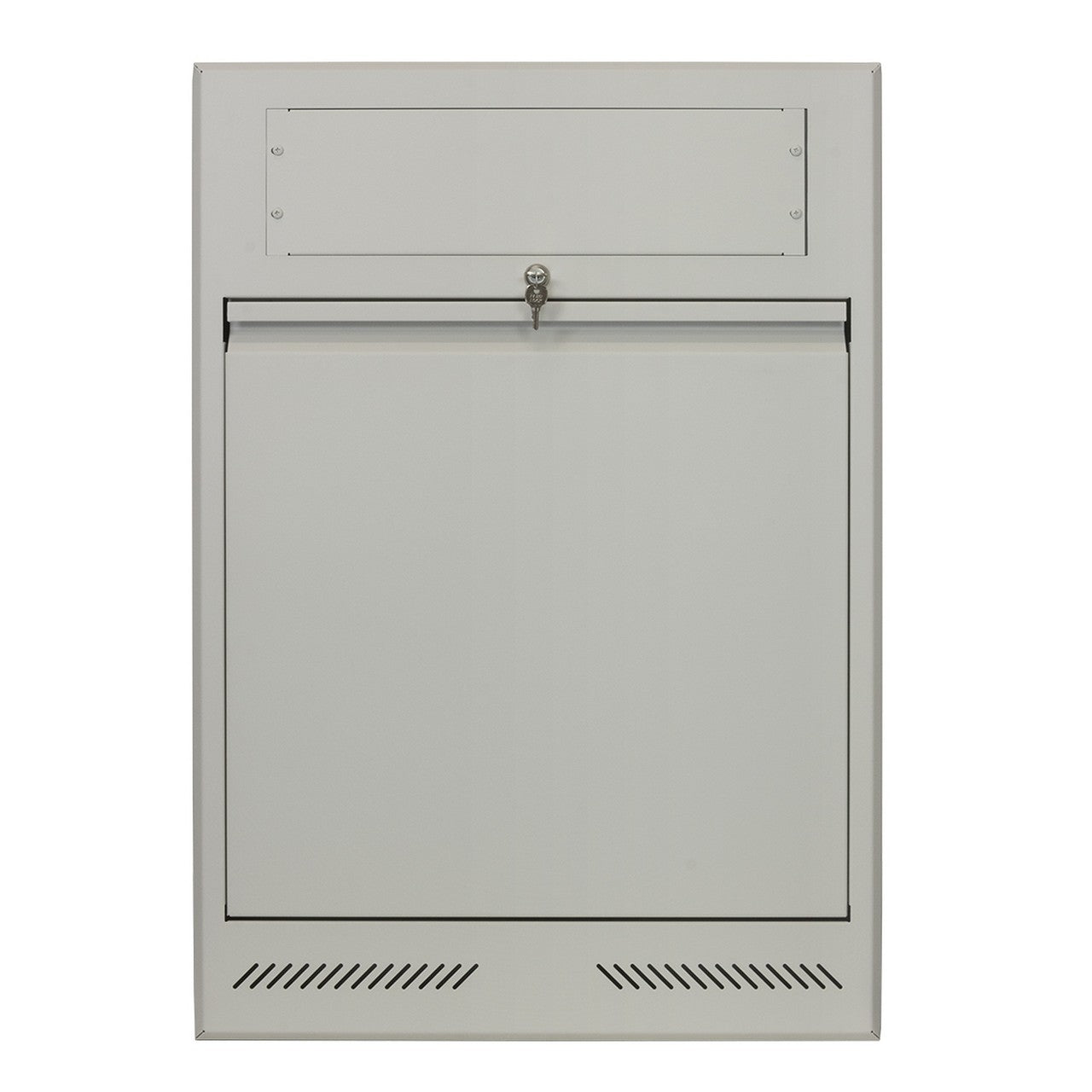

Lowell LTR-320S Rack-Wall Tiltout 3U, Surface

Tilt-open wall rack for amplifiers, mixers, PA systems, or consumer electronics, stores 19 inch wide equipment out of the way, holding it vertically until front panel is lowered for operation or servicing. Ideal for schools, training facilities, retail outlets, and similar areas with limited space for electronics.

Key Features

• Surface-mount wall rack features steel construction with beveled edges and Network Grey finish, vents in front and base, and compound knockouts for cables (top and base).
• Main compartment tilts open 18 degrees for equipment operation, 105 degrees for servicing. Includes integral handle, key lock, 1 pair adj. mounting rails, and a clamping bracket to secure equipment. Factory-installed E.O. box and DIN rail in base.
• Removable 3U top panel for accessories.
• Pilot Point screws with captive washers
• Load capacity 100 lbs.

Technical Specifications

Panel Space
3U (vertical)
Rack Height
35.00 in.
Rack Width
24.50 in.
Rack Depth
6.88 in.
Useable Depth
First panel space max. 18 in., 2-3 spaces max. 20 in.
