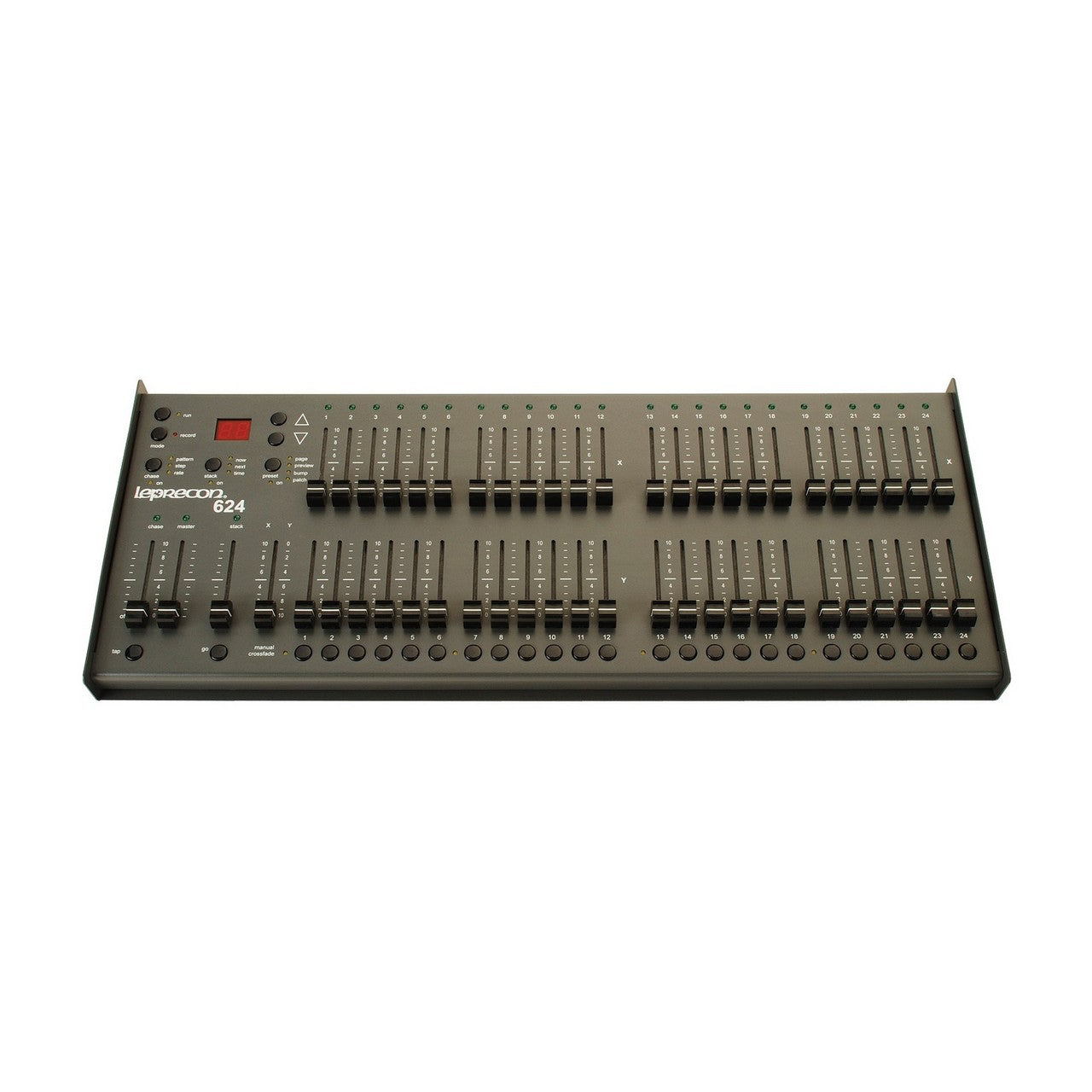

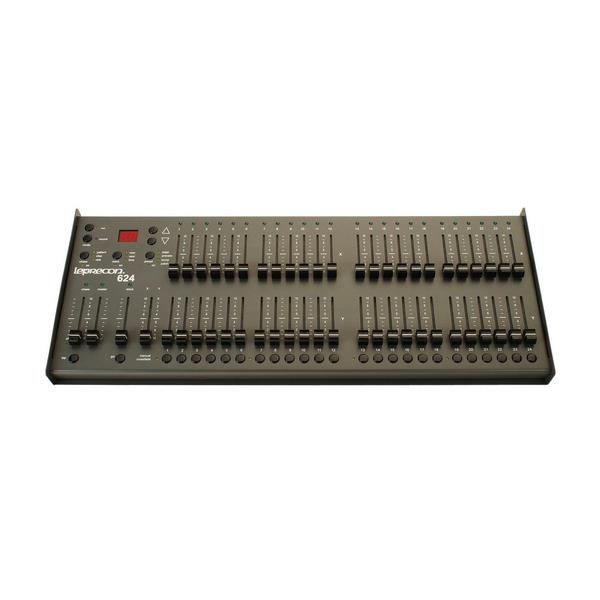

Leprecon LP-624 Microplex DMX Console

The compact LP600 series stage lighting consoles are fully featured, easy to operate, and designed to withstand the most demanding conditions. Combining high-performance with an intelligent layout allows users to operate the lighting console in manual or memory mode. Available in 12 or 24 channels, the LP612 and LP624 consoles come equipped with DMX and Microplex and are an industry standard for rental houses, small theatres, Houses of Worship, A / V companies, and schools.

Key Features

• Two Scene Preset Mode
• 4 pages of Memory
• Softpatch
• “Go” Button with Timed Fades

Technical Specifications

120V External power supply 1215 VAC, 1 Amp
3pin microplex and 5pin DMX512 standard
Analog 010V via Cinch Jones optional
Channel
24
Two Scene Preset
Yes
Softpatch
Yes
Preset Faders
24
Preset Memories
96
Cue Stack
Yes
Go Button
Yes
Bump Buttons
Yes
Dipless Crossfader
Yes
Chase Memory
11 Patterns24 Steps Real Level Memories
Microplex Output
3pin Microphone cable
DMX Output
5pin XLR
Times Fades
Yes
Blind Edit
Yes
120V External power supply
1215 VAC, 1 Amp
Weight lbs (packaged)
13
Height, Width, Depth (inches)
2.87 x 25.375 x 10.13
Analog Output
(1 each) 27pin CJ Male
Dust Cover
Gray vinyl with Lepecon logo
