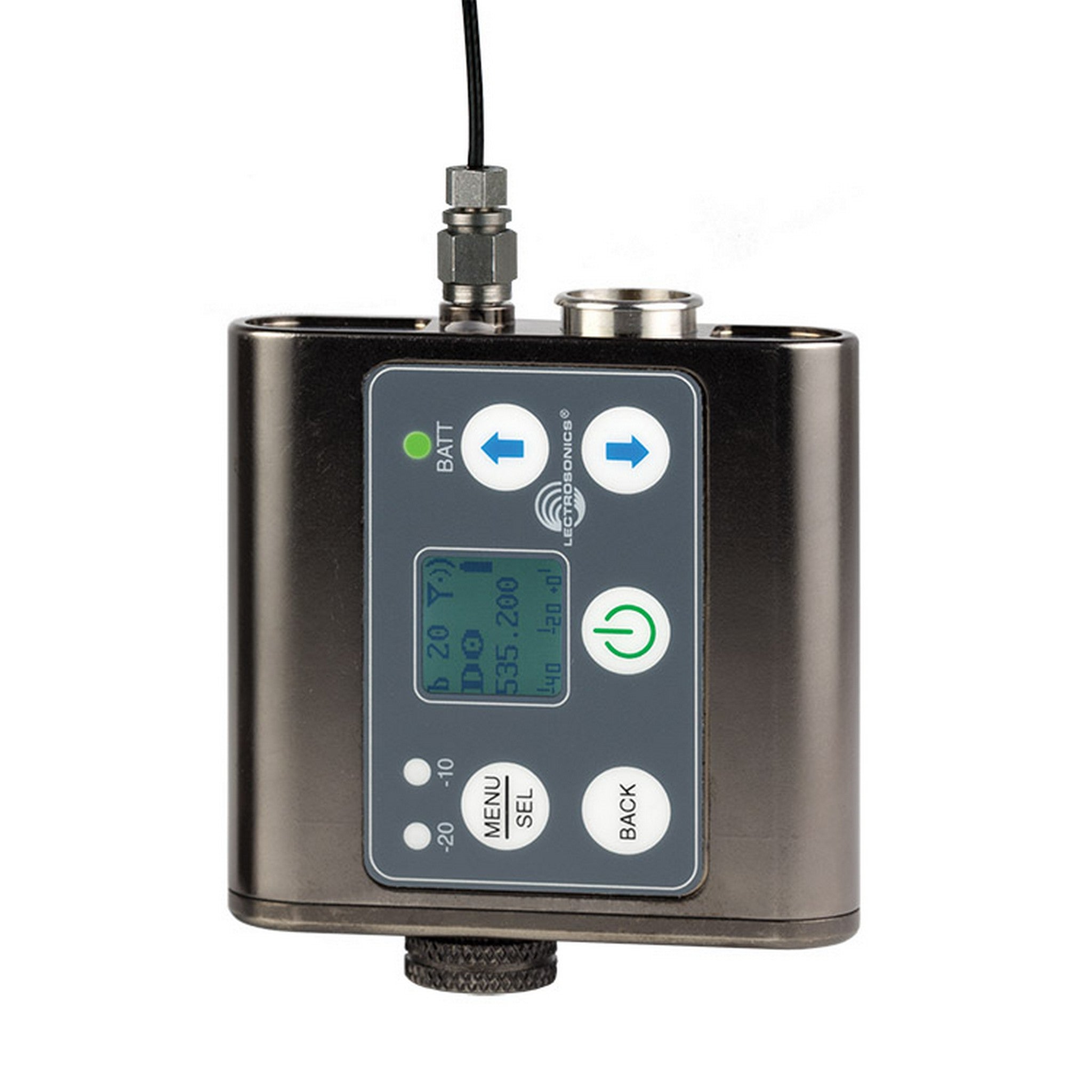

Lectrosonics SMDWB Miniature Wideband Transmitter, B1 537.600 – 607.950 MHz

To meet the demands for a variety of RF environments and applications, the “WB” series SM transmitters offer selectable output power of 25, 50 and 100 mW (25 and 50 mW for export versions). With higher power output, the operating range is improved, or, a more secure link can be relied upon for high RF noise environments. Battery life is unchanged with the different RF power selections.

The transmitters offer hands-free setup and adjustment using audible tones. They can be put to sleep to conserve battery power during setup while buried inside costuming, then awakened for normal operation when the production begins. Other features include input gain adjustment in 1 dB increments over a 44 dB range and adjustable low-frequency audio roll-off for 3 dB down points at 35, 50, 70, 100, 120 or 150 Hz to control subsonic and very low-frequency audio content.

Key Features

• Ultra-lightweight, corrosion resistant housing
• Water resistant seals for use in damp environments
• LCD interface with lockout option
• Programmable compatibility modes for use with a wide variety of different receivers
• Servo Bias input circuitry
• IR (infrared) port for fast setup
• Covers 3 frequency blocks
• Update firmware in the field via Micro SD card reader
• Alternate use as recorder on an internal microSDHC memory card

Technical Specifications

Operating frequencies
Band A1 470.100 – 537.575
Band B1 537.600 – 607.950
Channel Spacing
Selectable; 25 or 100 kHz
RF Power output
25, 50 or 100 mW
Compatibility Modes
Nu Hybrid, Mode 3, IFB
Pilot tone
25 to 32 kHz
Frequency stability
± 0.002%
Spurious radiation
Compliant with ETSI EN 300 422-1
Equivalent input noise
-125 dBV, A-weighted
Input level
If set for dynamic mic, 0.5 mV to 50 mV before limiting
Greater than 1 V with limiting
If set for electret lavaliere mic, 1.7 uA to 170 uA before limiting
Greater than 5000 uA (5 mA) with limiting
Line level input, 17 mV to 1.7 V before limiting
Greater than 50 V with limiting
Input impedance
Dynamic mic, 300 Ohms
Electret lavaliere, Input is virtual ground with servo adjusted constant current bias
Line level, 2.7 k ohms
Input limiter
Soft limiter, 30 dB range
Bias voltages
Fixed 5 V at up to 5 mA
Selectable 2 V or 4 V servo bias for any electret lavaliere
Gain control range
44 dB; panel mounted membrane switches
Modulation indicators
Dual bicolor LEDs indicate modulation
-20, -10, 0, +10 dB referenced to full modulation
Controls
Control panel w/ LCD and 4 membrane switches
Low frequency roll-off
Adjustable from 35 to 150 Hz
Audio Frequency Response
35 Hz to 20 kHz, +/-1 dB
Total Harmonic Distortion
0.2% typical (400 Series mode)
Audio Input Jack
Switchcraft 5-pin locking (TA5F)
Antenna
Flexible, unbreakable steel cable.
Battery
AA, disposable, Lithium recommended
+1.5VDC
Weight w/ battery(s)
SMWB 3.2 oz. (90.719 grams)
SMDWB 4.8 oz. (136.078 grams)
Overall Dimensions
SMWB 2.366 x 1.954 x 0.642 inches; (without microphone) 60.096 x 49.632 x 16.307 mm
SMDWB 2.366 x 2.475 x 0.642 inches; 60.096 x 62.865 x 16.307 mm
Emission Designator
110KF3E

Recorder
Storage media
microSDHC memory card
File format
.wav files (BWF)
A/D converter
24-bit
Sampling rate
44.1 kHz
Input Type
Analog mic/line level compatible; servo bias preamp for 2V and 4V lavaliere microphones
Input level
Dynamic mic, 0.5 mV to 50 mV
Electret mic, Nominal 2 mV to 300 mV
Line level, 17 mV to 1.7 V
Input connector
TA5M 5-pin male
Frequency response
20 Hz to 20 kHz; +0.5/-1.5 dB
Dynamic range
110 dB (A), before limiting
Distortion
< 0.035%
Operating temperature range
Celsius -20 to 40
Fahrenheit -5 to 104
Included Accessories
1 – PSMWB Pouch
2 – 35924 Foam Insulating Pads
1 – 55010 16GB Flash memory card
1 – 40073 AA LITHIUM
1 – AMMXX Antenna (Chart)
1 – SMKITTA5 Mic Connector Kit
1 – SMWBBCUPSL Belt Clip w/instructions (unmounted)
1 – SM SILVER Paste
1 – Instruction Manual
