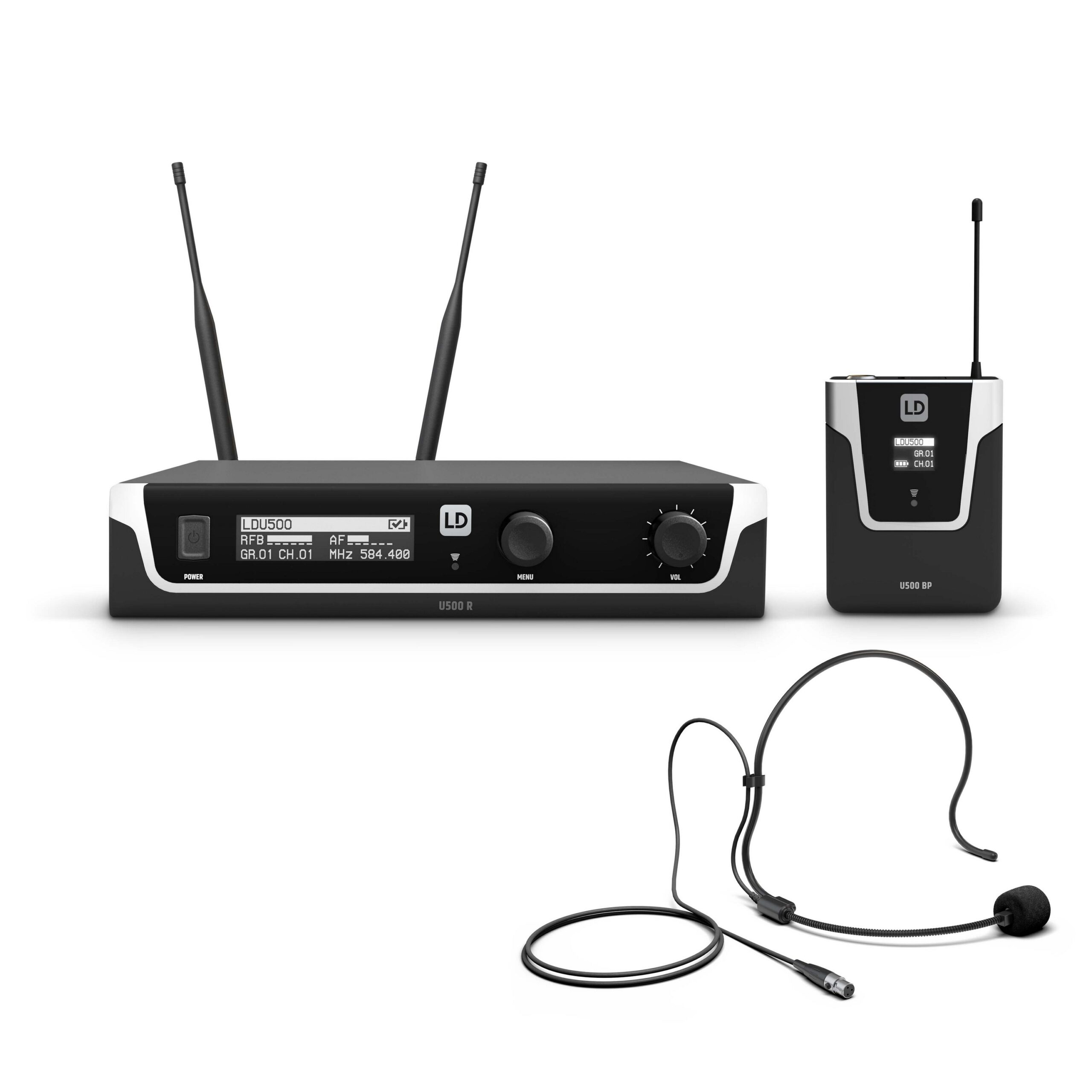

LD Systems U505 BPH Wireless Microphone System with Bodypack and Headset, 584-608 MHz

The U500 Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience. Selectable transmit power up to 30 mW provides the U500 vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 – 608 MHz and 655 – 679 MHz, where 12 systems can be operated simultaneously, and 823 – 832 MHz + 863 – 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronization of transmitter and receiver to facilitate easy set up.

Key Features

• True naversity UHF wireless system
• Shock-mounted dynamic and condenser microphone capsules
• Automatic channel scan
• Easy one-touch infrared frequency syncing
• Pilot tone squelch circuit prevents noise
• Switchable RF transmitter output (2, 10 or 30 mW)
• Rugged enclosures
• High-contrast OLED display

Technical Specifications

LDU505R – LD Systems U505 BPH Receiver
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Antenna inputs
2
Antenna connector
BNC
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.3 %
Signal-to-noise ratio
> 100 dB
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack
Max. output level
+10 dBu
Controls
volume
Operating voltage
12 – 18 V DC
Operating voltage
12 V DC, 500 mA
Width
212 mm
Height
44 mm
Depth
159 mm
Weight
0,85 kg
Accessories (included)
power adapter
Other features
Pilot tone
LDU505BP – LD Systems U505 BPH Bodypack transmitter
Transmission frequency range
584 – 608 MHz
Type
Bodypack
Channels
96 (8 groups of 12 channels)
Groups
8
Inputs
Mini-XLR (3-pin)
Frequency response
30 – 16000 Hz
Rated HF output power
Variable (2mW, 10mW, 30mW)
Signal-to-noise ratio
>90 dB
Indicators
OLED Display
Operating time
>10 h (with alkaline batteries)
Controls
Set
Operating voltage
2 x AA battery
Width
65 mm
Height
86 mm
Depth
23 mm
Weight
0,09 kg
Other features
switchable RF power
LDWS100MH1 – LD Systems U505 BPH Headset
Type
Headsets
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Frequency response
20 – 20.000 Hz
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Weight
0,049 kg
Accessories (included)
Foam windscreen
