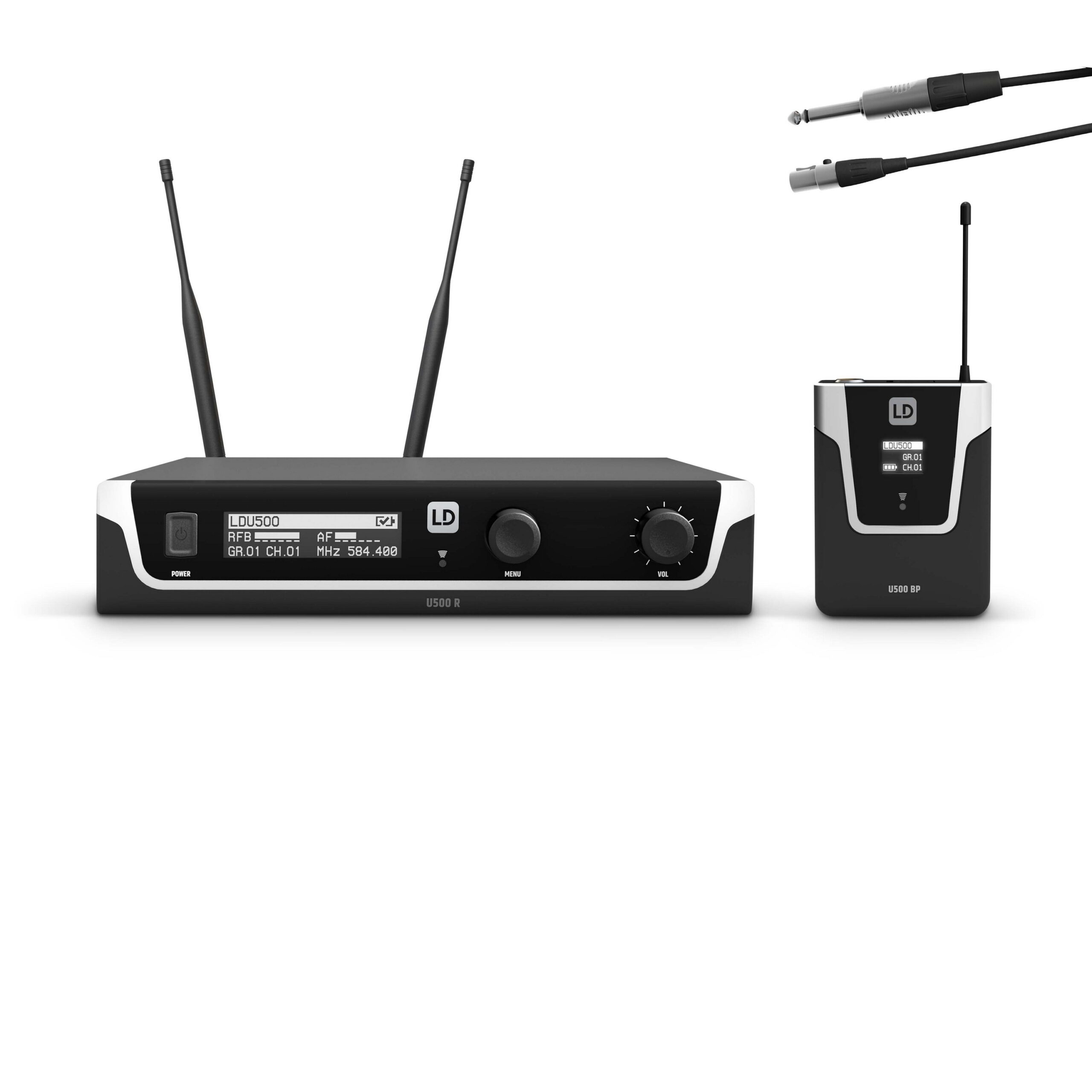

LD Systems U505 BPG Wireless Microphone System with Bodypack and Guitar Cable, 584-608 MHz

Whether you play guitar, bass or a wind instrument, the U500 wireless systems were developed in Germany to bring you affordable professional technology and sound quality. The instrument sets deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience. Selectable transmit power up to 30 mW provides the U500 instrument sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 – 608 MHz and 655 – 679 MHz, where 12 systems can be operated simultaneously, and 823 – 832 MHz + 863 – 865 MHz, where six systems can be operated at the same time. The Bodypack’s gain control allows attenuation of up to 27 dB to suit both active and passive guitars and basses or high sound pressure wind instruments, thus ensuring a distortion-free audio signal. Even the lowest bass notes are cleanly transmitted, thanks to the frequency response which extends down to 30 Hz. In addition, output impedance and level are switchable on the receiver to facilitate direct connection to guitar and bass amplifiers.

Key Features

• True naversity UHF wireless system
• Shock-mounted dynamic and condenser microphone capsules
• Automatic channel scan
• Easy one-touch infrared frequency syncing
• Pilot tone squelch circuit prevents noise
• Switchable RF transmitter output (2, 10 or 30 mW)
• Rugged enclosures
• High-contrast OLED display

Technical Specifications

LDU505R – LD Systems U505 BPG Receiver
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Antenna inputs
2
Antenna connector
BNC
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.3 %
Signal-to-noise ratio
> 100 dB
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack
Max. output level
+10 dBu
Controls
volume
Operating voltage
12 – 18 V DC
Operating voltage
12 V DC, 500 mA
Width
212 mm
Height
44 mm
Depth
159 mm
Weight
0,85 kg
Accessories (included)
power adapter
Other features
Pilot tone
LDU500GC – LD Systems U505 BPG Instrument cable for U500 series bodypack
Connector 1
Mini-XLR (3-pin, female)
Type
Guitar Cables
Connector 2
6.3 mm jack
Cable Length
0.8 m
Weight
0,045 kg
LDU505BP – LD Systems U505 BPG Bodypack transmitter
Type
Bodypack
Transmission frequency range
584 – 608 MHz
Channels
96 (8 groups of 12 channels)
Groups
8
Inputs
Mini-XLR (3-pin)
Frequency response
30 – 16000 Hz
Rated HF output power
Variable (2mW, 10mW, 30mW)
Signal-to-noise ratio
>90 dB
Indicators
OLED Display
Operating time
>10 h (with alkaline batteries)
Controls
Set
Operating voltage
2 x AA battery
Width
65 mm
Height
86 mm
Depth
23 mm
Weight
0,09 kg
Other features
switchable RF power
