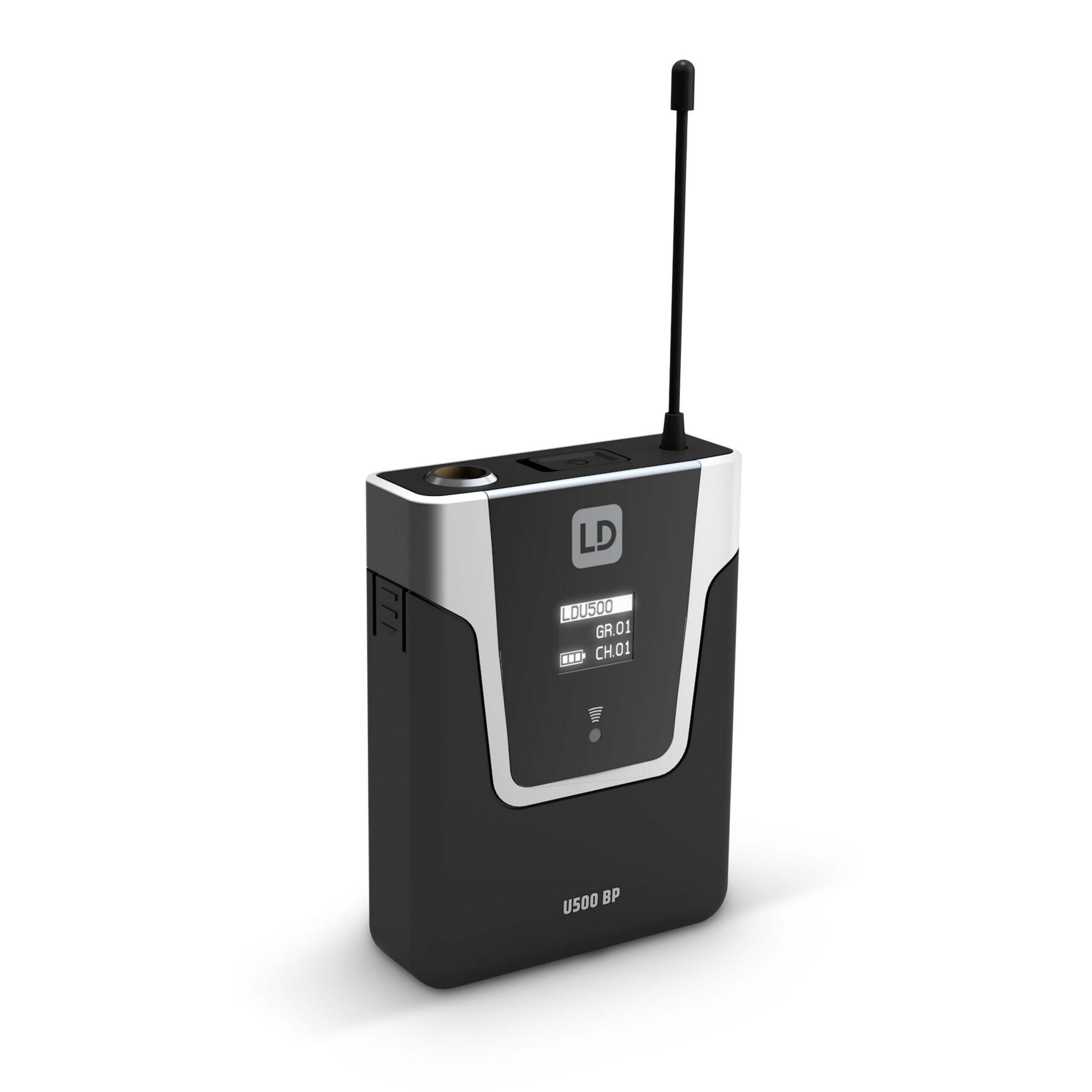

LD Systems U505 BP U500 Series Bodypack Transmitter, 584-608 MHz

We have developed the U500 Series and incorporated some of your suggestions to provide sophisticated and affordable wireless systems that are tailored to suit the needs of professional users. Whether for voice, instruments or as a wireless conference system, sets from the U500 Series will meet your expectations of quality sound, reliability and ease of operation. With automatic channel scanning, convenient infrared synchronization, intuitive menu navigation and an easily-readable OLED display featuring battery status indicator and user name assignment, the U500 Series True Diversity UHF radio systems are ready to use in an instant. The selectable transmit power of up to 30 mW and squelch control with pilot tone ensure optimum audio and transmission quality without artefacts and a free-field range of over 100 m.

Key Features

• True naversity UHF wireless system
• Shock-mounted dynamic and condenser microphone capsules
• Automatic channel scan
• Easy one-touch infrared frequency syncing
• Pilot tone squelch circuit prevents noise
• Switchable RF transmitter output (2, 10 or 30 mW)
• Rugged enclosures
• High-contrast OLED display

Technical Specifications

Product type
Wireless Microphone System Accessories
Type
Bodypack
Transmission frequency range
584 – 608 MHz
Channels
96 (8 groups of 12 channels)
Groups
8
Inputs
Mini-XLR (3-pin)
Frequency response
30 – 16000 Hz
Signal-to-noise ratio
>90 dB
Rated HF output power
Variable (2mW, 10mW, 30mW)
Controls
2 x arrow keys (up/down value entry), Power On/Off, Set
Indicators
OLED Display
Operating voltage
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Width
65 mm
Height
86 mm
Depth
23 mm
Weight
0,09 kg
Other features
detachable antenna, IR frequency synchronization, Pilot tone squelch, switchable gain, switchable gain, switchable RF power
