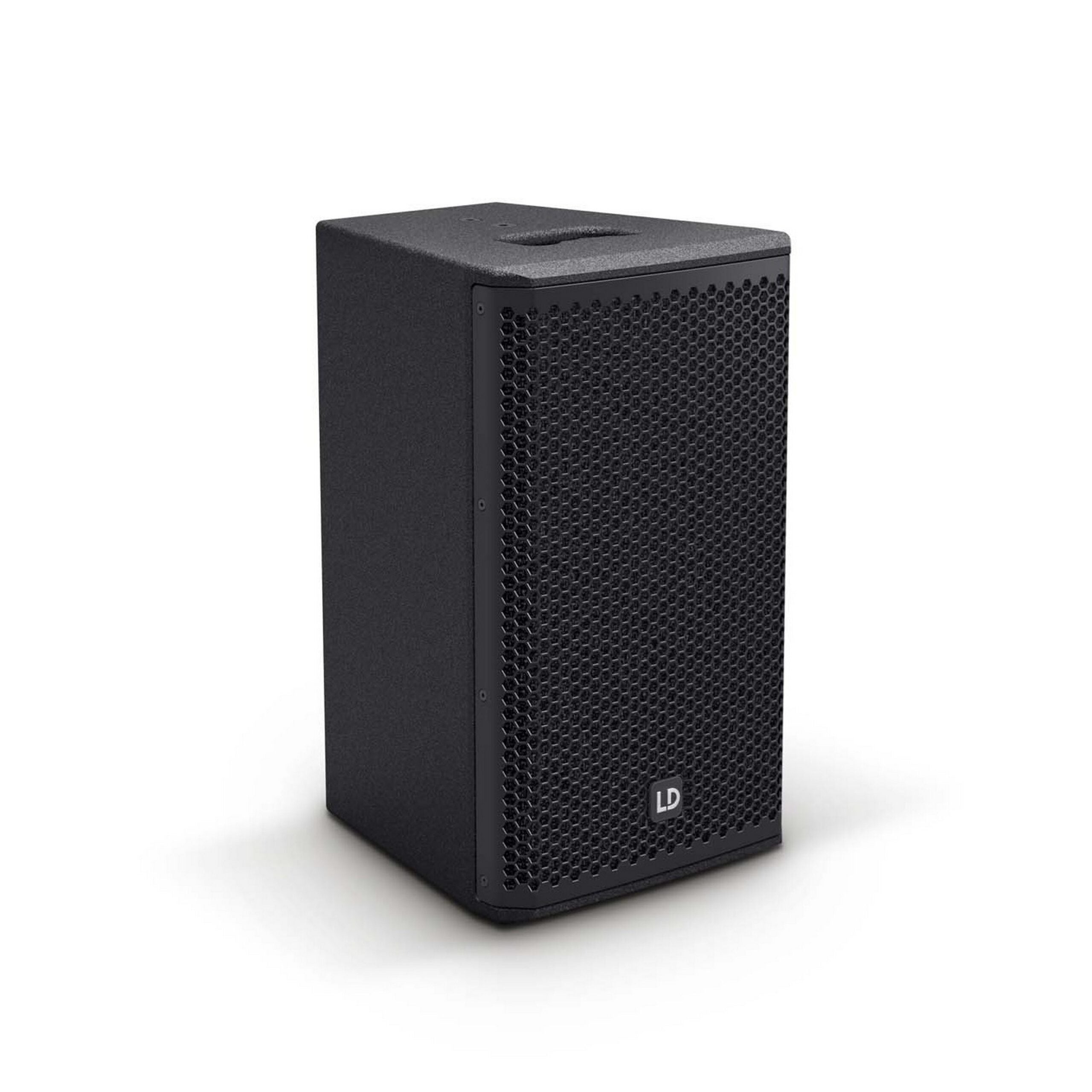

LD Systems STINGER 8 A G3 Active 8 Inch 2-Way Bass-Reflex PA Loudspeaker

Engineered for rock-solid reliability day in, day out this active 2-way system is a truly professional performer. With its multi-purpose bass reflex construction and carefully contoured, user-friendly presets it is equally suitable for fullrange, satellite or floor monitor applications. The Stinger 8 A G3 is powered by high efficiency Class D amplification with a hefty 300 watts RMS output. It drives a custom designed 8” woofer and BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern. The Stinger 8 A G3 incorporates LD Systems’ proprietary DynX DSP technology to ensure top-level performance with maximum clarity and punch at all times. Processing includes crossover and multiband limiter functions for accurate time alignment and pristine, distortion-free audio. Designed to be a real workhorse throughout, the enclosure is made of rigid birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points and ergonomic handles the Stinger 8 A G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.

Key Features

• 2-way active 8” bass reflex PA speaker
• High-efficiency 300 watts RMS digital power stage and 129 dB max. SPL
• Multi-purpose design for fullrange, satellite and monitor applications
• Application presets for quick frequency response contouring
• BEM optimized HF waveguide for uniform coverage
• 8” custom woofer and BMS compression driver
• DynX DSP technology for distortion-free performance
• 2 line/mic input channels with innavidual gain controls plus mono mix out
• 12 mm birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
• Shock-resistant front grill provides maximum speaker protection
• 36 mm Dual-Tilt pole receptacle for 0 or 5 mounting angles
• Large selection of smart installation and transport accessories

Technical Specifications

Product type
PA loudspeaker
Type
active
Low/mid driver dimensions
8”
Woofer size
203.2 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
2”
Woofer voice coil (mm)
50.8 mm
Horn
BEM optimized CD Horn
HF driver dimensions
1”
HF Driver Size
25.4 mm
HF driver magnet
Ferrite
HF driver brand
BMS
HF driver voice coil
1”
HF Driver Voice Coil
25.4 mm
Amplifier
Class D
Dispersion (H x V)
90 x 50
RMS
300 W
Peak power
600 W
Frequency response
70 – 20000 Hz
Max. SPL (peak)
125 dB
Protection circuits
Multiband limiter , over voltage , over-current , thermal overload
Input sensitivity
-9 dBu
Controls
2 x gain , 2 x Mic/Line , Mode
Indicators
Limit , Mic , Mode , On , Protect (protection circuit engaged) , Signal
Line inputs
2
Line input connectors
6.3 mm jack , XLR
Line outputs
1
Line output connectors
XLR
Operating voltage
100 – 120 V / 50 – 60 Hz or 200 – 240 V / 50 – 60 Hz (automatic switching) , Switching power supply
Operating Temperature
0 – 40 C
Relative Humidity
< 80% (non-condensing)
Cabinet material
12 mm Plywood
Cabinet surface
Polyurea
Cabinet construction
Bass Reflex
Width
270 mm
Height
457 mm
Depth
290 mm
Weight
10,5 kg
