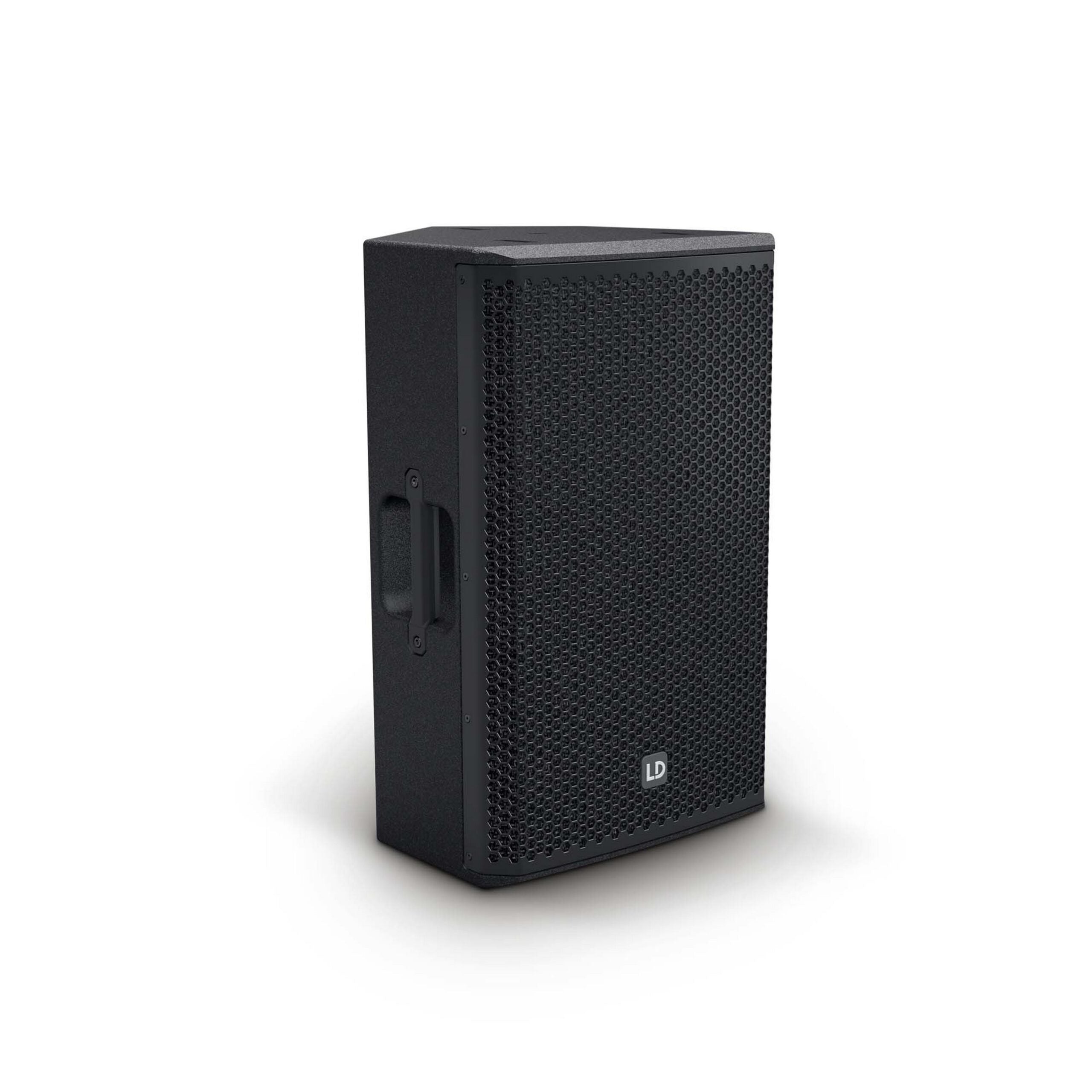

LD Systems STINGER 12 G3 2-Way Passive 12 Inch Bass Reflex PA Loudspeaker

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The Stinger 12 G3 provides 400 watts of continuous power; the maximum sound pressure level is 125 dB. Its specially developed 12″ woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The Stinger 12 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers an exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The Stinger 12 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.

Key Features

• 2-way passive 12” bass reflex PA speaker
• 400 watts RMS power handling
• 125 dB maximum SPL
• 12“ custom woofer and BMS compression driver
• BEM optimized HF waveguide for uniform coverage
• Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
• Shock-resistant front grill provides maximum speaker protection
• 36 mm Dual-Tilt pole receptacle for 0 or 5 mounting angles
• Large selection of smart installation and transport accessories

Technical Specifications

Product type
PA loudspeaker
Type
passive
Low/mid driver dimensions
12”
Woofer size
304.8 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
2.5”
Woofer voice coil (mm)
63.5 mm
Horn
BEM optimized CD Horn
HF driver dimensions
1”
HF Driver Size
25.4 mm
HF driver magnet
Ferrite
HF driver brand
BMS
HF driver voice coil
1”
HF Driver Voice Coil
25.4 mm
Dispersion (H x V)
90 x 50
Load rating (RMS)
400 W
Peak power
800 W
Frequency response
58 – 20000 Hz
SPL (1W/1m)
99 dB
Max. SPL
125 dB
Impedance
8 Ohm(s)
Protection circuits
HF Driver
Loudspeaker inputs
1
Speaker input connections
Speakon compatible
Loudspeaker outputs
1
Speaker output connections
Speakon compatible
Speakers per amplifier channel (DSP44/45K)
3
Cabinet material
15 mm Plywood
Cabinet surface
Polyurea
Cabinet construction
Bass Reflex
Monitor angle
54
Width
390 mm
Height
627 mm
Depth
377 mm
Weight
19,4 kg
