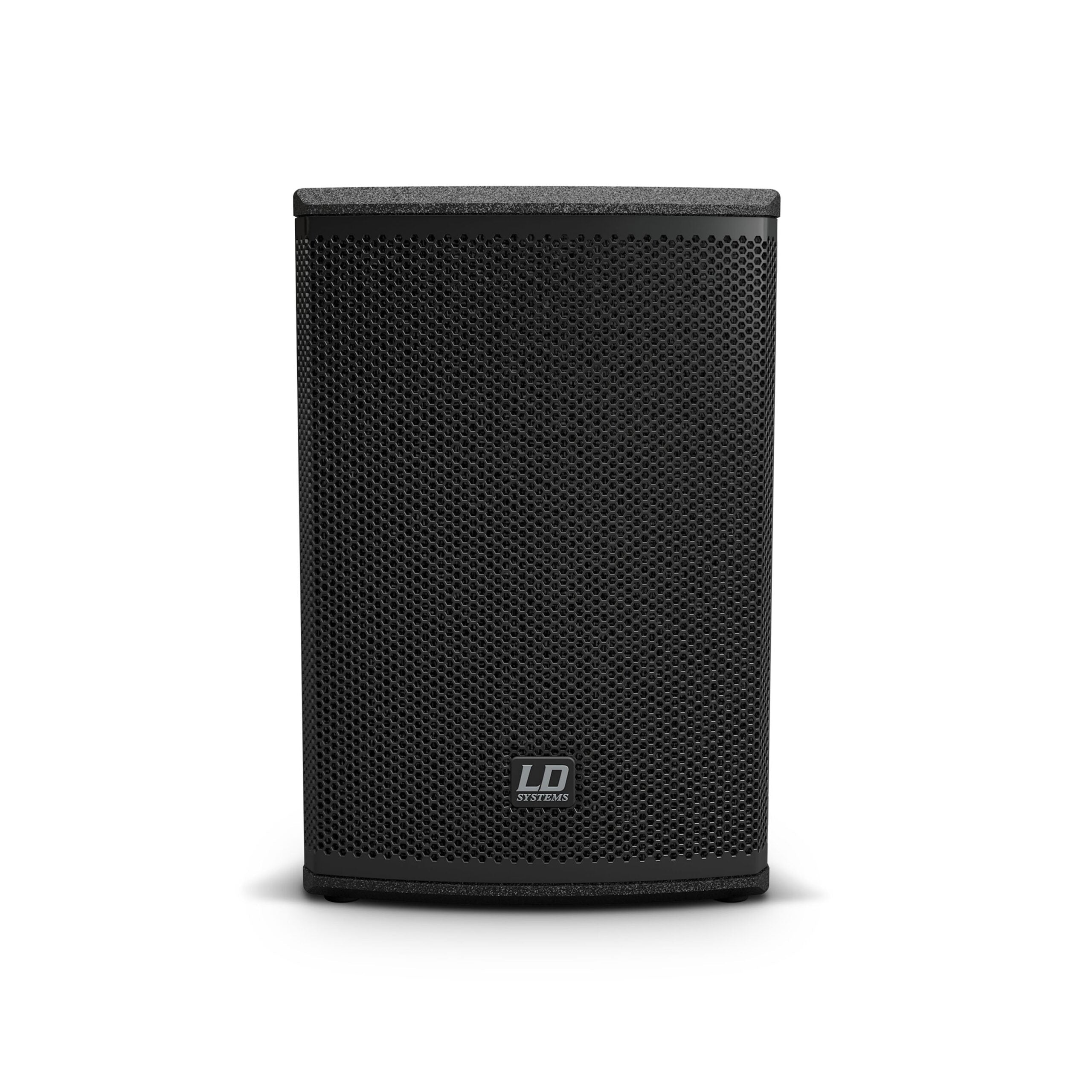

LD Systems MIX 6 2 G3 6.5 Inch Passive 2-Way Slave Loudspeaker

This passive 2-way loudspeaker has been designed as a companion to the active MIX 6 A G3 for small-scale PA and personal monitoring applications. It features the same 10” custom woofer and 1” HF driver complement, 80 Hz to 20 kHz frequency response and 80 x 70 dispersion delivering crystal clear sound with punch and detail. The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. In a master-and-slave setup with the active unit, the MIX 6 G3 provides amazing performance and versatility in a lightweight, easily portable package.

Key Features

• Passive 2-way loudspeaker
• 280 watts peak power handling
• Tight and punchy bass reflex design
• 6.5” woofer and 1” HF driver, 80 Hz – 20 kHz
• 2 pole mount inserts for vertical and horizontal orientation
• Ideal as slave unit to LD Systems MIX 6 A G3

Technical Specifications

Product type
PA loudspeaker
Type
passive
Low/mid driver dimensions
6.5”
Woofer size
165.1 mm
Woofer brand
Custom-made
HF driver dimensions
1”
HF driver size
25.4 mm
HF driver brand
Custom-made
Dispersion (H x V)
80 x 70
Load rating (RMS)
70 W
Peak power
280 W
Frequency response
80 – 20.000 Hz
SPL (1W/1m)
90 dB
Max. SPL
117 dB
Impedance
4 Ohm(s)
Protection circuits
ICL (Intelligent Clip Limiting), over-current, overload, short circuit, thermal overload
Loudspeaker inputs
1
Speaker input connections
6.3 mm jack
Loudspeaker outputs
6.3 mm jack
Cabinet material
MDF
Cabinet surface
texture paint
Cabinet construction
Bass Reflex
Width
214 mm
Height
323 mm
Depth
221 mm
Features
2 x 16 mm pole mount socket
Weight
4,4 kg
