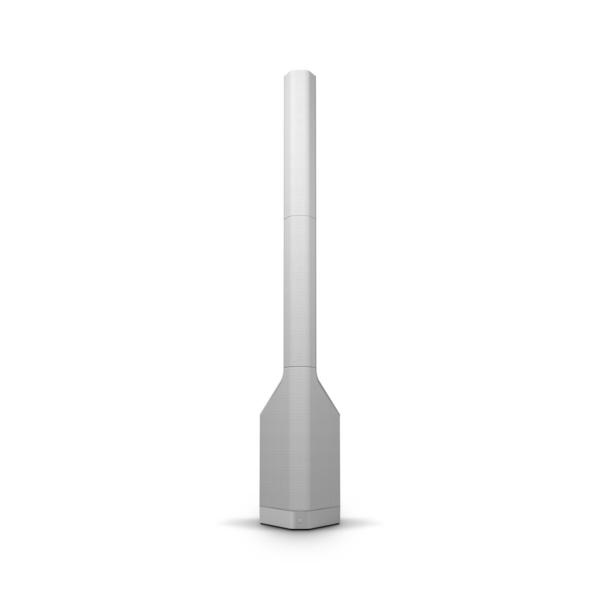

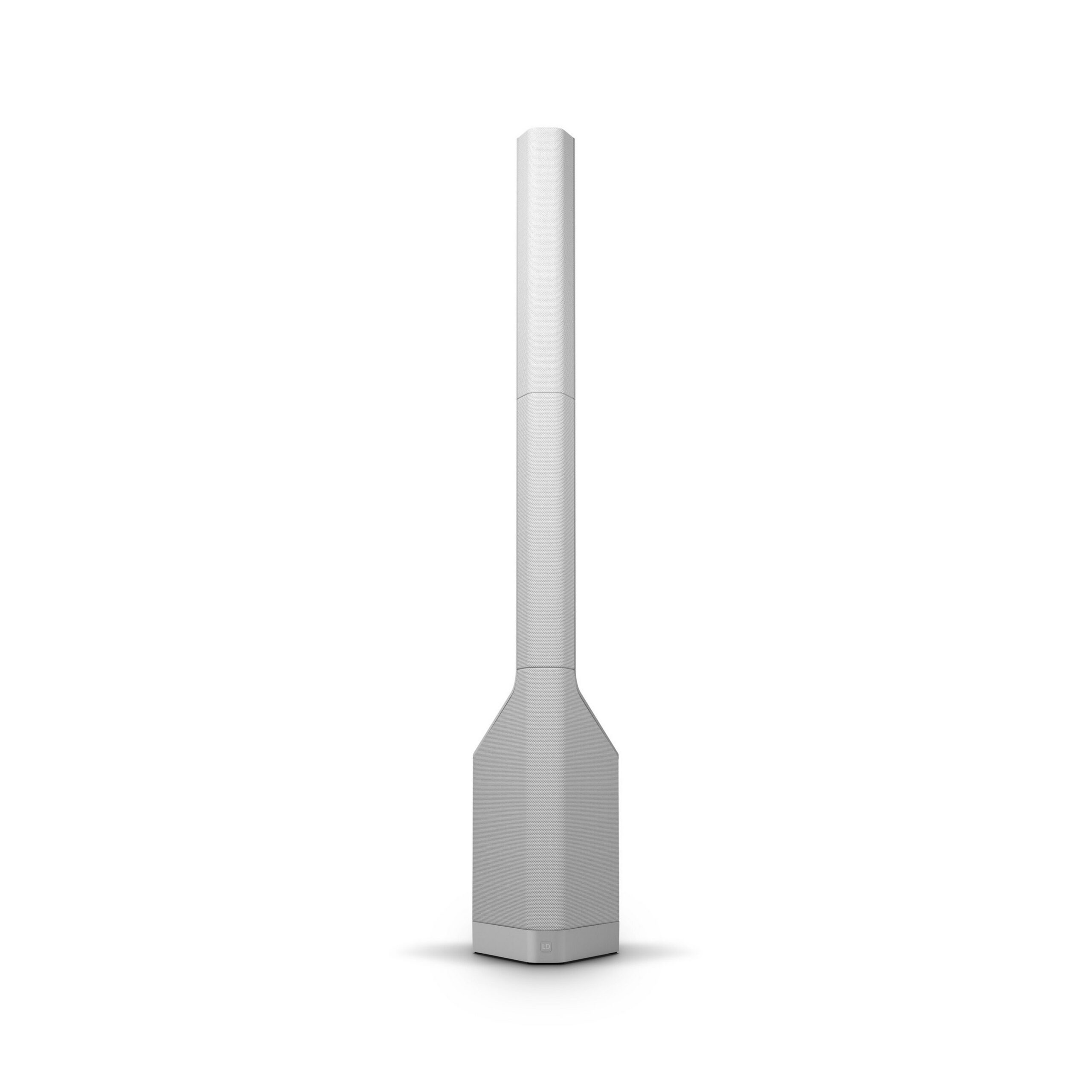

LD Systems MAUI P900 W Porsche Design Studio Powered Column PA System, White

Developed in collaboration with Porsche Design Studio, the LD Systems MAUI P900 provides excellent reproduction clarity and outstanding high-definition sound. Combining state-of-the-art audio technology and eye-catching elegance, the MAUI P900 is the perfect choice when your live events and installation environments call for stellar sonic performance and style. With a total of 50 neodymium transducers and 1,400 watts RMS of class D power, this groundbreaking column system delivers a maximum sound pressure of 131 dB and 42 to 20,000 Hz frequency response.

Key Features

• Powered column PA system for live events and install
• Award-winning design by Porsche Design Studio
• Durable aluminium body
• 1,400 watts RMS system power and 131 dB maximum SPL
• 50 premium transducers for monumental clarity
• SonicGuide and WaveAhead technology for coherent wavefront
• DynX DSP for distortion free sound
• aptX and AAC coding for HD Bluetooth streaming
• TrueWireless Stereo for wireless stereo pairing

Technical Specifications

Product type
PA Complete Systems
Type
active
Colour
Cocoon White
Max. SPL (continuous)
121 dB
Max. SPL (peak)
131 dB
Frequency response
42 – 20.000 Hz
Dispersion (H x V)
140 x 15
Total Height
2173 mm
Weight
46 kg
Features
Bluetooth Audio Streaming , DSP-based Signal Processing , Excellent Sound Dispersion , Mono/ Stereo Application
Subwoofer
Woofer dimensions
2 x 10″
Woofer size
2 x 254 mm
Woofer magnet
Neodymium
Woofer brand
Custom-made
Woofer voice coil
3″
Woofer voice coil (mm)
76.2 mm
Cabinet construction
Bass Reflex
Housing material
15 mm Plywood
Cabinet surface
HD coated aluminum , multi layer mesh (cloth)
Dimensions Subwoofer (W x H x D)
400 x 745 x 470 mm
Subwoofer weight
30.6 kg
Mid/Hi System
Midrange size
16 x 2.8 “
Midrange size
16 x 71,1 mm
Midrange magnet
Neodymium
Midrange brand
Custom-made
Midrange voice coil
0.75 “
Midrange voice coil
20 mm
Tweeter dimensions
32 x 1 “
Tweeter dimensions (mm)
25.4 mm
Tweeter magnet
Neodymium
Tweeter brand
Custom-made
Tweeter voice coil
1 “
Tweeter voice coil (mm)
25.4 mm
Wave Guide
SonicGuide Technology
MF / HF Transducer Arrangement
Patented WaveAhead Technology
Loudspeaker inputs
1
Speaker input connections
Custom-made multipin
Cabinet construction mid/high
Closed
Mid/Hi system cabinet material
Aluminum
Mid/Hi system cabinet surface
HD coated aluminum , multi layer mesh (cloth)
Mid/Hi system width
157 mm
Mid/Hi system height
1428 (2 x 714) mm
Mid/Hi system depth
91 mm
Mid/Hi system weight
2 x 7.7 kg
Amplifier module (integrated in subwoofer)
Amplifier
3 x class D
System output (RMS)
1400 W
System output (Peak)
2800 W
Protection circuits
DC protection , Multiband limiter , short circuit , thermal protection
Cooling
Convection
Controls
Bluetooth HOLD TO LINK button , Bluetooth STEREO LINK button , Main level , Power On/Off , Sub level
Indicators
Bluetooth , Bluetooth STEREO LINK , Limit , Power , Protect (protection circuit engaged) , Signal
Mains connector
IEC power cable (included)
Operating voltage
100 V AC – 120 V AC, 50 – 60 Hz , 200 V AC – 240 V AC, 50 – 60 Hz (Automatic conversion) , Switching power supply
Power Consumption (On / Off / Max.)
0 W / 11 W / 1000 W
Ambient temperature (operating)
0 – 40 C
Relative Humidity
10 % – 80 %
Line Inputs
1 x stereo
Line Input Connectors
Neutrik XLR
Line Outputs
1 x Stereo Thru
Line Output Connectors
Neutrik XLR
Number of speaker outputs
1
Loudspeaker Output Connectors
Custom-made multipin
Bluetooth Standard
A2DP
Bluetooth Audio Decoder
AAC , aptX , SBC
DSP characteristics
Bit depth AD/DA converter
24 bit
Sampling frequency
48 kHz
Signal-to-noise ratio
106 dB
