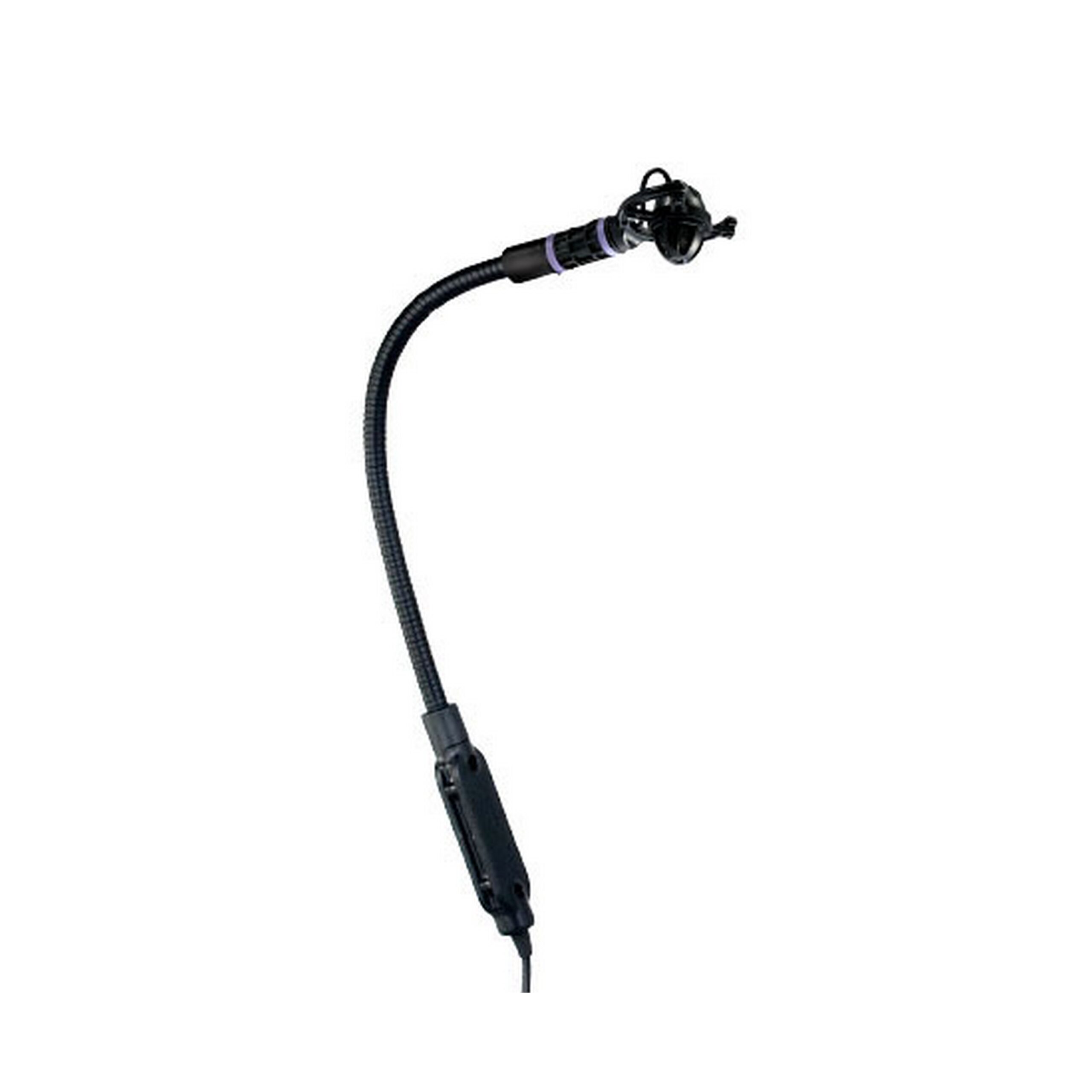

JTS CX-516 Miniature Unidirectional Condenser Instrument Microphone

The JTS CX-516 is a high-quality, miniature unidirectional condenser microphone designed for studio recording, broadcasting, and sound reinforcement. Its wide frequency response and low noise characteristics have made it a standard for use with acoustic string instruments: violins, cellos, as well as woodwind instruments, accordion, and organ (Leslie) cabinets. The tailored sound characteristics, superb transient response allows detailed transparent reproduction of the sound source. The mini flexible gooseneck design provides quick pinpoint miking via the built-in mounting clip.

Technical Specifications

Type
Uni-directional Condenser
Frequency Response
30~18,000 Hz
Sensitivity (at 1,000Hz)
-65dB*(0.56mV) *0dB=1V/μbar
Impedance
220Ω
Max. SPL for 1% T.H.D.
130 dB
Signal-To-Noise Ratio
70 dB
Output Connector
XLR-(M) type (power module)
Phantom Power Requirements
9-52 VDC
Current Consumption
≤ 3mA
Weight
150 grams (5.29oz)
Dimensions
245mm x30mm
