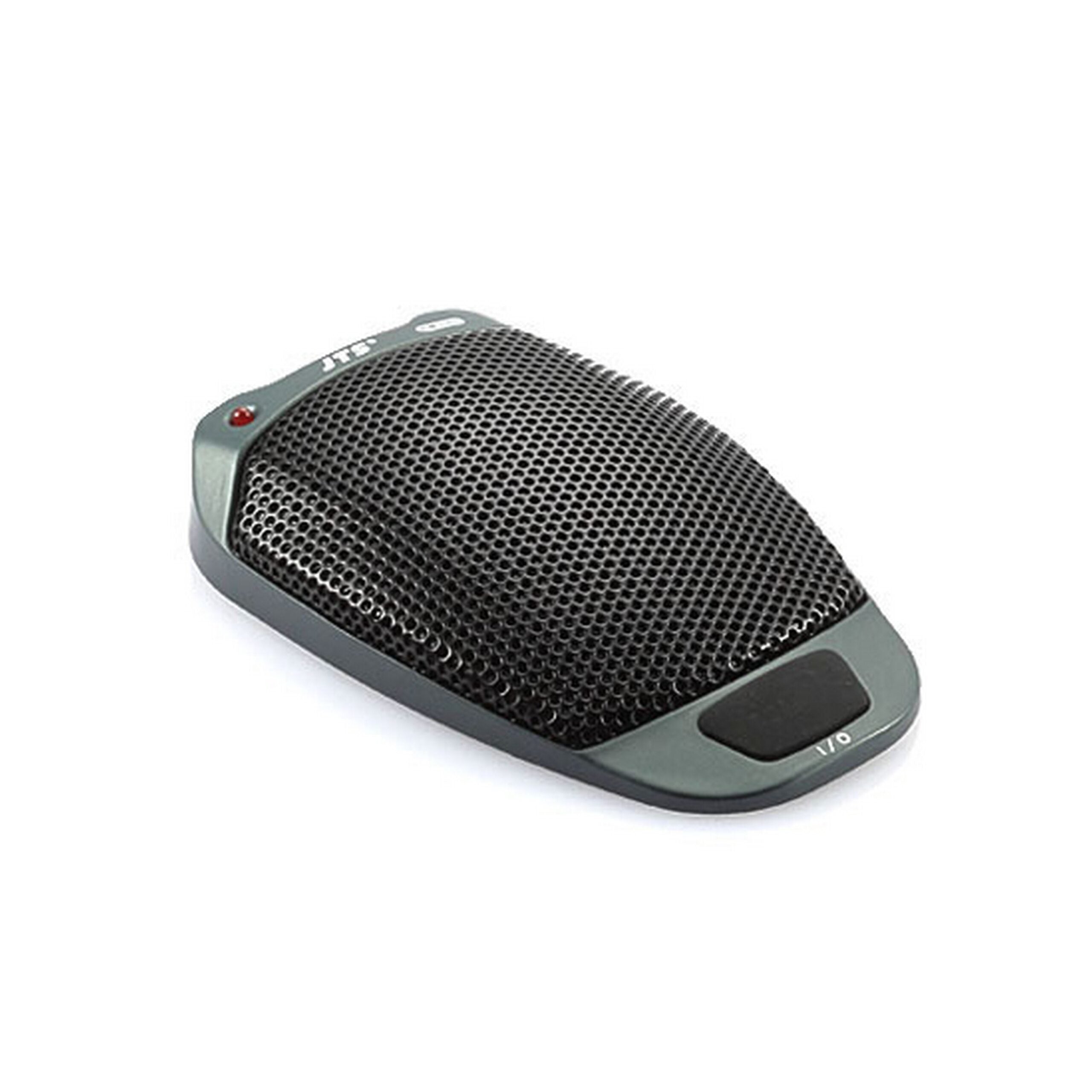

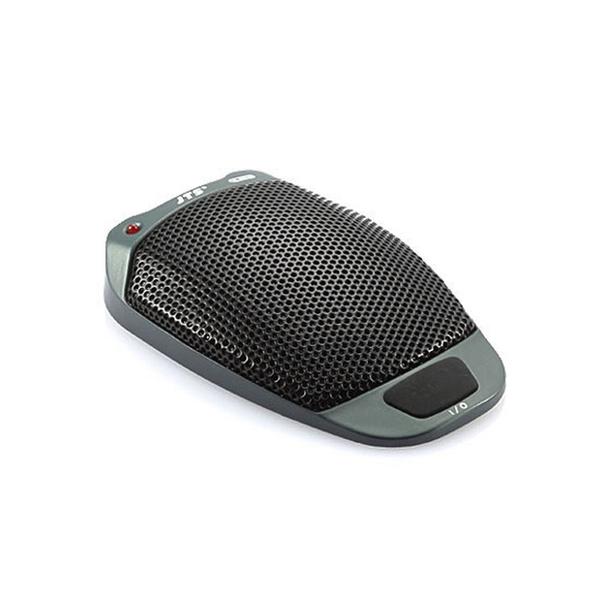

JTS CM-601 Boundary Semi-Cardioid Condenser Microphone

The CM-601 is a semi-cardiod Electret boundary microphone. features Configurable push-button (Push to Talk, Push to Mute or switching function) Standby LED. Elastic cartridge suspension for preventing impact sound and structure-borne noise. For theatrical performances, discussions, conferences and in churches. Requires Phantom power supply DC 48 V. Supplied With 6 m connection cable, 3-pole XLR.

Key Features

• The CM-601 is designed for conference, house of worship, and theater applications.
• The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule.
• The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF, PUSH TO TALK and PUSH TO MUTE three modes.
• The precisely calculated circuit plus tailored capsule response ensures transparent sound quality.
• Internal shock mount minimizes mechanical noise.

Technical Specifications

Type
Electret Condenser
Frequency Response
30~12,000 Hz
Sensitivity (at 1,000Hz)
-53±3 dB(2.23mV) 0dB=1V /μbar
Directional Pattern
Half-Cardioid
Impedance
100Ω
Max. SPL for 1% THD
125 dB
Signal-To-Noise Ratio
67dB
Power Supply
12-52 VDC phantom power
Current Consumption
≤6mA
Output Connector
3P Mini XLR-M type (power module)
Net Weight
88 grams
Low Frequency Roll-off
80Hz, 120Hz
Switches
Push control: on/off
Function selection: push on/off, momentary on/off
Low cut: low frequency roll-off
