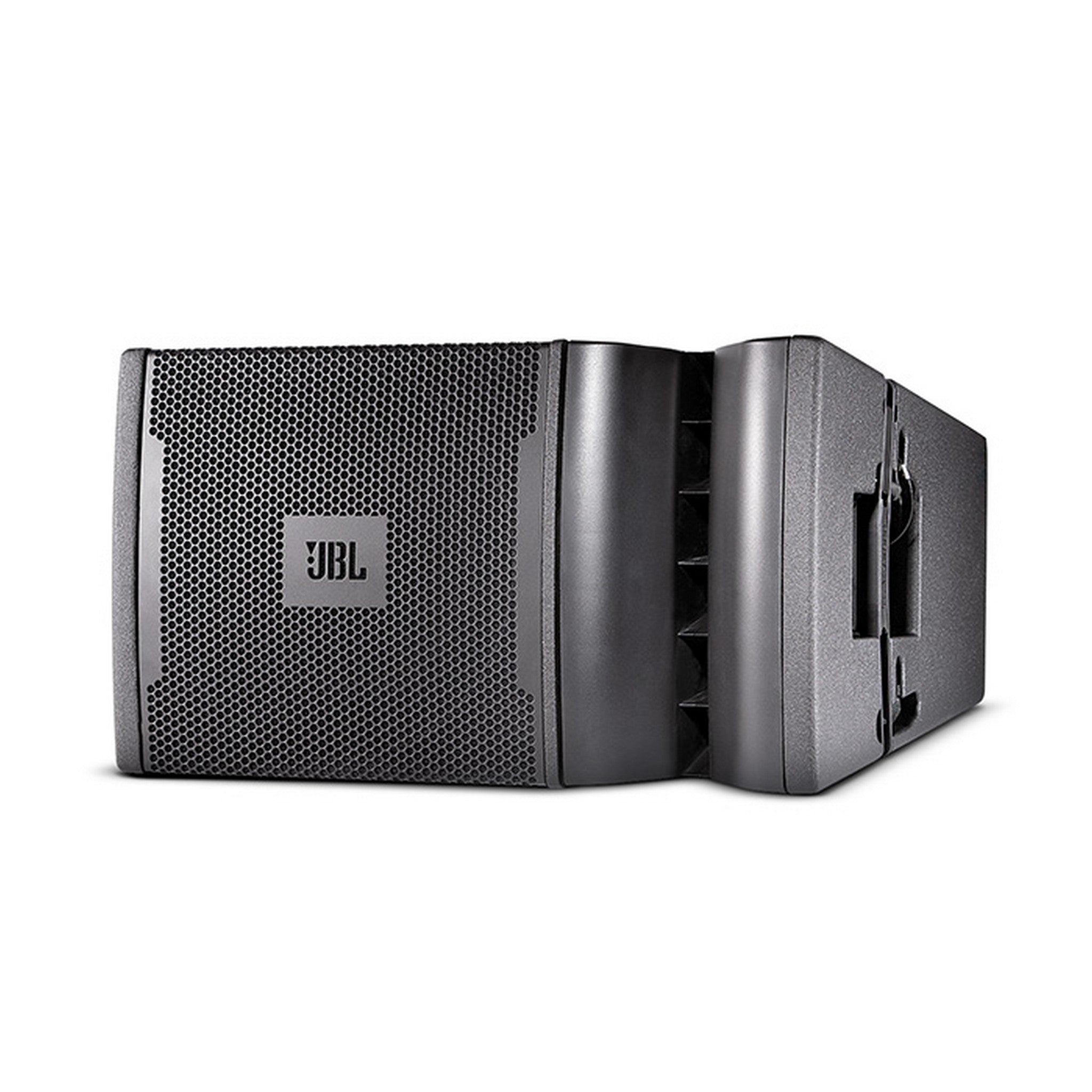

JBL VRX932LAP 750W 12-Inch 2-Way Powered Line Array Loudspeaker System

Experience unparalleled audio quality with the JBL VRX932LAP, a sophisticated 12-inch two-way line array loudspeaker that combines innovative technology with exceptional performance. Designed for professional audio applications, this loudspeaker integrates JBL’s advanced Differential Drive technology to deliver high-output, precise sound reproduction while maintaining a compact and lightweight form. Ideal for both portable and permanent installations, the VRX932LAP provides clear, consistent sound coverage across large areas, making it an excellent choice for concerts, live events, and fixed installations where superior audio fidelity is crucial.

With its robust build and versatile mounting options, the JBL VRX932LAP is engineered to meet the demanding requirements of professional sound engineers and audio technicians. The loudspeaker features a high-power handling capacity and integrates seamlessly with other VRX Series components, ensuring a cohesive audio experience in any setting. Its durable construction and user-friendly design make it a reliable choice for achieving top-quality sound performance in various acoustic environments.

Key Features

• 12-inch two-way loudspeaker with advanced Differential Drive technology
• High power handling capacity and lightweight design for easy transport
• Integrated digital amplifier for enhanced sound quality and reliability
• Versatile mounting options including VRX-AF frame kit and pole mount cup
• Durable construction with Black DuraFlex™ finish and perforated steel grille

Technical Specifications

Power Rating
1750 Watts Peak, 875 Watts Continuous
Frequency Range (-10dB)
57 Hz – 20 kHz
Dimensions (H x W x D)
349 mm x 597 mm x 444 mm (13.75 in x 23.5 in x 17.5 in)
Frequency Response
75 Hz – 20 kHz (+/-3dB)
Maximum SPL (1m)
136 dB SPL
Coverage Pattern
100° x 15° nominal
DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance)
LF: 750 Watts, HF: 125 Watts
DPC-2 Output Section
LF: Dual-Bridged Technology™, Class D
Inputs
XLR with loop through
LF Driver
1 x JBL 2262FF 305 mm (12 in) neodymium magnet
HF Driver
3 x JBL 2408J, 38 mm (1.5 in)
User Controls
Input Attenuator (0-16 dB)
Signal Processing
DSP based, resident in Input Module
AC Power Operating Range
90-132 VAC or 216-264 VAC, 50/60 Hz
AC Input Connector
Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector
Neutrik PowerCon (NAC 3MPB)
AC Current Requirements
6A per system at 120V, 3A per system at 240V
Enclosure
25/15 mm, 11-ply birch plywood
Suspension / Mounting
Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
Finish
Black DuraFlex™ finish
Grille
Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
Net Weight (each)
24 kg (52 lb)
Optional Accessories
VRX-AF: Suspension array frame
Outputs
1 x XLR
System Type
Constant Curvature 12″ Two-Way Powered Line Array System
Nominal Impedance
NA – amplification is integrated
