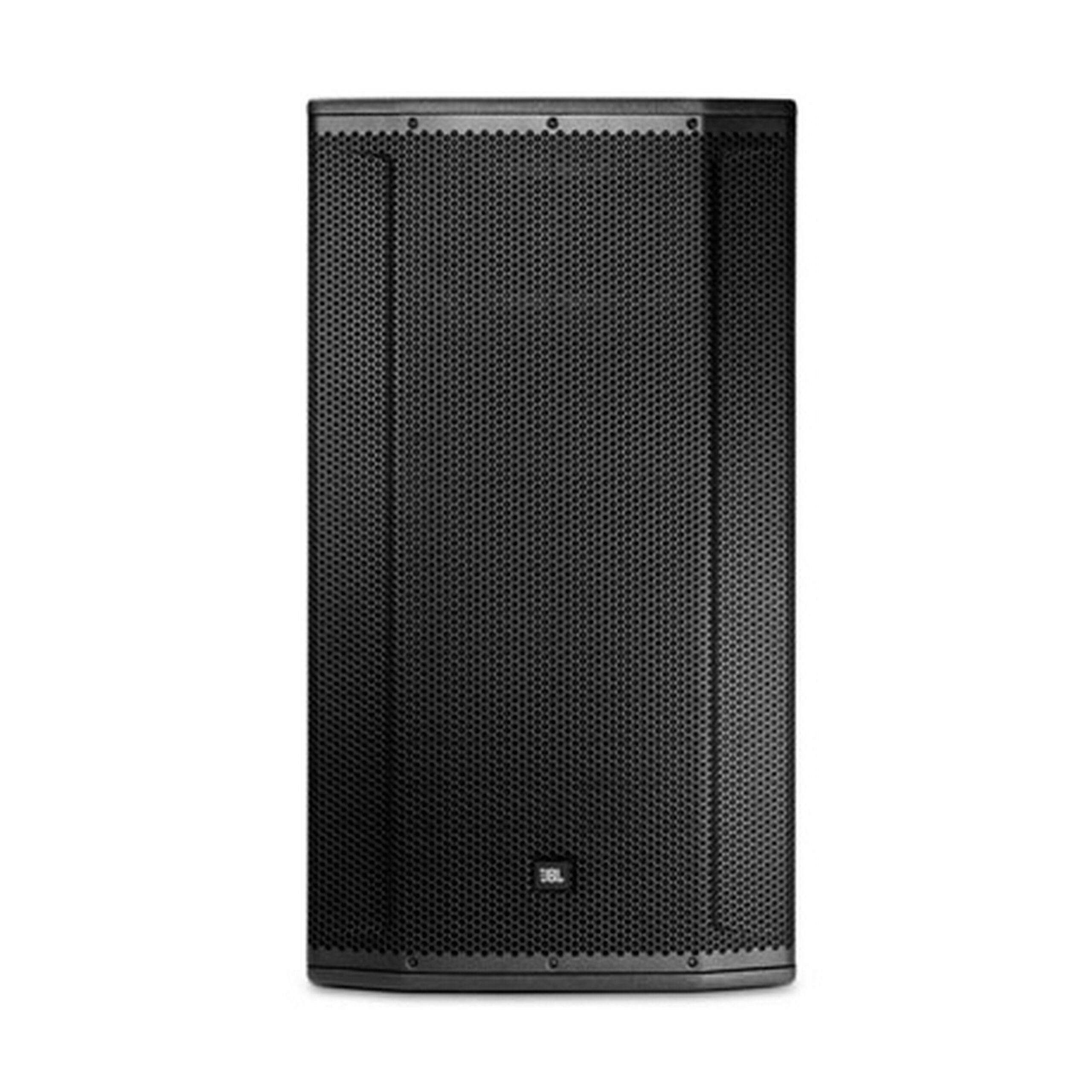

JBL Professional SRX835 15-Inch 3-Way Bass Reflex Passive System

SRX835 is a three-way full range speaker with a 15” woofer made for use as a medium duty main PA, or rear or side fill. Featuring M10 suspension points, a standard 35mm pole cup and feet for both floor standing and subwoofer standing use, the SRX835 is an ideal solution for musicians, bands, and DJs, concert use, public speaking or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.

Key Features

• Premium JBL Transducers
• Rugged, versatile enclosures
• Tunings available for Crown amps and dbx signal processors
• Fully supported in Audio Architect
• Power Handling: 3200W Peak, 1600W Program, 800W Continuous
• Frequency Range: 32Hz-20kHz
• Frequency Response: 43Hz-20kHz
• Max SPL: 130dB (Peak)
• Coverage Pattern: 60×40
• Amplification options: Passive/Bi-Amp

Technical Specifications

System Type
Passive 15”, three-way, bass-reflex
Maximum SPL Output
124dB (Continuous), 130dB (Peak)
Frequency Range (-10dB)
32hz – 20khz
Frequency Response (- 3dB)
43Hz – 20Hz
Sensitivity (1W/1m)
95dB
System Power Rating
3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance
8 Ohm
Connectors
NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes
Passive/Bi-Amp
LF Driver
2275F
MF Driver
2107H
HF Driver
2432H
Coverage Pattern
60 x 40
Crossover Frequency
330hz & 2.4khz
Enclosure Material
18mm plywood
Suspension/Mounting
Single 36mm pole socket, 12 x M10 Suspension points
Handles
2
Finish
Obsidian Duraflex finish
Grille
Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (L x W x H)
18.74″ x 21.4″ x 38.74″ (476mm x 544mm x 984mm)
Weight
95.0 lbs (43.1kg)
