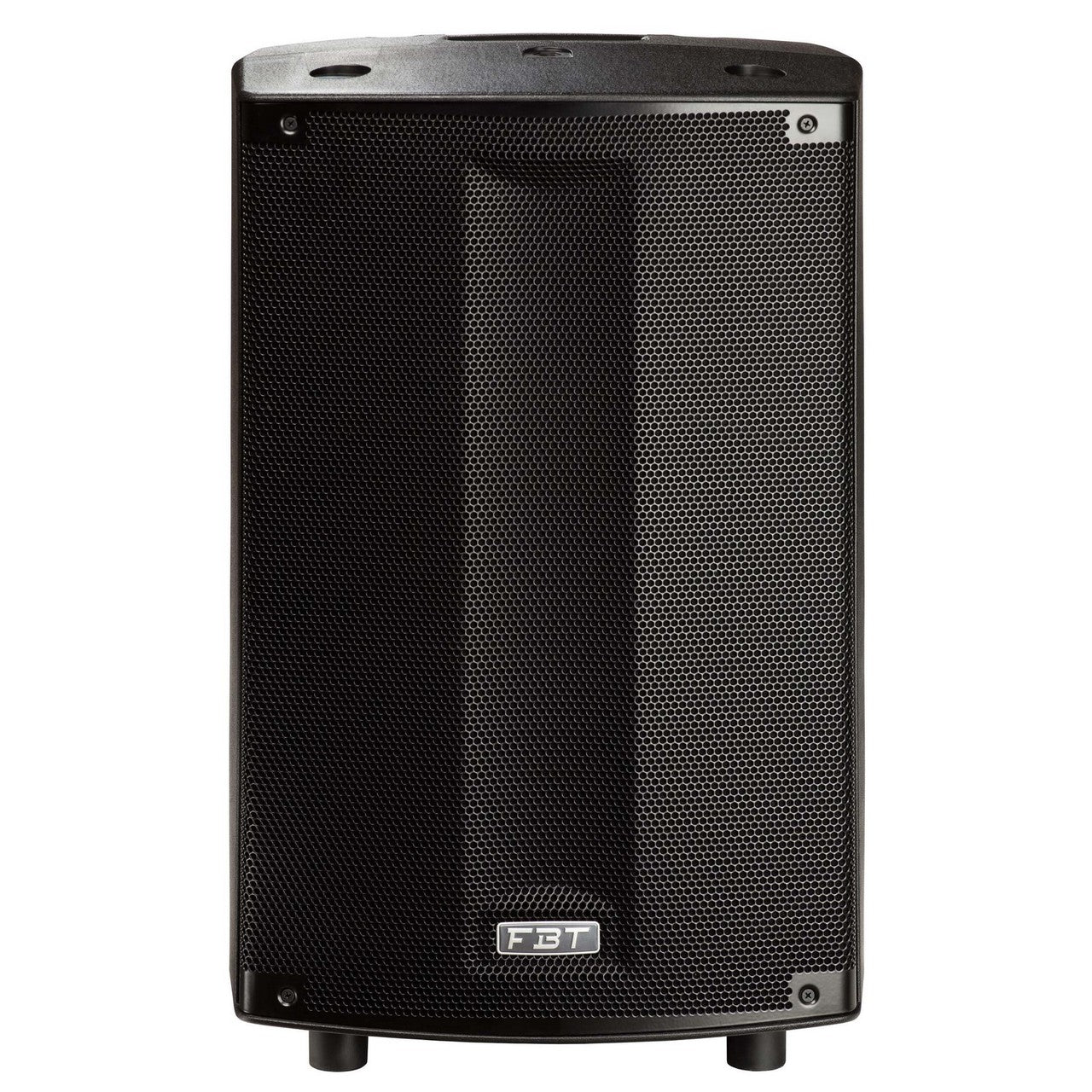

FBT PromaxX114a 900W 2 Way Processed Active Speaker

Equipped with custom FBT speakers complete with B&C’s renowned compression driver technology, PROMAXX combines true made-in-Italy quality and style. At its heart is a purpose-built FBT amplifier module with a switch-mode power supply. For the low frequency section, 700W RMS is driven via a highly efficient Class-D topology, boasting extremely low THD. For HF, meanwhile, 200W RMS is delivered by a Class-H / AB design chosen to ensure the highest definition of audio performance at high frequencies.

Key Features

• 2-way, bi-amplified, bass reflex design cabinet
• Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
• Digital signal processor with graphic display
• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
• 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
• 90°H x 60°V constant directivity horn
• Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles

Technical Specifications

Code
40603
Configuration
2 way
Built-in amplifier LF/HF
700/200 W RMS
Built-in amplifier peak LF/HF
1400/400 W
Frequency response
45Hz-20KHz -6dB
Low Frequency woofer
14 – 3 coil neodymium inch
High Frequency driver
1.4 – 2.5 coil inch
Maximum SPL cont/peak
127.5 / 135.5 dB
Dispersion
90° x 60° HxV
Input impedance
22 Kohm
AC Power requirements
IEC VA
Input connector
XLR with loop, RCA ST
Power cord
5/16.4 m/ft
Net Dimension (WxHxD)
402x644x345 / 15.8×25.4×13.6 mm/inch
Net Weight
17.5/40.78 Kg/lb
Transport Dimension (WxHxD)
500x745x440 / 19.7×29.3×17.3 mm/inch
Transport Weight
20.1/44.31 Kg/lb
