FBT MUSE 118FSA 1200W 18 Inch Processed Cardioid Flyable Active Subwoofer Free Shipping Order

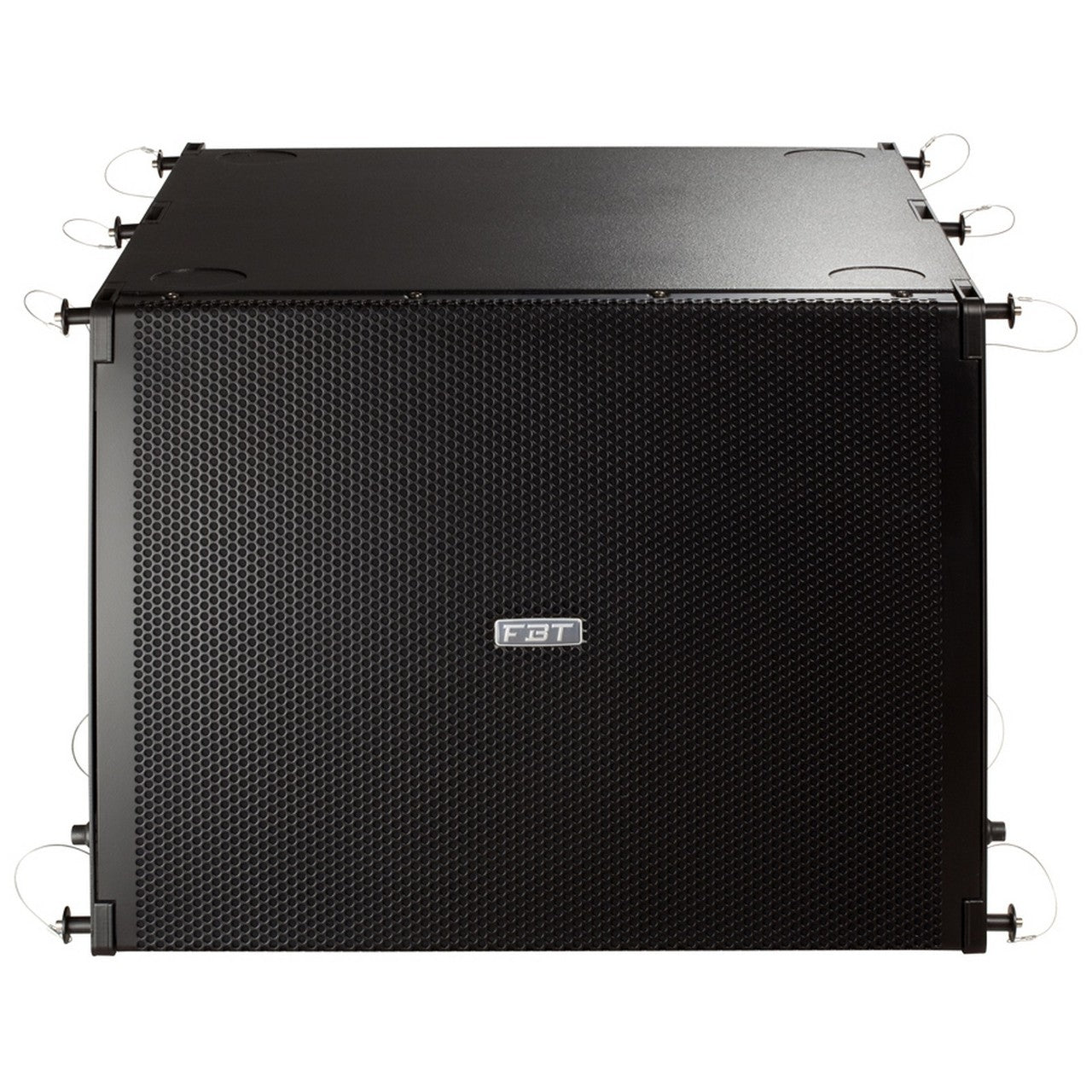

FBT MUSE 118FSA 1200W 18 Inch Processed Cardioid Flyable Active Subwoofer

The FBT MUSE 118FSA/FSCApowered subwoofer meet the following performance criteria: frequency response of 33Hz to 100Hz, Spl cont/peak of 135/139dB half-space. The FBT MUSE 118FSA/FSCAis a hybrid band-pass cardioid arrayable subwoofer design incorporating 1×18″ B&C neodymium magnet high excursion woofer with 3.5″ voice coil.

Key Features

• Compact Hybrid band pass cardioid-arrayable subwoofer. Hybrid configuration permit to obtain extension and speed of vented with high
• SPL and acoustic filtering of band pass
• Suspension hardware fully compatible with MUSE210La allowing the enclosure to be suspended front or rear-firing for easy cardioid configurations
• Subwoofer can be suspended facing forward or rearward and user-configurable with capability of front- or rear- mounting the grille and amp module for aesthetic uniformity in cardioid configuration.
• Very large area laminar-flow port to ensure no power compression and very low port turbulence
• For cardioid configurations with one SUB rear-firing and two sub front-firing, more than 15db SPL rejection can be obtained behind the array
• 18’’ (460mm) custom B&C neodymium magnet high excursion woofer with 3’’ (75mm) voice coil
• Frequency Response from 33Hz to 1Hz
• Class D amplifier delivering 1200WRMS

Technical Specifications

Code
39678/39713
Configuration
1 HYBRID BANDPASS way
Built-in amplifier LF/HF
1200 W RMS
Built-in amplifier peak LF/HF
2400 W
Frequency response
33Hz-100Hz -6dB
Low Frequency woofer
1X18 – 3.5 coil – neodymium inch
Maximum SPL cont/peak
135/139 half-space dB
Dispersion
Omnidirectional HxV
Input impedance
22 Kohm
Crossover Frequency
preset dependant KHz
AC Power requirements
640 VA
Input connector
XLR with loop
Power cord
5/ 16.4 m/ft
Net Dimension (WxHxD)
652x500x750 / 25.66×19.68×29.52 mm/inch
Net Weight
67/147.70 kg/lb
Transport Dimension (WxHxD)
700x650x800 / 27.55×25.59×31.49 mm/inch
Transport Weight
77/169.75 Kg/lb
